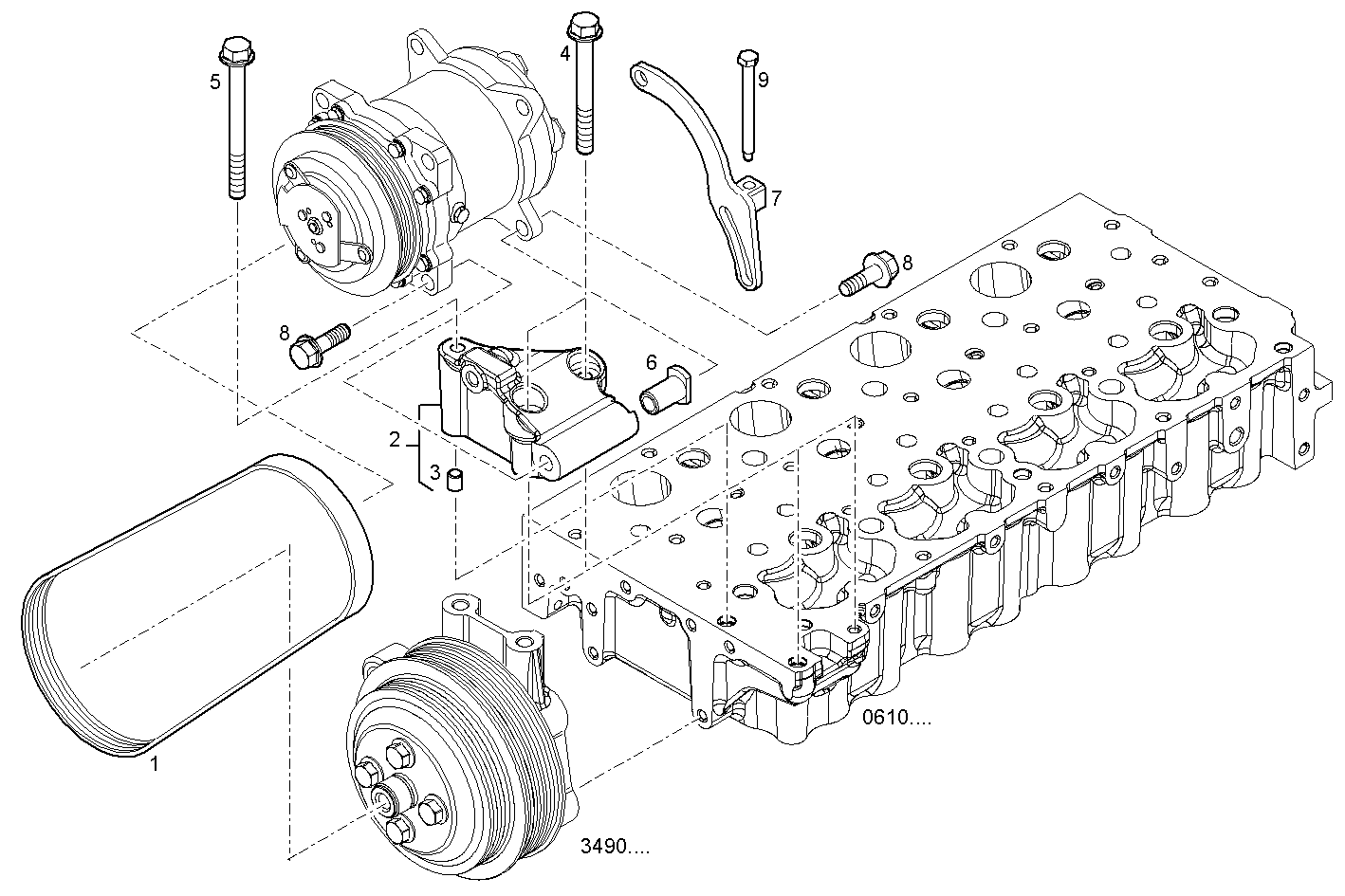

ACCESSORIES
Assembly ID: 8600.275
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504223518 | V-BELT | 1 | ||
| 2 | 504252081 | SUPPORT | 1 | ||
| 3 | 99435557 | DOWEL PIN | 2 | ||
| 4 | 16592324 | HEXAGON BOLT | 2 | ||
| 5 | 16592621 | SCREW | 2 | ||
| 6 | 98431043 | BUSH | 1 | ||
| 7 | 504252077 | TENSIONER | 1 | ||
| 8 | 16587224 | HEXAGON BOLT | 5 | ||
| 9 | 504010032 | SCREW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5CE9454E*A001 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A001 | F32 mechanic. - TIER 3 | view |
| F5CE9454E*A002 | F32 mechanic. - TIER 3 | view |
| F5CE5454B*A002 | F32 mechanic. - TIER 3 | view |
