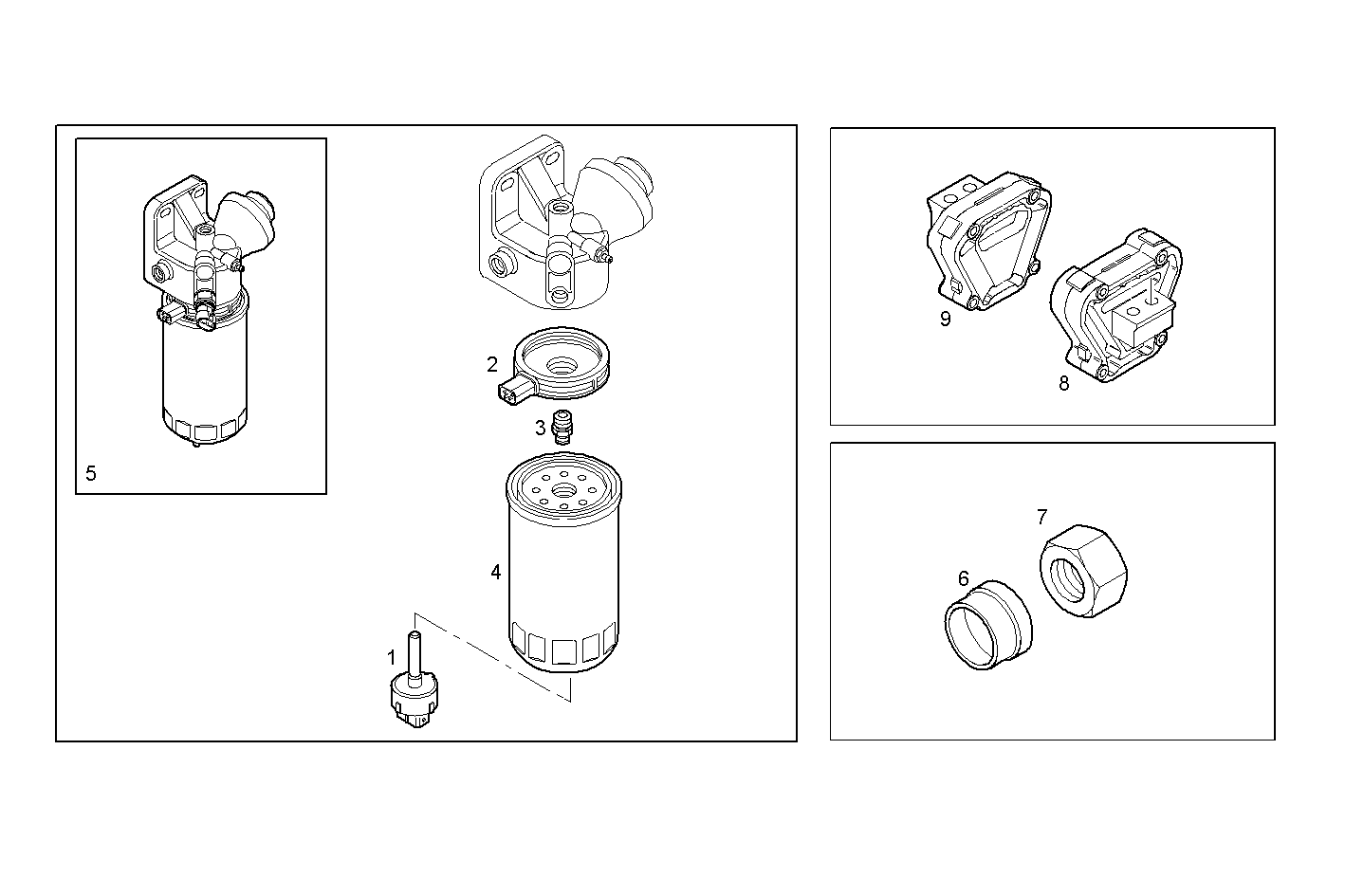

ACCESSORIES
Assembly ID: 8600.295
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 42540203 | SENSOR | 1 | ||
| 2 | 42548584 | HEATER FUEL FILTE | 1 | ||
| 3 | 42545832 | THREADED UNION | 1 | ||
| 4 | 2992662 | FUEL FILTER ELEM. | 1 | ||
| 5 | 504082414 | PREFILTER | 1 | ||
| 6 | 16527811 | SHEAR RING | 4 | ||
| 7 | 16527711 | NUT | 4 | ||
| 8 | 41219895 | DOWEL | 2 | ||
| 9 | 41219892 | DOWEL | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
