ACCESSORIES

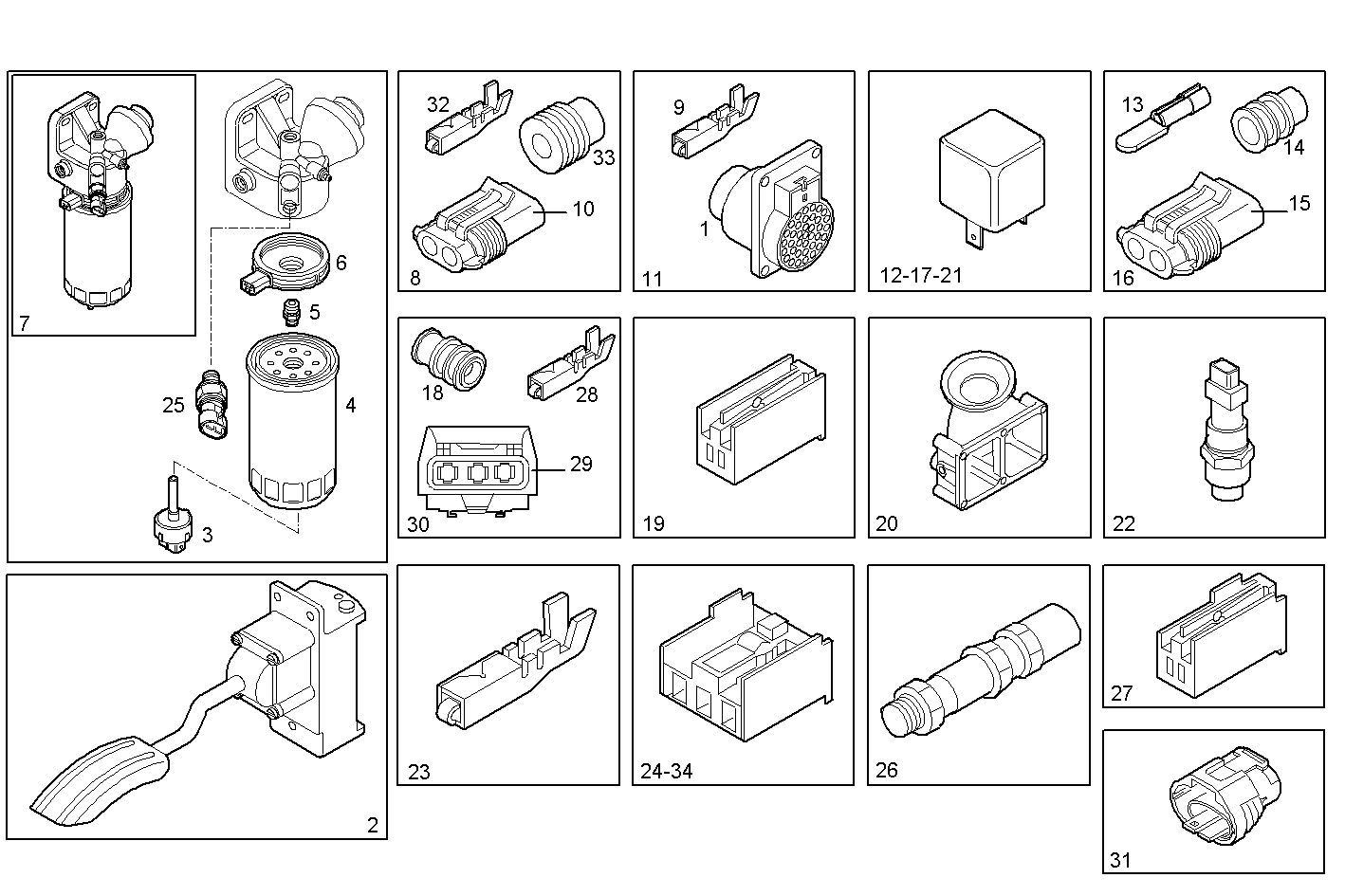

Assembly ID: 8600.308
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504013633 | CONNECTION | 1 | ||
| 2 | 504152162 | ACCELERATOR PEDAL | 1 | ||
| 3 | 42540204 | SENSOR | 1 | ||
| 4 | 2992662 | FUEL FILTER ELEM. | 1 | ||
| 5 | 42545832 | THREADED UNION | 1 | ||
| 6 | 42548584 | HEATER FUEL FILTE | 1 | ||
| 7 | 504082415 | FUEL FILTER | 1 | ||
| 8 | 8030571 | WIRE CONNECTOR | 2 | ||
| 9 | 99462549 | TERMINAL | 30 | ||
| 10 | 12330587 | WIRE CONNECTOR | 2 | ||
| 11 | 8031432 | WIRE CONNECTOR | 1 | ||
| 12 | 41040442 | RELAY | 1 | ||
| 13 | 98435372 | TERMINAL | 2 | ||
| 14 | 4861936 | RUBBER BUSH | 2 | ||
| 15 | 12331387 | CONNECTION | 1 | ||
| 16 | 8030574 | WIRE CONNECTOR | 1 | ||
| 17 | 500362250 | RELAY | 1 | ||
| 18 | 4835259 | GASKET | 3 | ||
| 19 | 8031429 | CONNECTION | 1 | ||
| 20 | 504074687 | INTAKE ELBOW | 1 | ||
| 21 | 500334927 | DIODE PLATE | 1 | ||
| 22 | 500365771 | SWITCH | 1 | ||
| 23 | 12366054 | TERMINAL | 5 | ||
| 24 | 12366680 | WIRE CONNECTOR | 1 | ||
| 25 | 504064817 | THERMOSWITCH | 1 | ||
| 26 | 500319244 | LIGHT STOP SWITCH | 1 | ||
| 27 | 12374089 | WIRE CONNECTOR | 1 | ||
| 28 | 12309290 | TERMINAL | 3 | ||
| 29 | 99430234 | PLUG COUPLING | 1 | ||
| 30 | 8030575 | CONNECTION | 1 | ||
| 31 | 99465498 | CONNECTION | 1 | ||
| 32 | 12330144 | TERMINAL | 4 | ||
| 33 | 12329982 | GASKET | 4 | ||
| 34 | 8031430 | CONNECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
