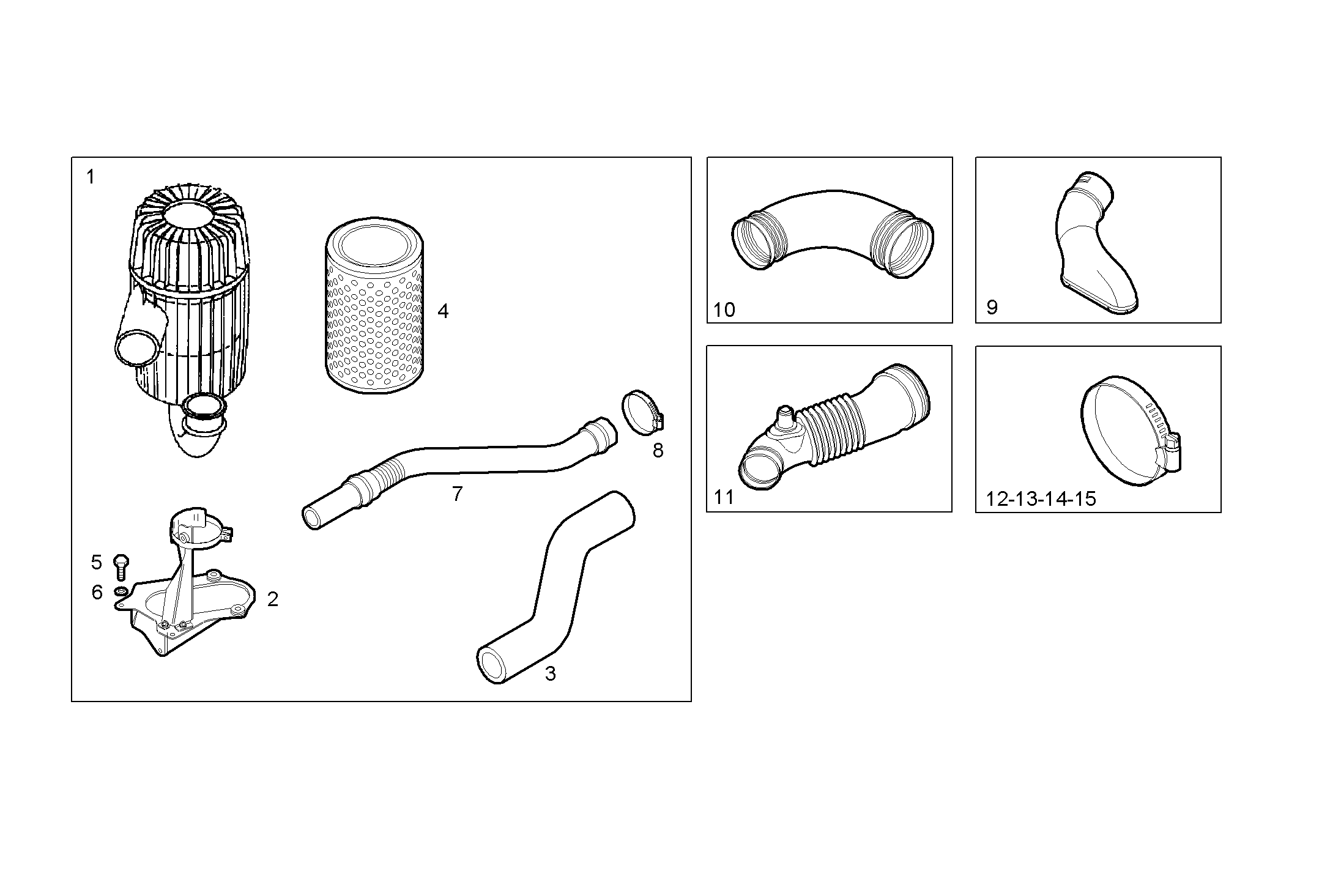

ACCESSORIES
Assembly ID: 8600.342-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504054587 | AIR CLEANER | 1 | ||
| 2 | 504054585 | FASTENING BRACKET | 1 | ||
| 3 | 500396509 | BREATHER PIPE | 1 | ||
| 4 | 1903669 | AIR FILTER ELEMENT | 1 | ||
| 5 | 16604024 | HEXAGON BOLT | 1 | ||
| 6 | 12647724 | WASHER | 1 | ||
| 7 | 504032760 | SUCTION LINE | 1 | ||
| 8 | 18088493 | CLIP | 1 | ||
| 9 | 504193548 | AIR INDUCT.FILTER | 1 | ||
| 10 | 504135453 | SUCTION LINE | 1 | ||
| 11 | 504135452 | FILTER HOSE | 1 | ||
| 12 | 18088892 | CLIP | 1 | ||
| 13 | 18089191 | CLIP | 2 | ||
| 14 | 4788410 | CLIP | 1 | ||
| 15 | 13127770 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENS424.20A001 | SOFIM HPI 2.3L - EURO 4 | view |
