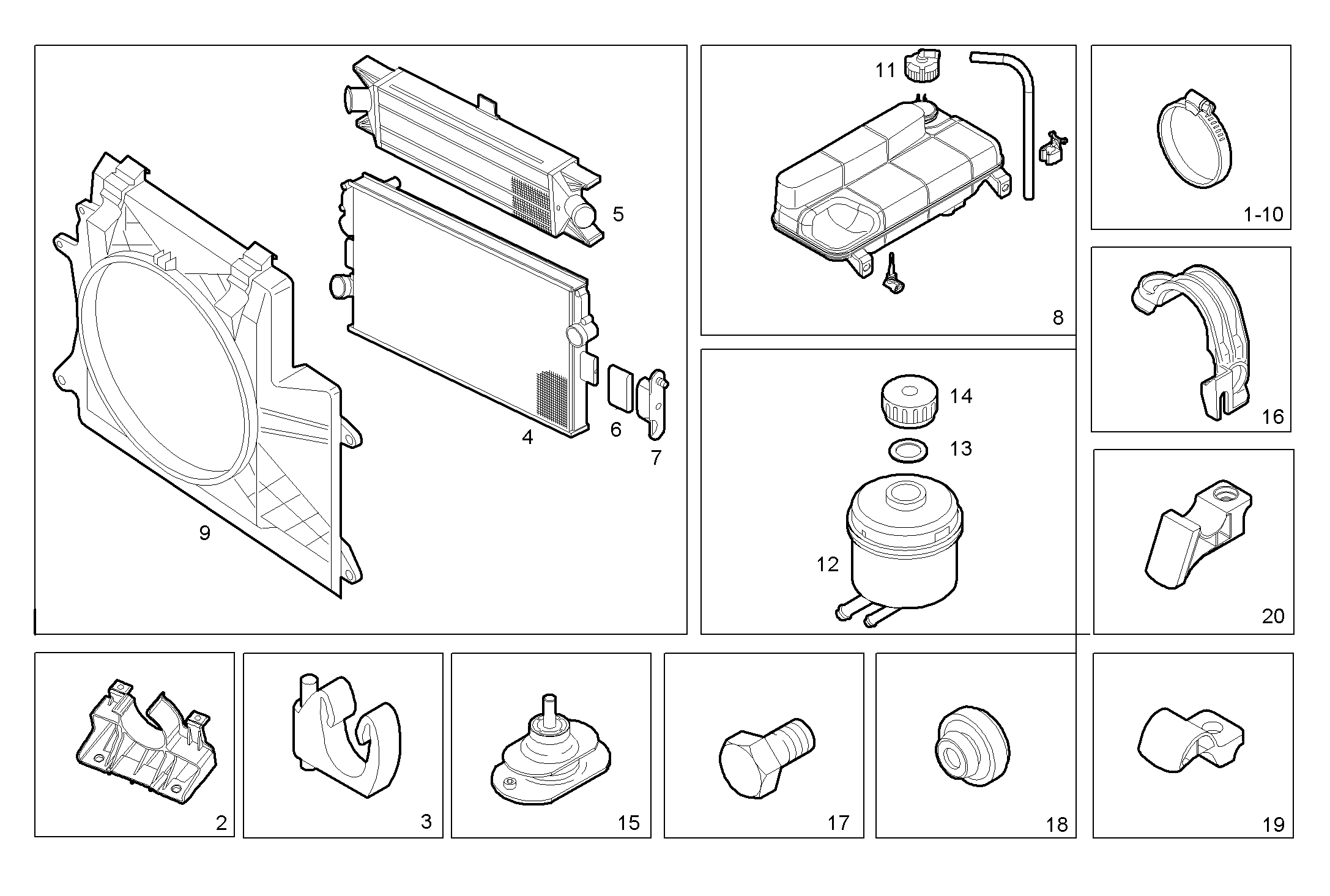

| 1 |
18088892
|
CLIP
|
|
2
|
|
| 2 |
504066074
|
FASTENING BRACKET
|
|
1
|
|
| 3 |
500350985
|
SPRING CLAMP
|
|
1
|
|
| 4 |
504084141
|
WATER RADIATOR
|
|
1
|
|
| 5 |
504084140
|
INTERCOOLER
|
|
1
|
|
|
5801349166 |
INTERCOOLER |
|
1 |
|
| 6 |
93809291
|
RUBBER PAD
|
|
2
|
|
|
5801299599 |
RUBBER PAD |
|
2 |
|
| 7 |
93810564
|
SUPPORT
|
|
2
|
|
| 8 |
504045819
|
EXPANSION TANK
|
|
1
|
|
| 9 |
504045486
|
AIR HOOD
|
|
1
|
|
| 10 |
18088992
|
CLIP
|
|
2
|
|
| 11 |
99489567
|
PLUG
|
|
1
|
|
| 12 |
504073722
|
OIL TANK
|
|
1
|
|
| 13 |
42546129
|
WASHER
|
|
1
|
|
| 14 |
42547928
|
LOCK PLUG
|
|
1
|
|
| 15 |
504074159
|
DOWEL
|
|
1
|
|
| 16 |
504045490
|
FASTENING BRACKET
|
|
2
|
|
| 17 |
17936007
|
HEXAGON BOLT
|
|
4
|
|
| 18 |
500339000
|
SPRING SLEEVE
|
|
1
|
|
| 19 |
504104447
|
RETAINER
|
|
2
|
|
| 20 |
504104446
|
RETAINER
|
|
2
|
|
