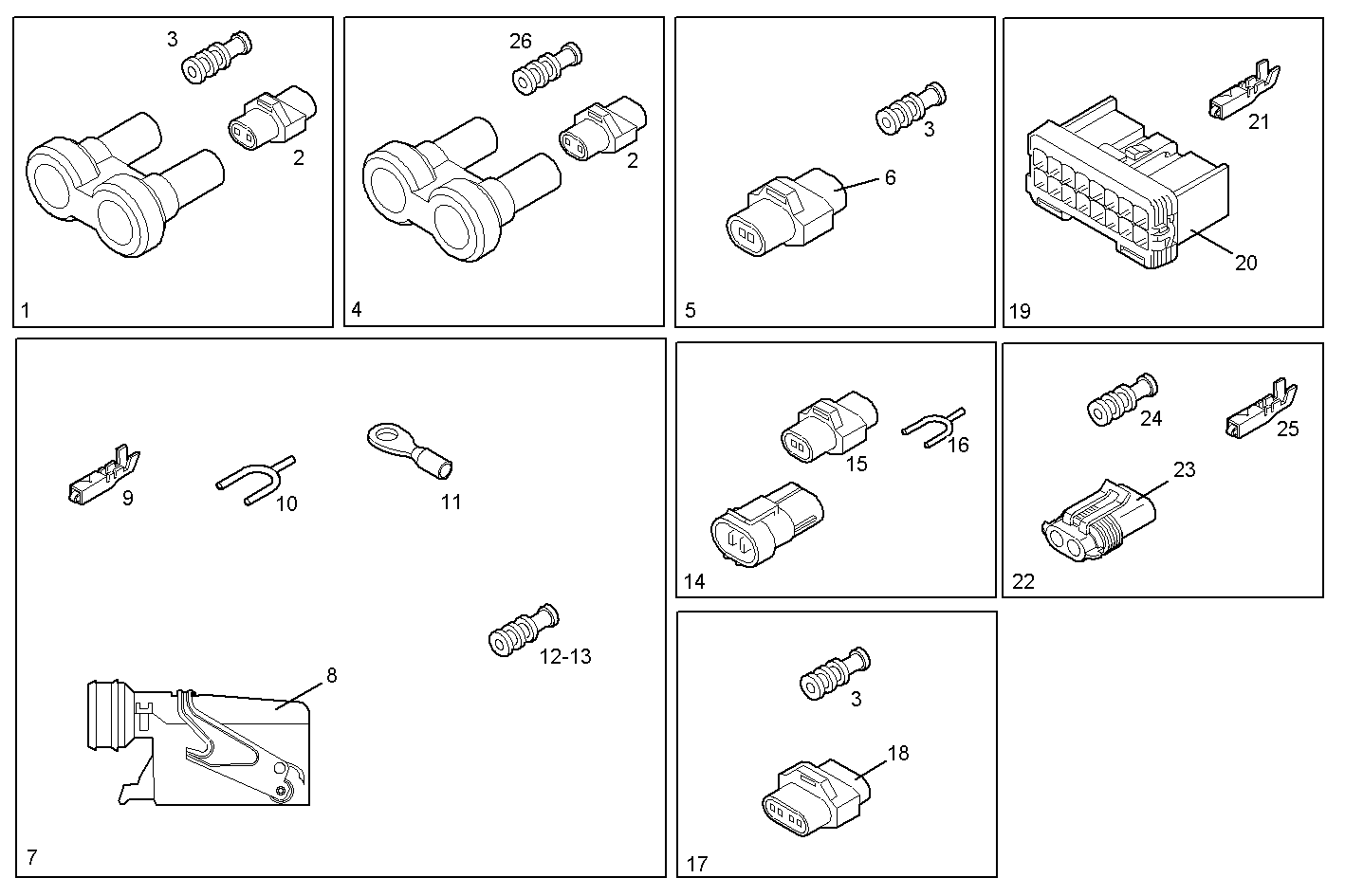

| 1 |
8045169
|
CONNECTION
|
|
1
|
|
| 2 |
16849387
|
WIRE CONNECTOR
|
|
1
|
|
| 3 |
500382761
|
RUBBER BUSH
|
|
10
|
|
| 4 |
8045170
|
CONNECTION
|
|
1
|
|
| 5 |
8045171
|
WIRE CONNECTOR
|
|
1
|
|
| 6 |
504147376
|
CONNECTION
|
|
1
|
|
| 7 |
8045173
|
CONNECTION
|
|
1
|
|
| 8 |
504144930
|
WIRE CONNECTOR
|
|
1
|
|
| 9 |
12309290
|
TERMINAL
|
|
15
|
|
| 10 |
12309390
|
TERMINAL
|
|
6
|
|
| 11 |
98489007
|
TERMINAL
|
|
14
|
|
| 12 |
4835259
|
GASKET
|
|
17
|
|
| 13 |
12309080
|
GASKET
|
|
4
|
|
| 14 |
8045172
|
WIRE CONNECTOR
|
|
1
|
|
| 15 |
504154752
|
CONNECTION
|
|
1
|
|
| 16 |
16852154
|
TERMINAL
|
|
2
|
|
| 17 |
8045175
|
WIRE CONNECTOR
|
|
1
|
|
| 18 |
16849487
|
WIRE CONNECTOR
|
|
1
|
|
| 19 |
8046821
|
WIRE CONNECTOR
|
|
1
|
|
| 20 |
16724882
|
WIRE CONNECTOR
|
|
1
|
|
| 21 |
16726054
|
TERMINAL
|
|
20
|
|
| 22 |
8031989
|
WIRE CONNECTOR
|
|
1
|
|
| 23 |
98435346
|
WIRE CONNECTOR
|
|
1
|
|
| 24 |
4861936
|
RUBBER BUSH
|
|
3
|
|
| 25 |
98435372
|
TERMINAL
|
|
3
|
|
| 26 |
16849388
|
WIRE CONNECTOR
|
|
1
|
|
