| 1 |
8007544
|

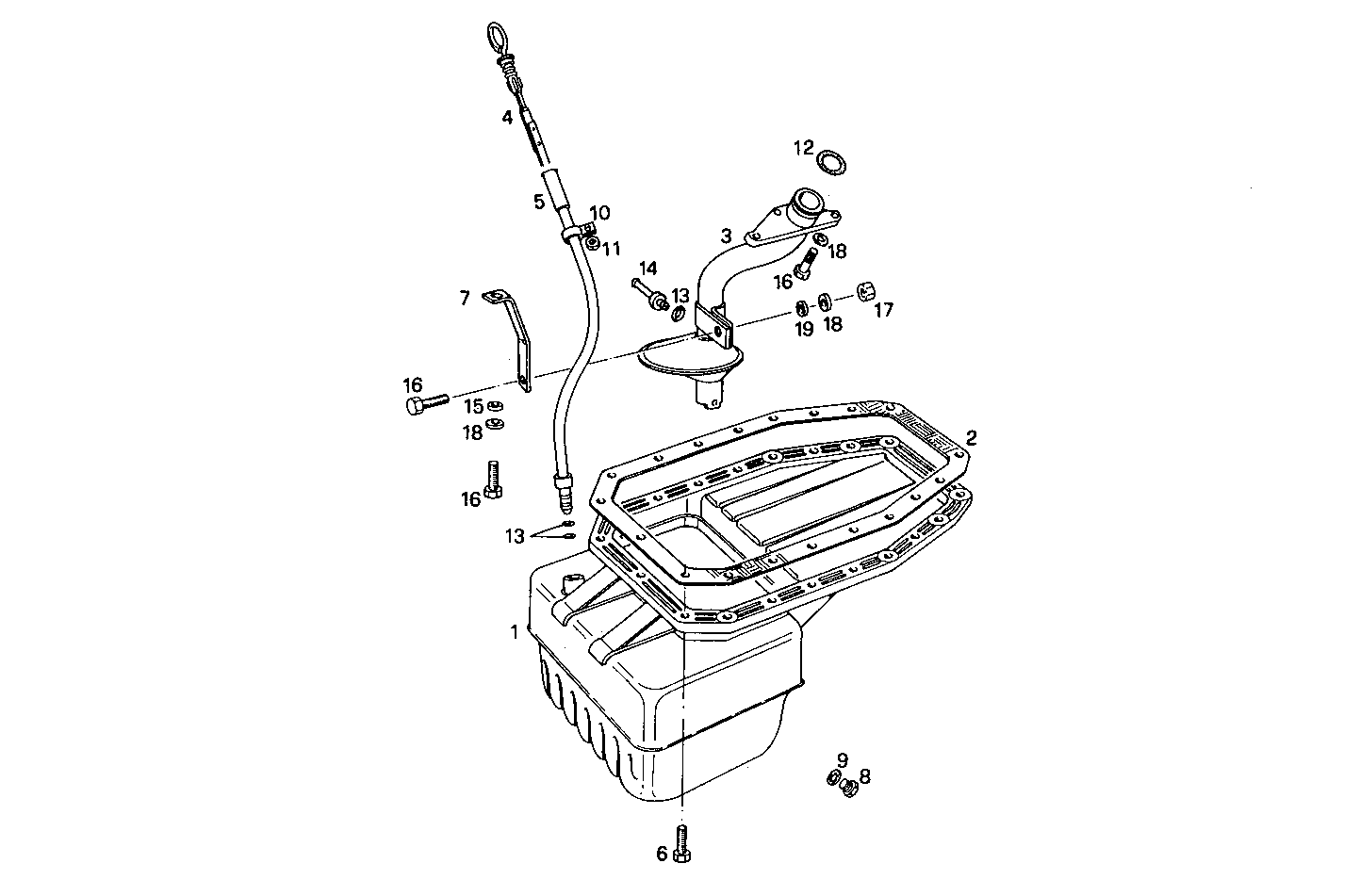

OIL SUMP
|
|
1
|
|
| 2 |
98427939
|
OIL SUMP GASKET
|
|
1
|
|
| 3 |
7300542
|
SUCTION STRAINER
|
|
1
|
|
| 4 |
7300433
|
OIL DIPSTICK
|
|
1
|
|
| 5 |
7300430
|
OIL LEVEL TUBE
|
|
1
|
|
| 6 |
16605624
|
HEXAGON BOLT
|
|
3
|
|
|
16605635 |
HEXAGON BOLT |
|
3 |
|
| 7 |
8019884
|
RETAINER
|
|
1
|
|
| 8 |
10305111
|
LOCK PLUG
|
|
1
|
|
|
16992611 |
LOCK PLUG |
|
1 |
|
| 9 |
10263460
|
WASHER
|
|
1
|
|
| 10 |
17316690
|
FASTENING BRACKET
|
|
1
|
|
| 11 |
16979431
|
NUT
|
|
1
|
|
|
16979435 |
NUT |
|
1 |
|
| 12 |
17282221
|
O-RING
|
|
1
|
|
| 13 |
17277981
|
O-RING
|
|
4
|
|
| 14 |
8113956
|
OIL LINE
|
|
1
|
|
| 15 |
10519821
|
WASHER
|
|
2
|
|
| 16 |
16605524
|
HEXAGON BOLT
|
|
4
|
|
| 17 |
17152821
|
NUT
|
|
1
|
|
| 18 |
17089474
|
SPRING WASHER
|
|
4
|
|
