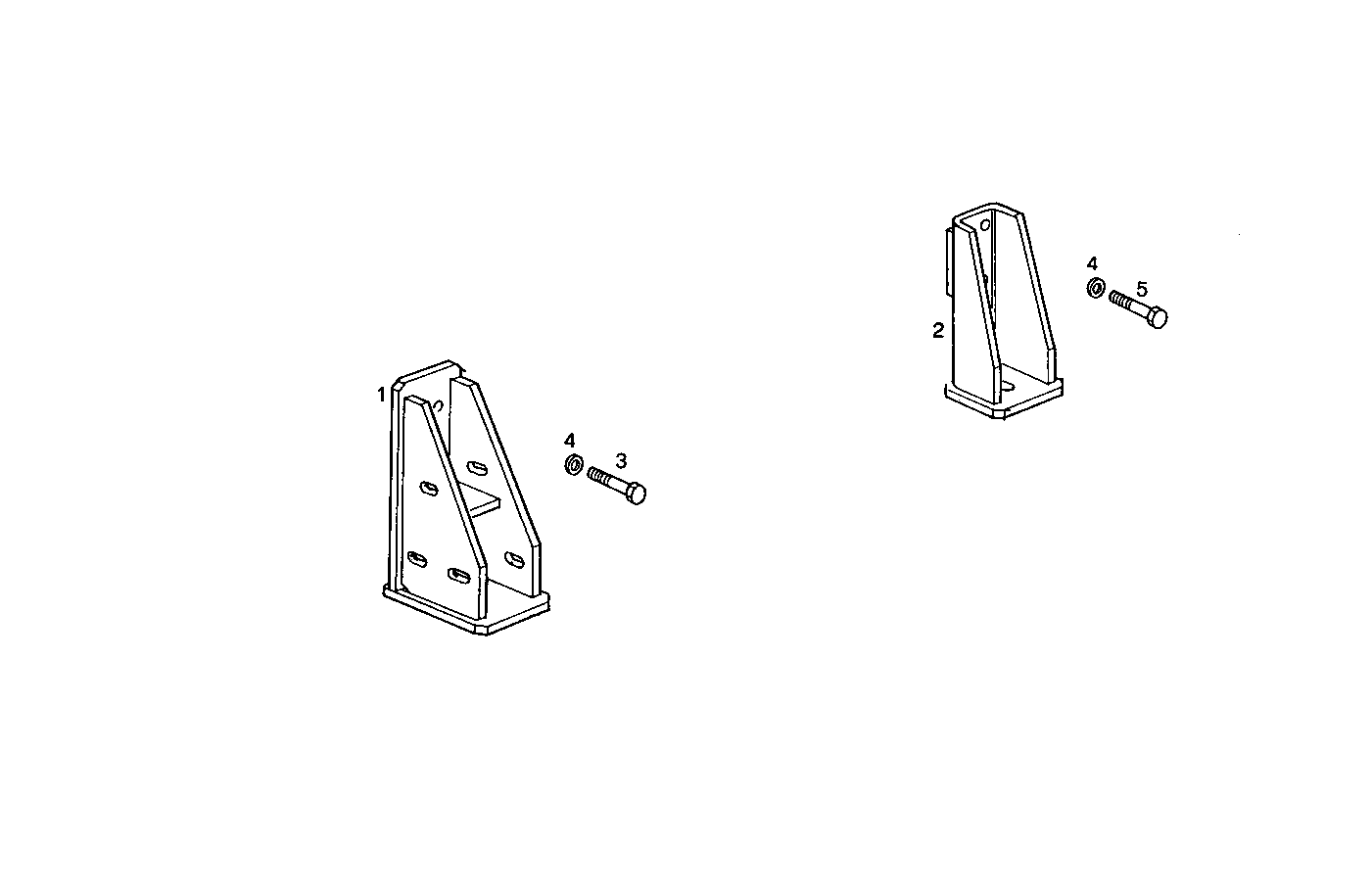

RIGID MOUNTING
Assembly ID: A04000024
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8019687 | ENGINE SUSPENSION | 2 | ||
| 2 | 8114448 | ENGINE SUSPENSION | 2 | ||
| 3 | 16614624 | HEXAGON BOLT | 4 | ||
| 4 | 17092174 | SPRING WASHER | 12 | ||
| 5 | 16614924 | SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRE11.00 | 8361SRE11 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
