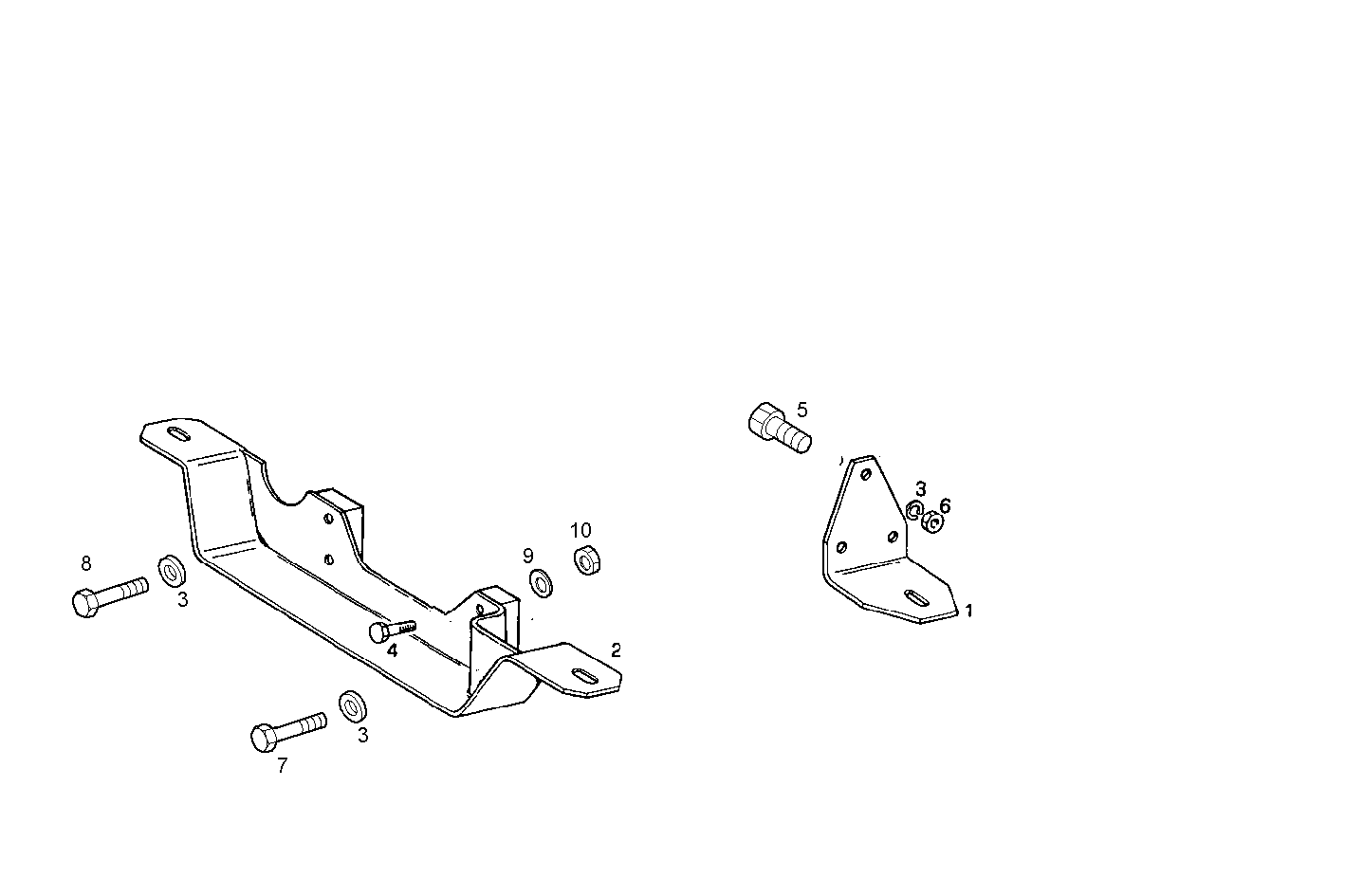

RIGID MOUNTING
Assembly ID: A04000046
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4919262 | SUPPORT | 2 | ||
| 2 | 8021704 | SUPPORT | 1 | ||
| 3 | 17090174 | SPRING WASHER | 10 | ||
| 4 | 16605734 | HEXAGON BOLT | 2 | ||
| 5 | 16607734 | HEXAGON BOLT | 6 | ||
| 6 | 17038121 | HEXAGON NUT | 6 | ||
| 7 | 15972224 | HEXAGON BOLT | 2 | ||
| 8 | 11306924 | HEXAGON BOLT | 8 | ||
| 9 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 17037925 | HEXAGON NUT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC31.35A001- 1C | 8140SRC31 | view |
| 8140SRC31.35L002- 1C | 8140SRC31 | view |
| 8140SRC31.35A001- 1D | 8140SRC31 | view |
| 8140SRC31.35L002- 1D | 8140SRC31 | view |
