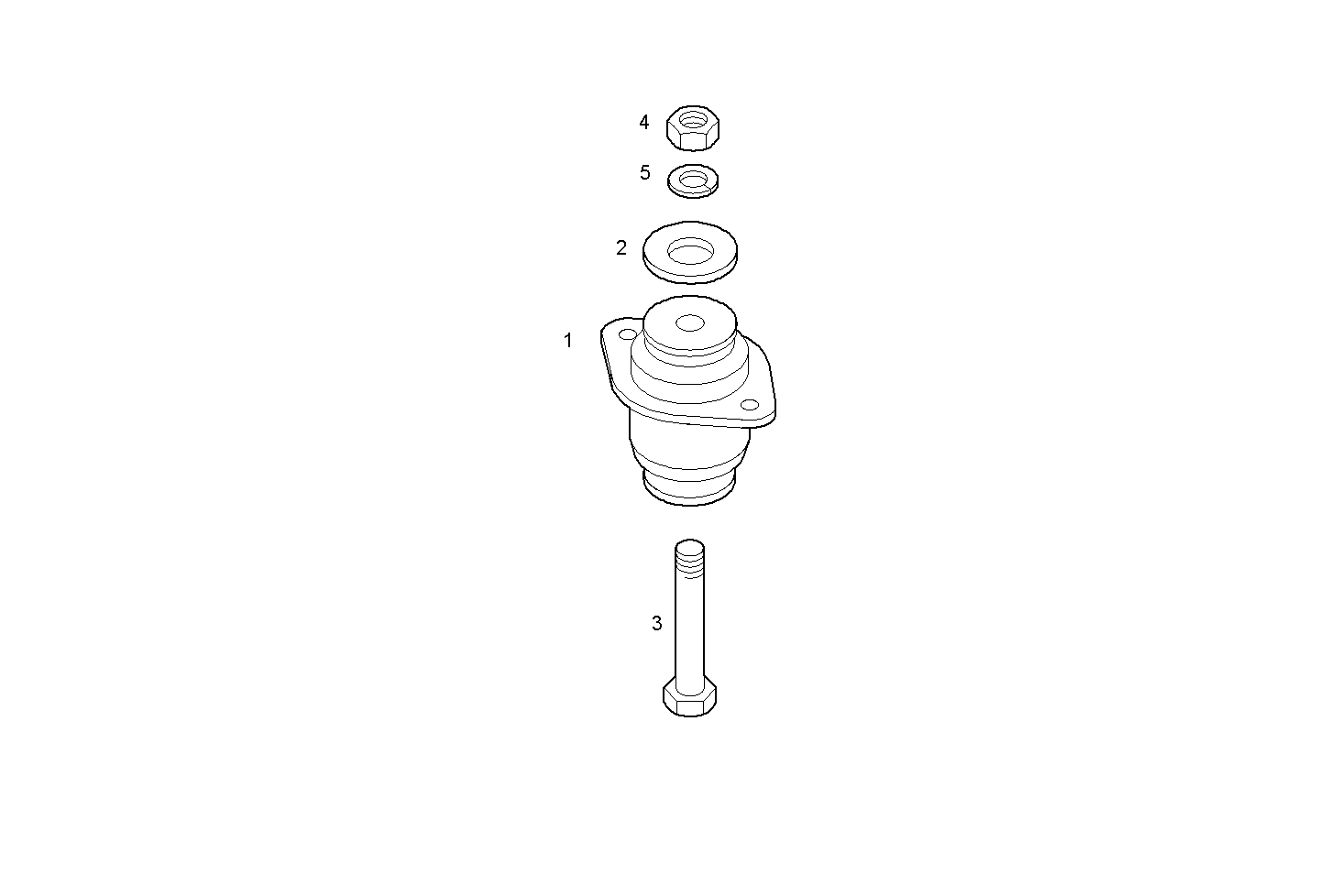

ELASTIC PADS NOT ADJUSTABLE
Assembly ID: A04050504
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 93930629 | CAB SUPPORT | 4 | ||
| 2 | 8040104 | BUSH | 4 | ||
| 3 | 16611124 | HEXAGON BOLT | 4 | ||
| 4 | 17038425 | HEXAGON NUT | 4 | ||
| 5 | 17091374 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNAM10.00 | NEF 4 mechanic. | view |
| N67MNAM15.00 | NEF 6 mechanic. | view |
| N67MNAM12.30 | NEF 6 mechanic. | view |
| N67MNAM15.30 | NEF 6 mechanic. | view |
| N67MNAM15.01 | NEF 6 mechanic. | view |
| N67MNAM15.31 | NEF 6 mechanic. | view |
| N45MNAM10.01 | NEF 4 mechanic. | view |
| N67MNAM15.02 | NEF 6 mechanic. | view |
| N45MNAM10.02 | NEF 4 mechanic. | view |
| N45MNAM10.30 | NEF 4 mechanic. | view |
