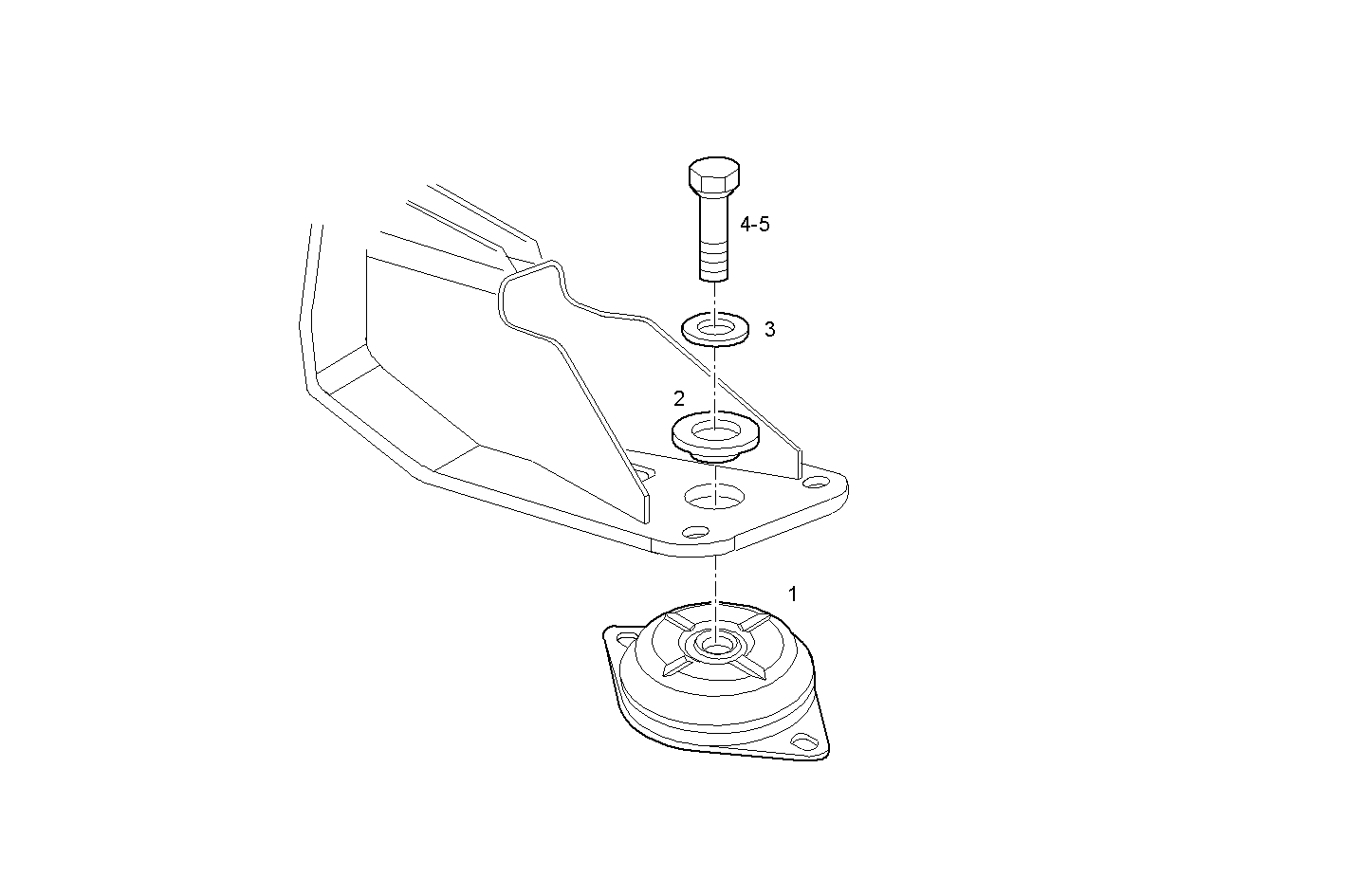

RIGID MOUNTING
Assembly ID: A04050506
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8045678 | RUBBER LUG | 6 | ||
| 2 | 8045063 | BUSH | 6 | ||
| 3 | 17092474 | SPRING WASHER | 6 | ||
| 4 | 16683135 | HEXAGON BOLT | 2 | ||
| 5 | 16682735 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
