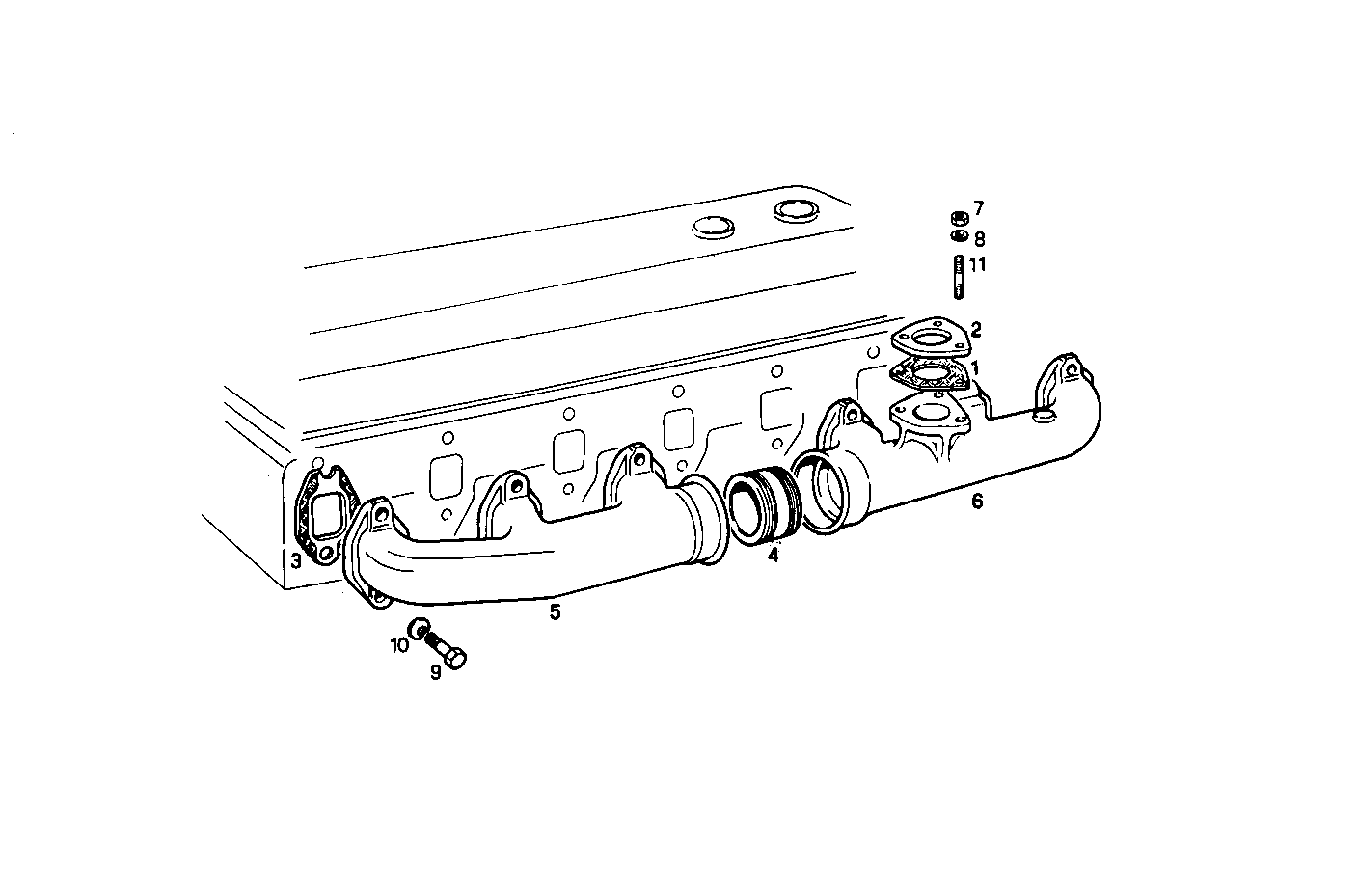

EXHAUST MANIFOLD UPWARD OUTLET
Assembly ID: A06010004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8009824 | GASKET | 1 | ||
| 2 | 596752 | FLANGE | 1 | ||
| 3 | 98489690 | EXH. MANIFOLD GKT | 6 | ||
| 4 | 4602270 | RING | 1 | ||
| 5 | 4817497 | EXHAUST MANIFOLD | 1 | ||
| 6 | 8114190 | EXHAUST MANIFOLD | 1 | ||
| 7 | 8010538 | NUT | 3 | ||
| 8 | 17094914 | WASHER | 3 | ||
| 9 | 98488122 | SCREW | 12 | ||
| 10 | 98488128 | WASHER | 12 | ||
| 11 | 13449824 | STUD | 3 |
