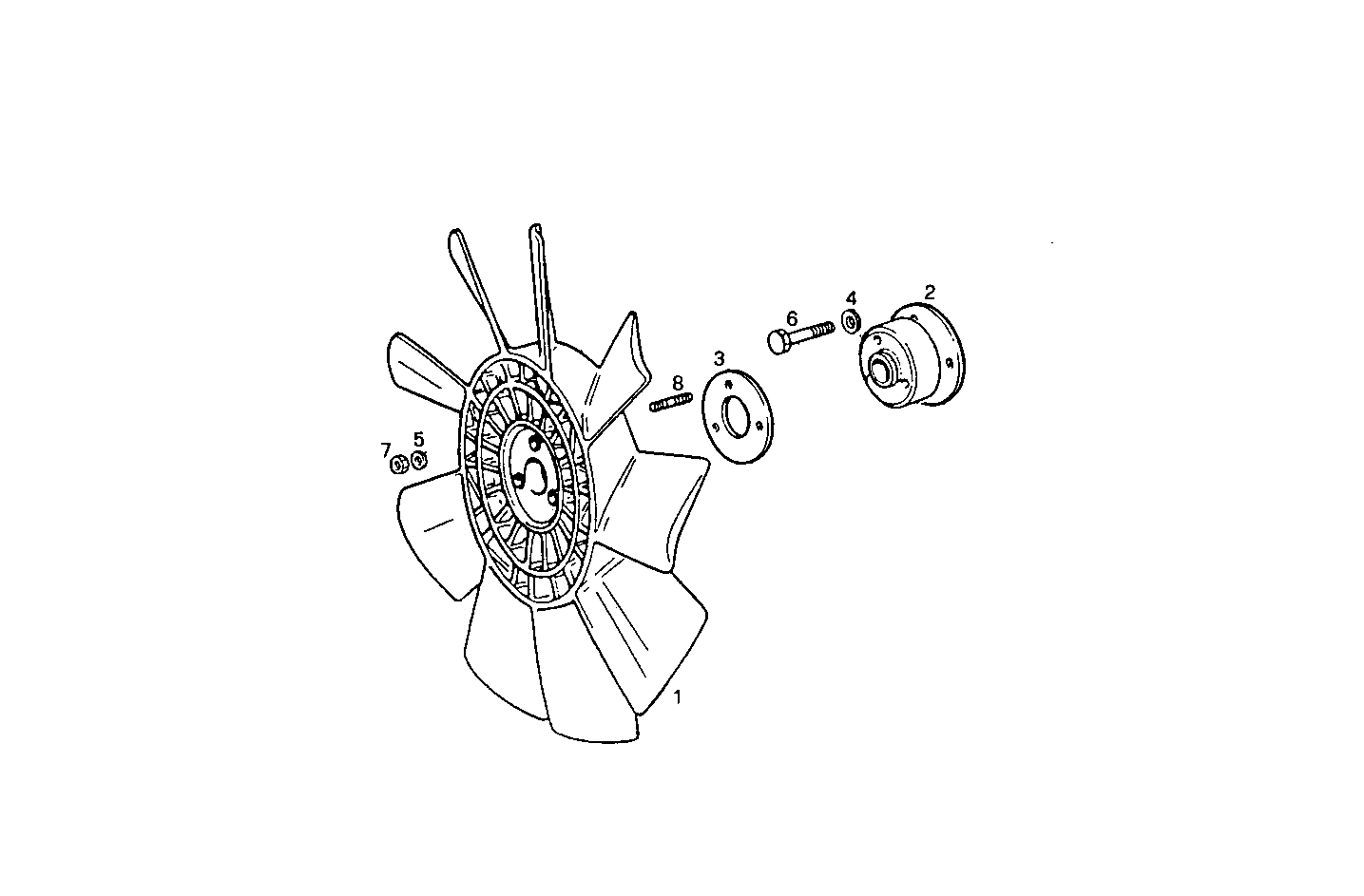

PULLER FAN
Assembly ID: A08000005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4616572 | BLOWER | 1 | ||
| 2 | 8106837 | HUB | 1 | ||
| 3 | 4584861 | SPACING BAR | 2 | ||
| 4 | 12642701 | WASHER | 3 | ||
| 5 | 11198379 | SPRING WASHER | 3 | ||
| 6 | 16043421 | HEXAGON BOLT | 3 | ||
| 7 | 17037931 | HEXAGON NUT | 3 | ||
| 8 | 13543621 | STUD | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141Si27.02 | 8141Si27 | view |
| 8140SE00.00 | 8140SE00 | view |
