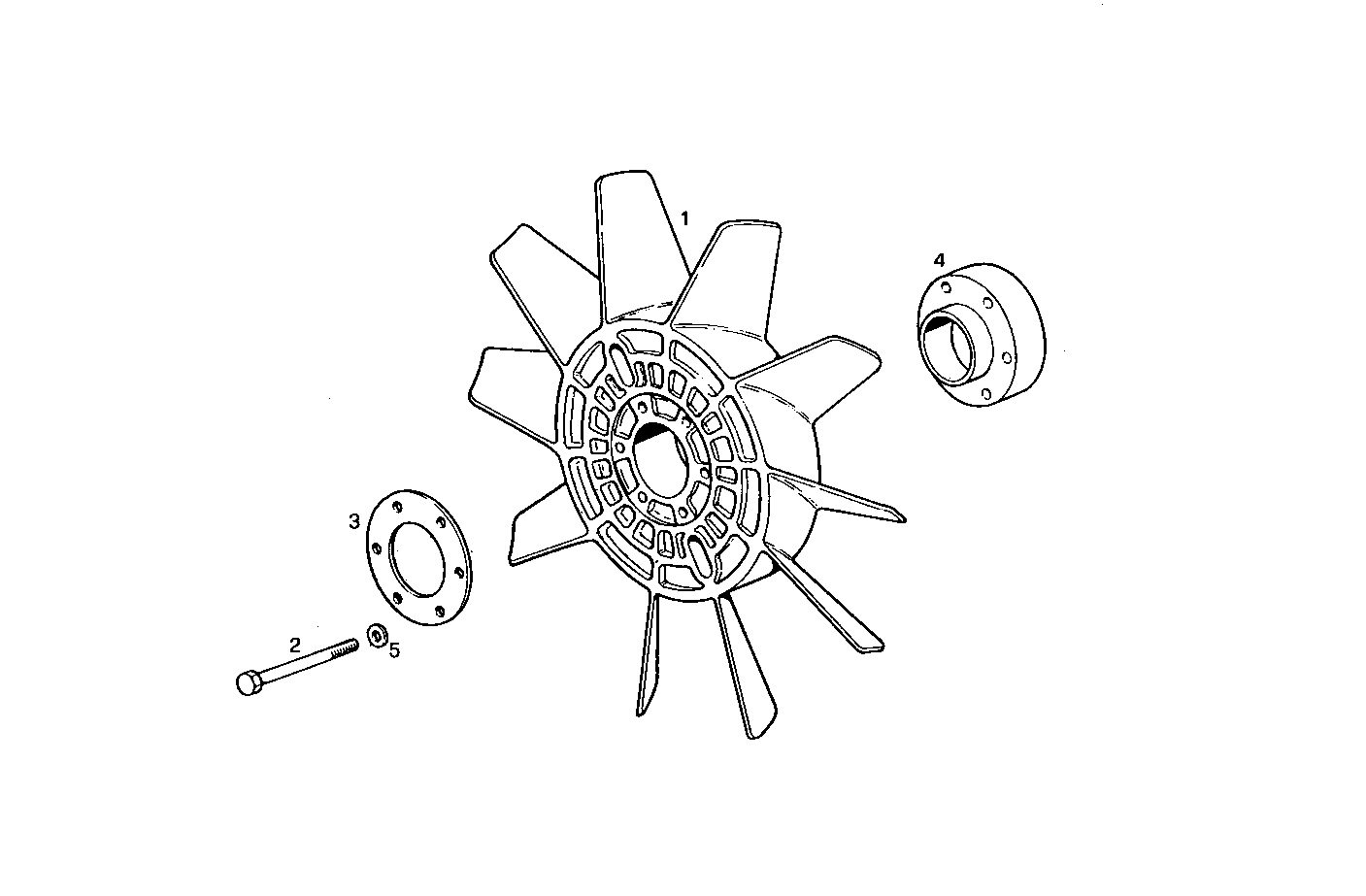

PULLER FAN
Assembly ID: A08000039
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4629725 | BLOWER | 1 | ||
| 2 | 15971321 | HEXAGON BOLT | 6 | ||
| 3 | 4629908 | SUPPORT RING | 1 | ||
| 4 | 79028403 | SPACING BAR | 1 | ||
| 5 | 17090174 | SPRING WASHER | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
