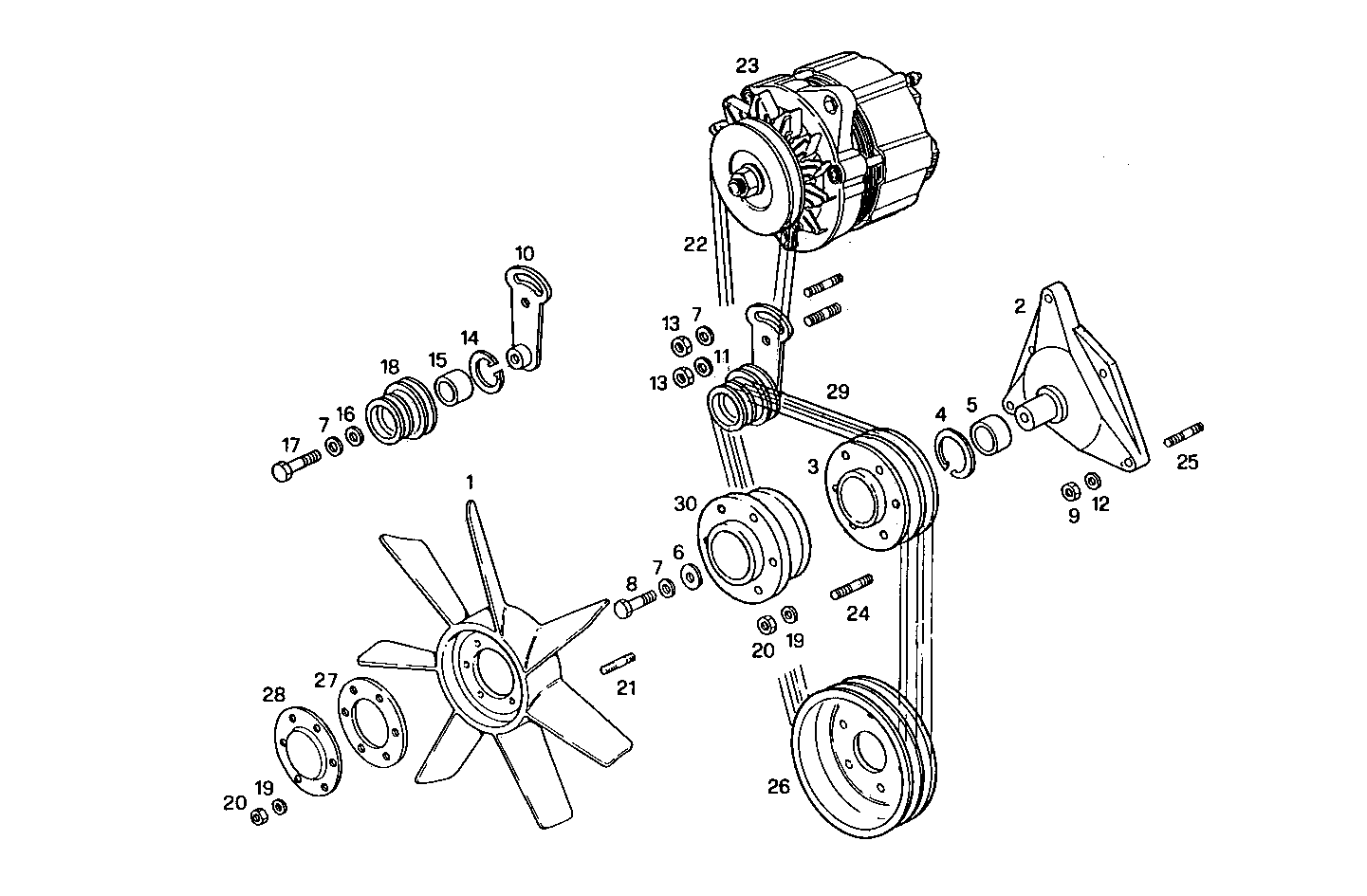

| 1 |
4936057
|
FAN
|
|
1
|
|
| 2 |
98484127
|
SUPPORT
|
|
1
|
|
| 3 |
98435381
|
PULLEY
|
|
1
|
|
| 4 |
16874776
|
CIRCLIP
|
|
2
|
|
| 5 |
98427607
|
ENGINE BEARINGS
|
|
2
|
|
| 6 |
98427590
|
WASHER
|
|
2
|
|
| 7 |
17091074
|
WASHER
|
|
3
|
|
| 8 |
15541421
|
HEXAGON BOLT
|
|
1
|
|
| 9 |
17038221
|
HEXAGON NUT
|
|
3
|
|
|
17038225 |
HEXAGON NUT |
|
3 |
|
| 10 |
98480739
|
BELT TENSIONER
|
|
1
|
|
| 11 |
12646921
|
WASHER
|
|
1
|
|
|
16887624 |
WASHER |
|
1 |
|
| 12 |
17090174
|
SPRING WASHER
|
|
3
|
|
| 13 |
17038621
|
NUT
|
|
2
|
|
| 14 |
15540521
|
SCREW
|
|
1
|
|
|
15540534 |
SCREW |
|
1 |
|
| 18 |
98428704
|
PULLEY
|
|
1
|
|
| 19 |
17089474
|
SPRING WASHER
|
|
12
|
|
| 20 |
17037931
|
HEXAGON NUT
|
|
12
|
|
| 21 |
16729224
|
STUD
|
|
6
|
|
| 22 |
500385852
|
ALTERNATOR BELT
|
|
1
|
|
| 23 |
8019559
|
ALTERNATOR
|
|
1
|
|
|
98419035 |
ALTERNATOR |
|
1 |
|
| 24 |
16729324
|
STUD
|
|
6
|
|
| 25 |
13543721
|
STUD
|
|
3
|
|
| 26 |
8027991
|
PULLEY
|
|
1
|
|
| 27 |
4933279
|
RING
|
|
1
|
|
| 28 |
8021969
|
PROTECTION
|
|
1
|
|
| 29 |
4854694
|
SET OF V-BELTS
|
|
1
|
|
| 30 |
8018279
|
SPACING BAR
|
|
1
|
|
