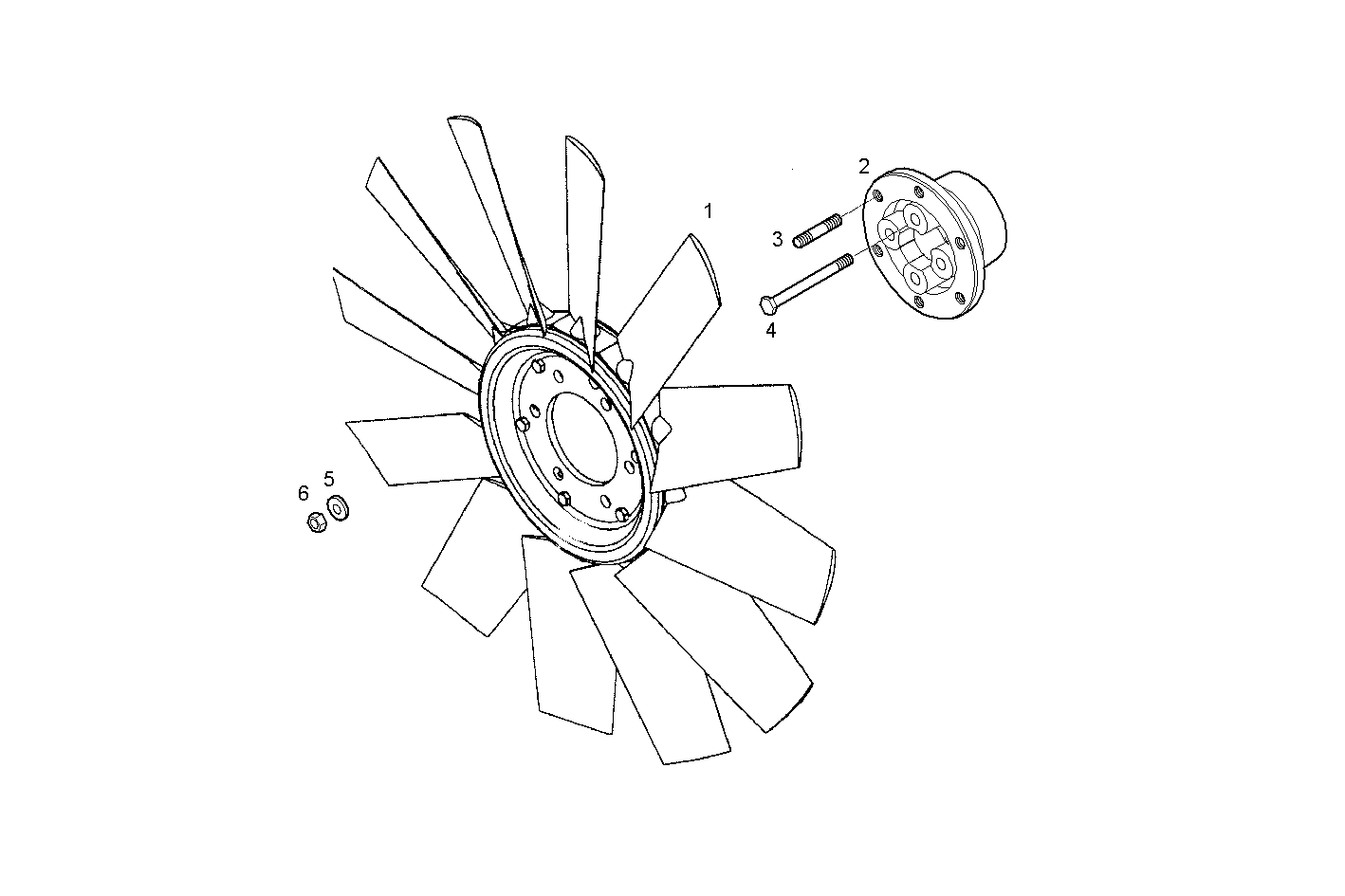

PULLER FAN
Assembly ID: A08000515
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8043552 | FAN | 1 | ||
| 2 | 8032094 | SPACING BAR | 1 | ||
| 3 | 16731324 | STUD | 6 | ||
| 4 | 16599025 | SCREW | 4 | ||
| 5 | 16665604 | WASHER | 6 | ||
| 6 | 17038131 | HEXAGON NUT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTF41.00 | NEF 6 mechanic. | view |
| N67MNTF42.00 | NEF 6 mechanic. | view |
| N67MNTF41.10 | NEF 6 mechanic. | view |
| N67MNTF42.10 | NEF 6 mechanic. | view |
| N67MNTF40.01 | NEF 6 mechanic. | view |
| N67MNTF40.10 | NEF 6 mechanic. | view |
