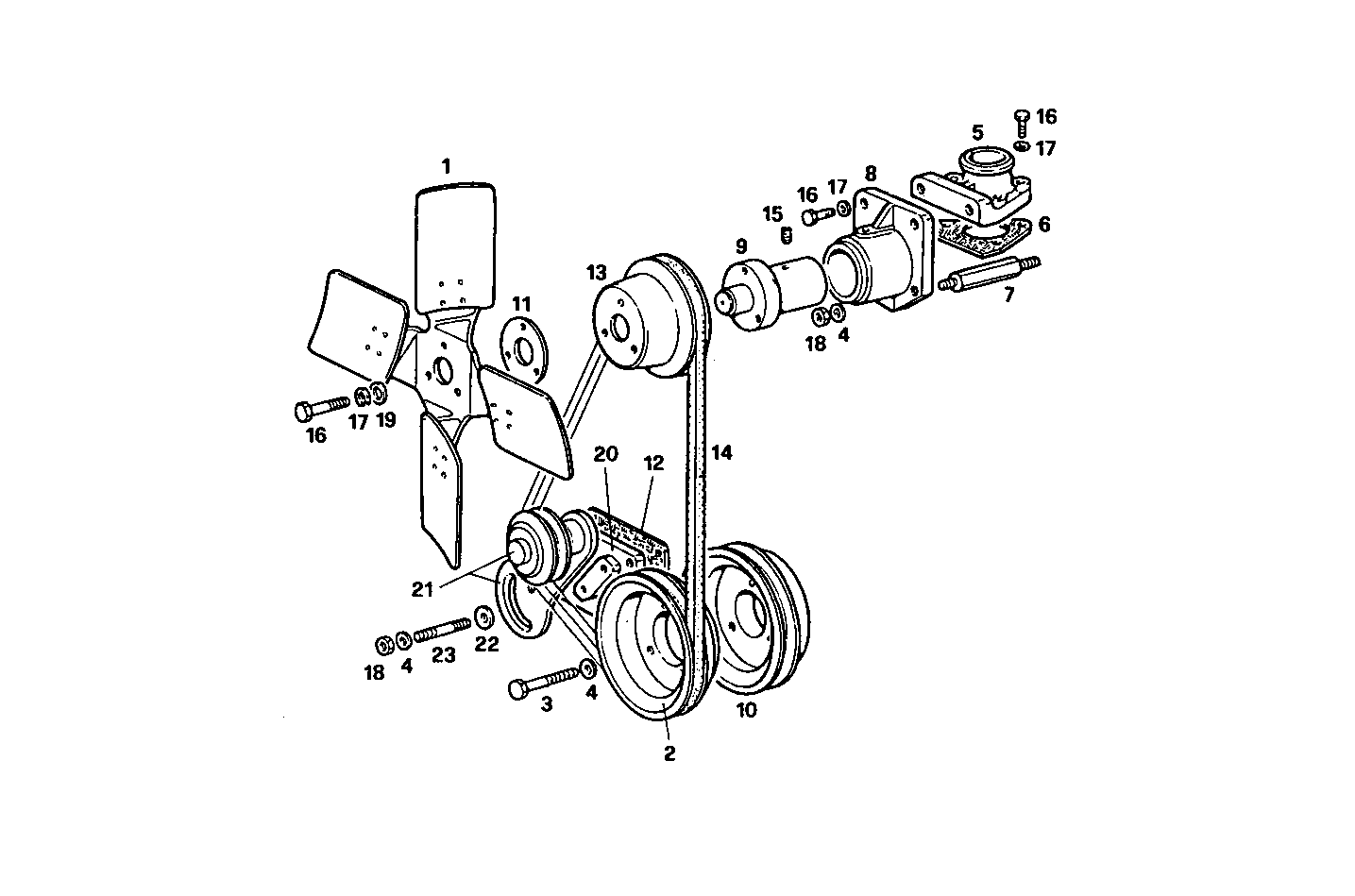

| 1 |
4606454
|
FAN
|
|
1
|
|
| 2 |
8104216
|
PULLEY
|
|
1
|
|
| 3 |
15971421
|
HEXAGON BOLT
|
|
3
|
|
|
15971424 |
HEXAGON BOLT |
|
3 |
|
| 4 |
17090174
|
SPRING WASHER
|
|
7
|
|
| 5 |
8101449
|
WATER PIPE
|
|
1
|
|
| 6 |
98482590
|
GASKET
|
|
1
|
|
| 7 |
8104414
|
STUD
|
|
2
|
|
| 8 |
8101424
|
SUPPORT
|
|
1
|
|
| 9 |
8101129
|
SHAFT
|
|
1
|
|
| 10 |
8016308
|
PULLEY
|
|
1
|
|
| 11 |
4584861
|
SPACING BAR
|
|
1
|
|
| 12 |
4607590
|
FLAT ENGINE GASKET
|
|
1
|
|
|
4850986 |
FLAT ENGINE GASKET |
|
1 |
|
| 13 |
4736987
|
WATER PUMP PULLEY
|
|
1
|
|
| 14 |
8107453
|
V-BELT
|
|
1
|
|
| 15 |
17431270
|
SCREW
|
|
1
|
|
| 16 |
16605624
|
HEXAGON BOLT
|
|
8
|
|
|
16605635 |
HEXAGON BOLT |
|
8 |
|
| 17 |
17089474
|
SPRING WASHER
|
|
8
|
|
| 18 |
17038221
|
HEXAGON NUT
|
|
4
|
|
|
17038225 |
HEXAGON NUT |
|
4 |
|
| 19 |
10519601
|
WASHER
|
|
3
|
|
|
17094904 |
WASHER |
|
3 |
|
| 20 |
8028090
|
SUPPORT
|
|
1
|
|
| 21 |
8101127
|
BELT TENSIONER
|
|
1
|
|
| 22 |
4513436
|
SUPPORT RING
|
|
1
|
|
| 23 |
13449521
|
STUD
|
|
2
|
|
|
13449524 |
STUD |
|
2 |
|
