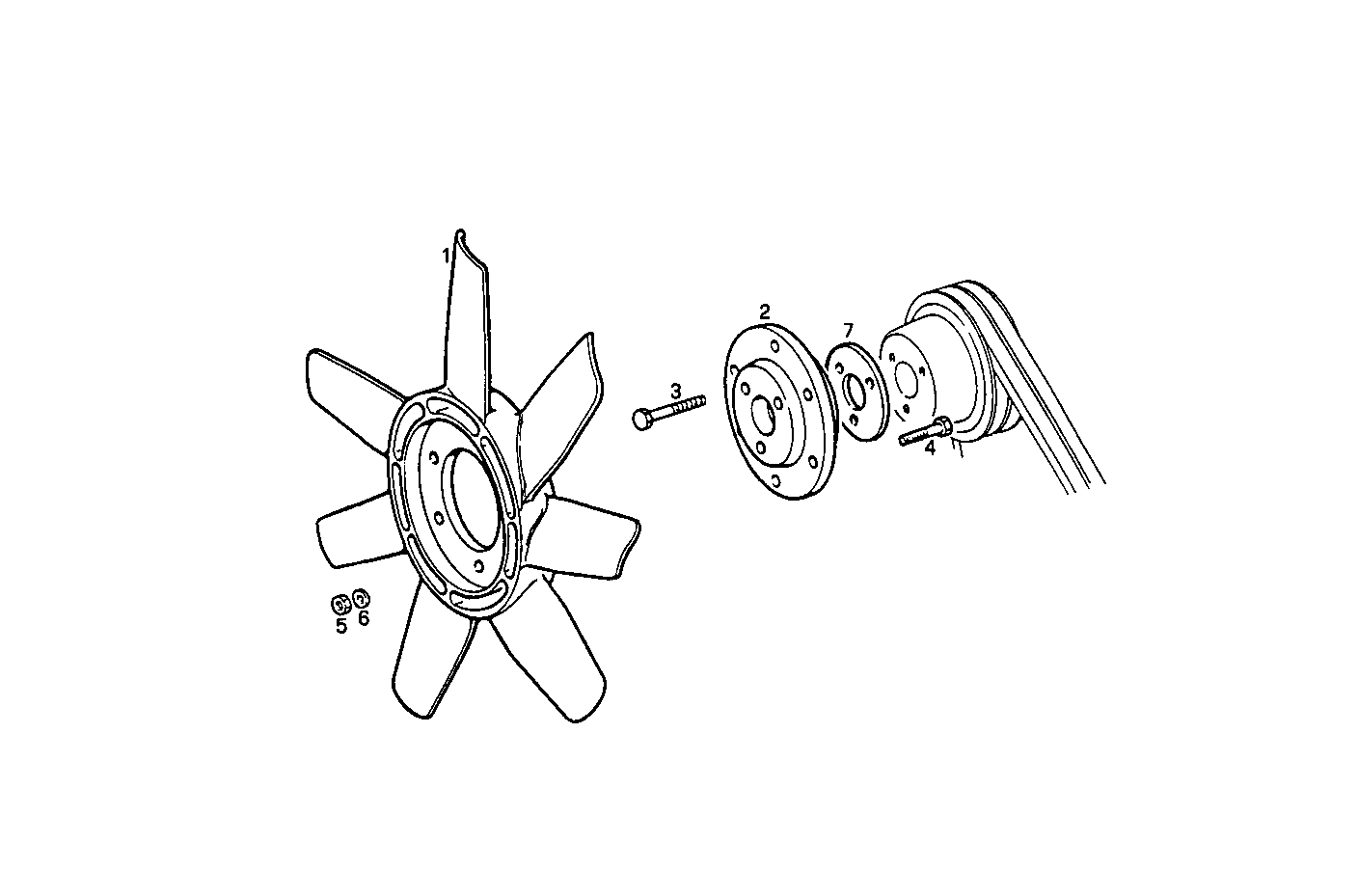

OVERSIZE PULLER FAN
Assembly ID: A08030003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4698188 | BLOWER | 1 | ||
| 2 | 4929123 | SPACING BAR | 1 | ||
| 3 | 16044321 | HEXAGON BOLT | 3 | ||
| 4 | 11234721 | HEXAGON BOLT | 6 | ||
| 5 | 12574511 | NUT | 6 | ||
| 6 | 12638601 | WASHER | 6 | ||
| 7 | 4584861 | SPACING BAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061i05.00 | 8061i05 | view |
| 8061i25.00 | 8061i25 | view |
| 8061i05.05 | 8061i05 | view |
| 8061i25.05 | 8061i25 | view |
| 8065E00.00 | 8065E00 | view |
| 8065U00.00 | 8065U00 | view |
