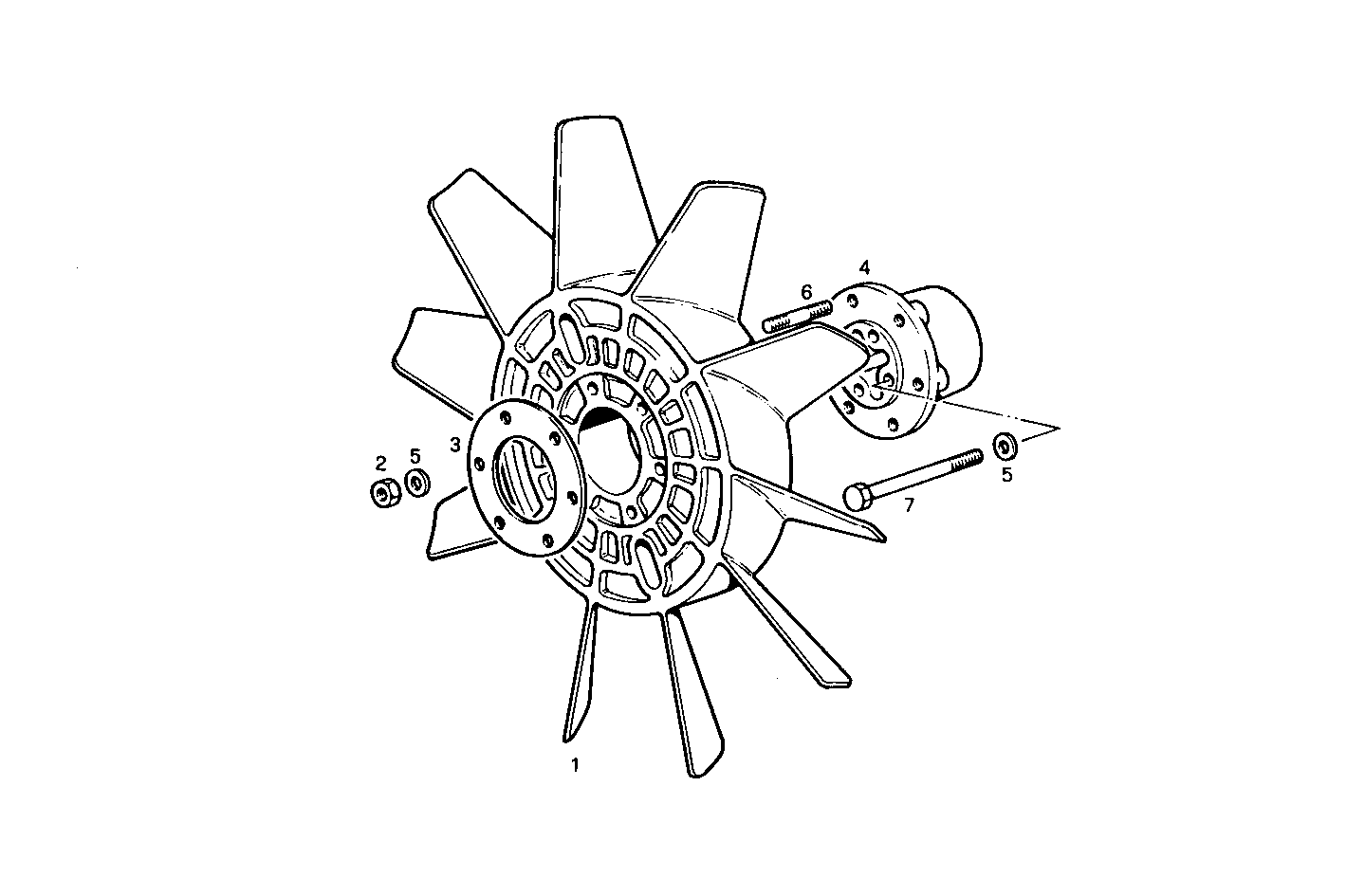

PULLER FAN
Assembly ID: A08030004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4629725 | BLOWER | 1 | ||
| 2 | 12164711 | HEXAGON NUT | 6 | ||
| 3 | 4629908 | SUPPORT RING | 1 | ||
| 4 | 8104535 | HUB | 1 | ||
| 5 | 11198371 | SPRING WASHER | 10 | ||
| 6 | 13546621 | STUD | 6 | ||
| 7 | 15972121 | SCREW | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi13.00 | 8361SRi13 | view |
| 8361Si11.05 | 8361Si11 | view |
| 8361SRi11.05 | 8361SRi11 | view |
| 8361SRi10.01 | 8361SRi10 | view |
| 8361SRi40.00 | 8361SRi40 | view |
| 8361Si10.00 | 8361Si10 | view |
