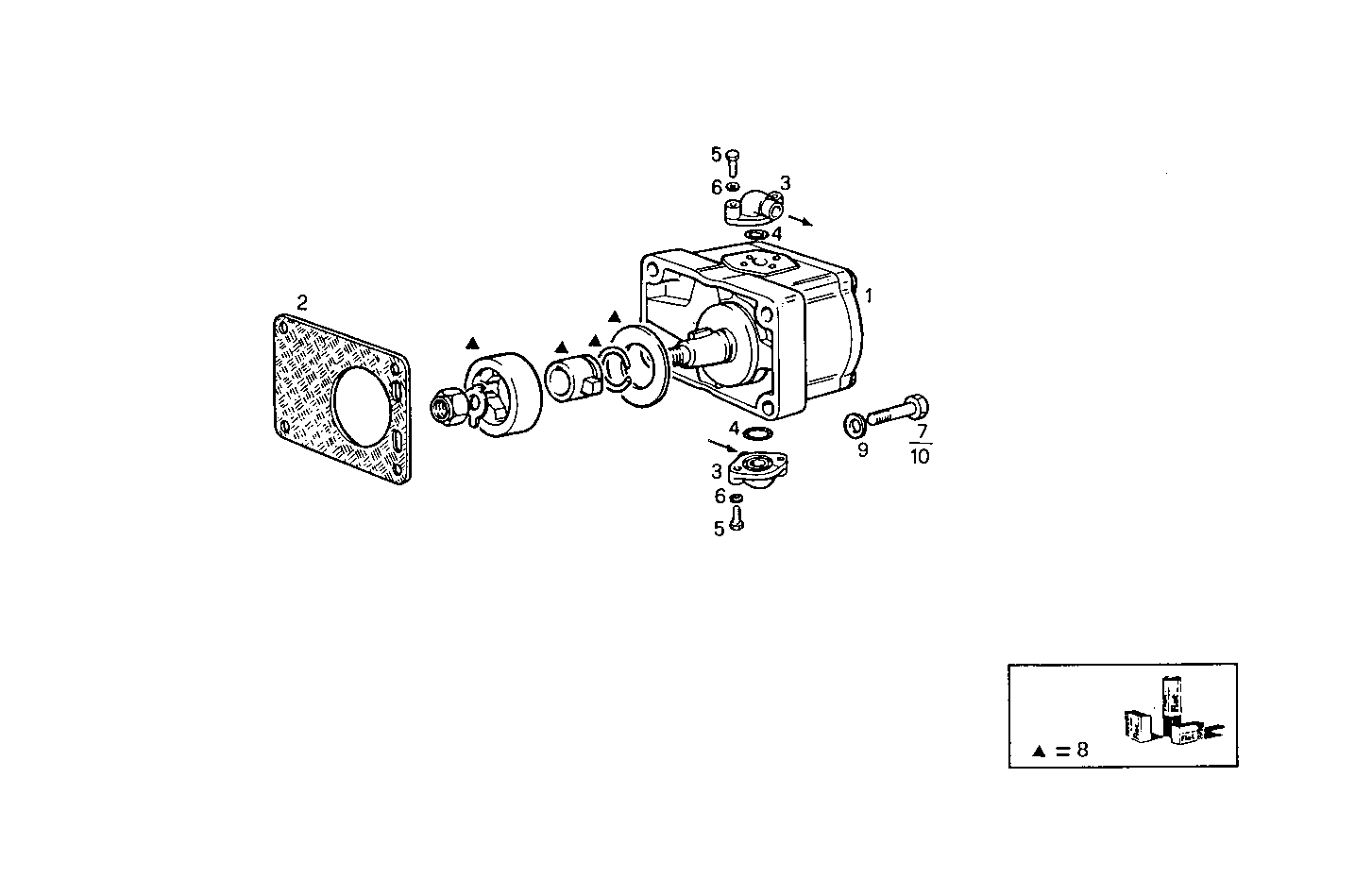

HYDRAULIC PUMP
Assembly ID: A09060003
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 5120969 | HYDRAULIC PUMP | 1 | ||
| 2 | 4850986 | FLAT ENGINE GASKET | 1 | ||
| 3 | 4670953 | PIPE SOCKET | 2 | ||
| 4 | 17281781 | O-RING | 2 | ||
| 5 | 16689424 | SOCKET-HEAD SCREW | 4 | ||
| 6 | 17088474 | WASHER | 4 | ||
| 7 | 16690824 | CYLIND-HEAD SCREW | 3 | ||
| 8 | 8090343 | KIT-HYDRAULIC PUMP | 1 | ||
| 9 | 4736331 | WASHER | 4 | ||
| 10 | 16604724 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141i07.01 | 8141i07 | view |
| 8141i67.01 | 8141i67 | view |
| 8141Si27.02 | 8141Si27 | view |
