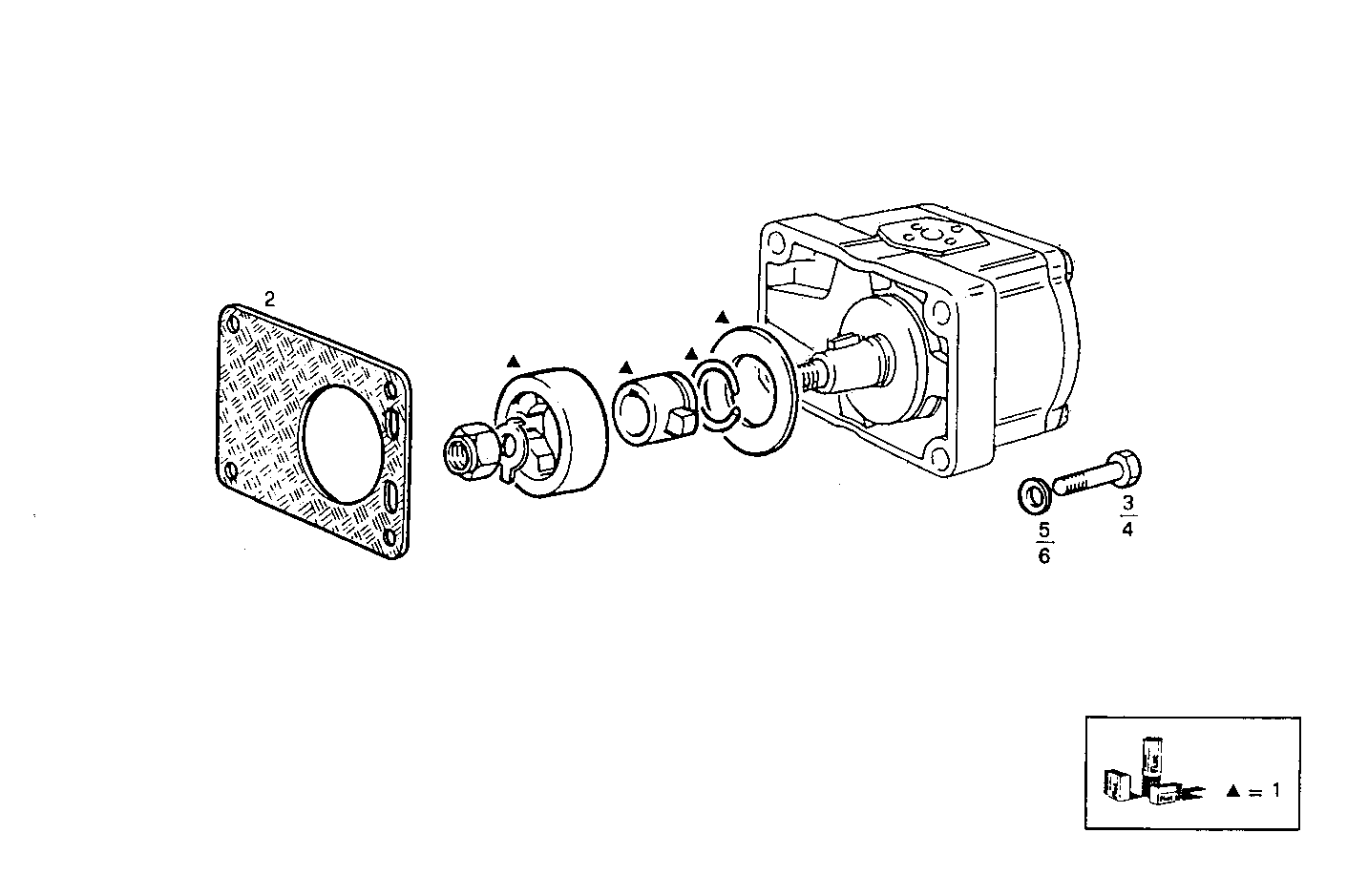

ARRANGED FOR HYDRAULIC PUMP
Assembly ID: A09080014
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8090343 | KIT-HYDRAULIC PUMP | 1 | ||
| 2 | 4850986 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16604724 | HEXAGON BOLT | 1 | ||
| 4 | 16605824 | HEXAGON BOLT | 3 | ||
| 5 | 4736331 | WASHER | 1 | ||
| 6 | 17089474 | SPRING WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140C00.00 | 8140C00 | view |
| 8141C67.03A005 | 8141C67 | view |
| 8141i07.01 | 8141i07 | view |
| 8141i67.01 | 8141i67 | view |
| 8141Si27.02 | 8141Si27 | view |
| 8140SE00.00A012 | 8140SE00 | view |
| 8140SE00.00A015 | 8140SE00 | view |
| 8140SE00.00A016 | 8140SE00 | view |
| 8140SRC30.20A002 | 8140SRC30 | view |
