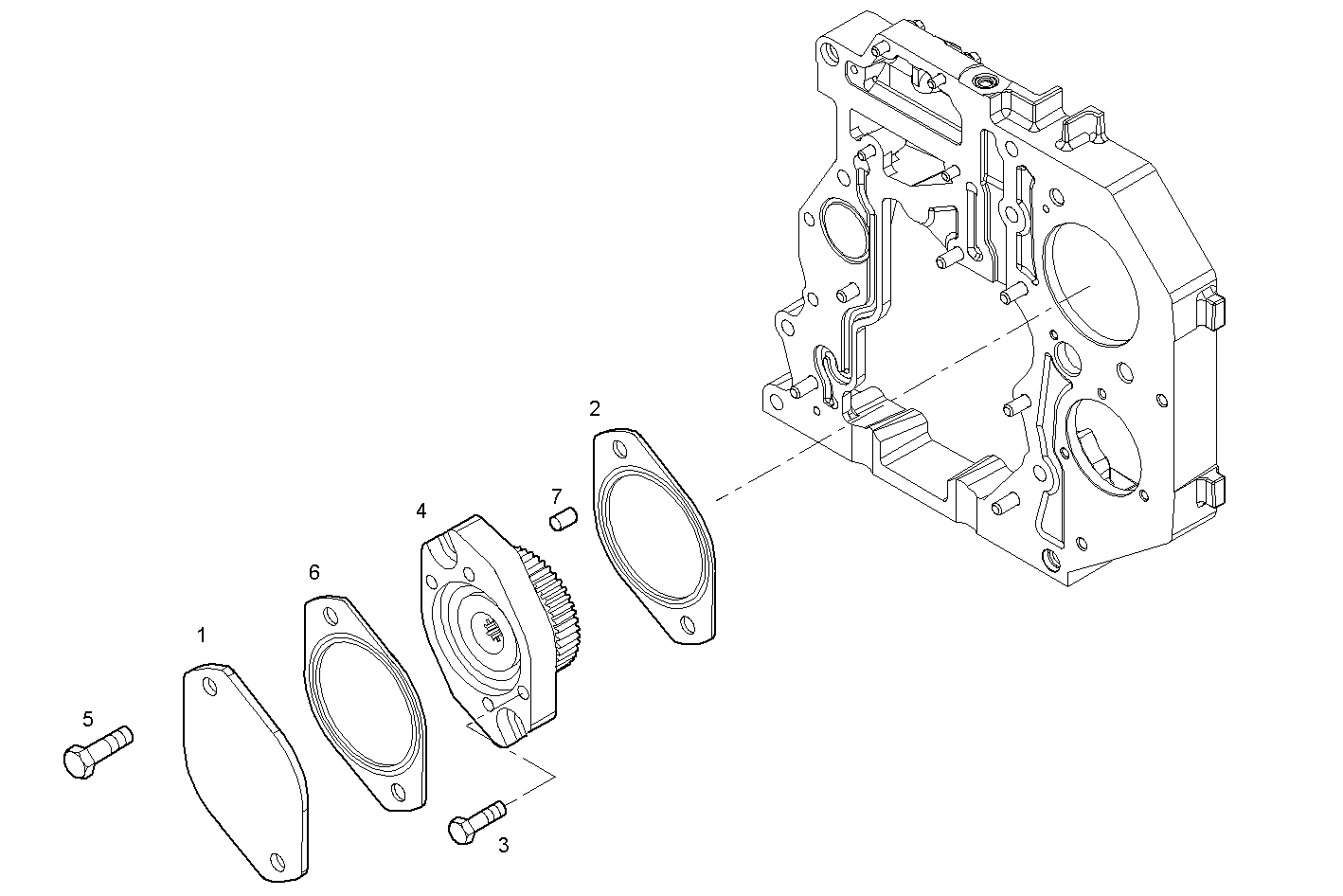

ARRANGED FOR HYDRAULIC PUMP
Assembly ID: A09080501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504024782 | COVER | 1 | ||
| 2 | 4896897 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16678135 | HEXAGON BOLT | 2 | ||
| 4 | 504074770 | POWER TAKE OFF | 1 | ||
| 5 | 18139424 | HEXAGON BOLT | 2 | ||
| 6 | 504024783 | FLAT ENGINE GASKET | 1 | ||
| 7 | 504074786 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTE20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N40ENTE20.00 | NEF 4 electron. - TIER 2 | view |
| N60ENTE20.00 | NEF 6 electron. - TIER 2 | view |
| N40ENTU20.00 | NEF 4 electron. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N60ENTU20.00 | NEF 6 electron. - TIER 2 | view |
| N67MNAU00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTU20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTE21.00A001 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N60ENTD20.00 | NEF 6 electron. - TIER 2 | view |
| N67MNTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTX20.00A011 | NEF 4 mechanic. - TIER 3 | view |
| N67MNTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N40ENTD20.00 | NEF 4 electron. - TIER 2 | view |
| N40ENTC21.00A016 | NEF 4 electron. - EURO 3 | view |
| N67MNTD20.00A002 | NEF 6 mechanic. - TIER 2 | view |
| N67ENTX20.00 | NEF 6 electron. - TIER 3 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| N45ENTX20.00 | NEF 4 electron. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N67MNTX21.00A001 | NEF 6 mechanic. - TIER 3 | view |
| N67ENTX20.00A004 | NEF 6 electron. - TIER 3 | view |
| N45ENTX20.00A003 | NEF 4 electron. - TIER 3 | view |
| N45ENTX20.00A004 | NEF 4 electron. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00A001 | NEF 4 mechanic. - TIER 3 | view |
| N40ENT426.00A014 | NEF 4 electron. - EURO 4 | view |
| N67MNTX20.00A010 | NEF 6 mechanic. - TIER 3 | view |
