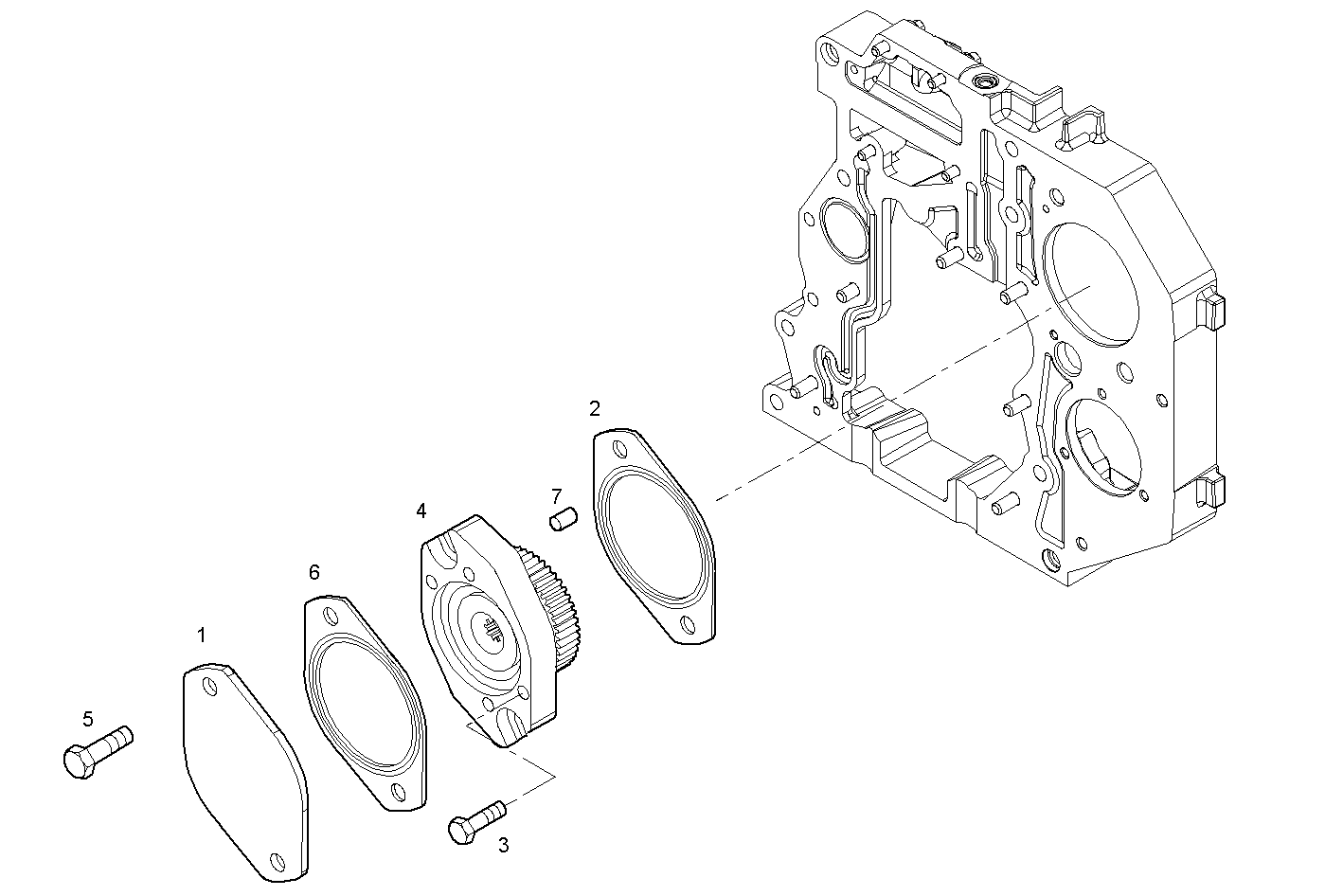

ARRANGED FOR HYDRAULIC PUMP
Assembly ID: A09080503
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504024782 | COVER | 1 | ||
| 2 | 4896897 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16678135 | HEXAGON BOLT | 2 | ||
| 4 | 504074770 | POWER TAKE OFF | 1 | ||
| 5 | 18139424 | HEXAGON BOLT | 2 | ||
| 6 | 504024783 | FLAT ENGINE GASKET | 1 | ||
| 7 | 504074786 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSAD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSSD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A011 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX00.50 | NEF 4 mechanic. - TIER 3 | view |
