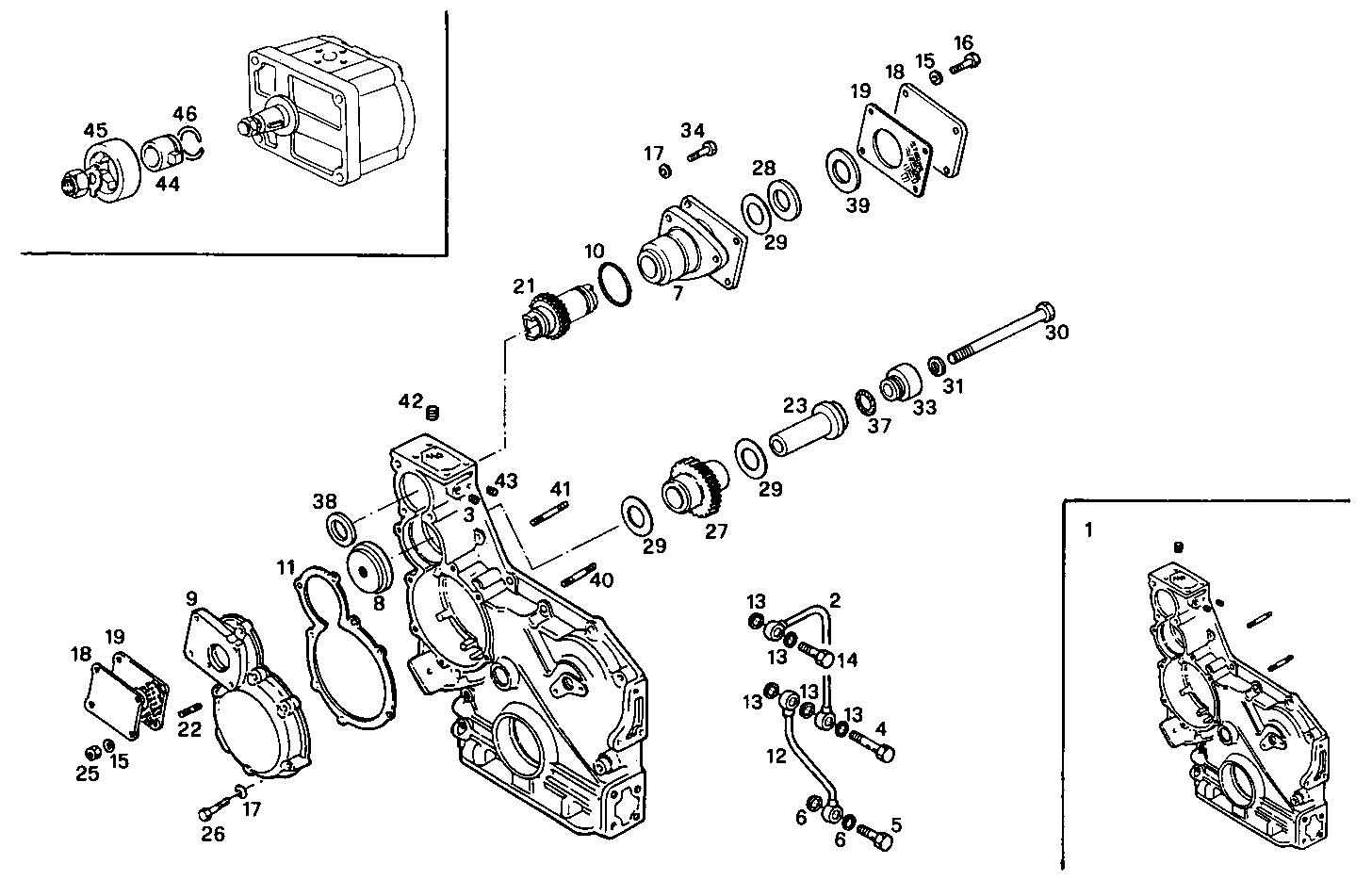

| 1 |
8107926
|
COVER
|
|
1
|
|
| 2 |
4766747
|
OIL LINE
|
|
1
|
|
| 3 |
4560434
|
PLUG
|
|
1
|
|
| 4 |
4930504
|
SCREW CONNECTOR
|
|
1
|
|
|
8016191 |
SCREW CONNECTOR |
|
1 |
|
| 5 |
4864080
|
SCREW CONNECTOR
|
|
2
|
|
| 6 |
4858606
|
GASKET
|
|
4
|
|
| 7 |
4767038
|
SUPPORT
|
|
1
|
|
| 8 |
4766827
|
SUPPORT
|
|
1
|
|
| 9 |
4718711
|
COVER
|
|
1
|
|
| 10 |
14460181
|
O-RING
|
|
1
|
|
| 11 |
4796117
|
GASKET
|
|
1
|
|
| 12 |
8012373
|
OIL LINE
|
|
1
|
|
| 13 |
4858607
|
WASHER
|
|
5
|
|
| 14 |
4864082
|
BANJO BOLT
|
|
1
|
|
| 15 |
11197779
|
SPRING WASHER
|
|
8
|
|
|
17088474 |
SPRING WASHER |
|
8 |
|
| 16 |
10902221
|
HEXAGON BOLT
|
|
4
|
|
|
16603625 |
HEXAGON BOLT |
|
4 |
|
| 17 |
11193879
|
SPRING WASHER
|
|
10
|
|
|
17089474 |
SPRING WASHER |
|
10 |
|
| 18 |
564530
|
COVER
|
|
2
|
|
| 19 |
4851385
|
FLAT ENGINE GASKET
|
|
2
|
|
| 21 |
4724168
|
SHAFT
|
|
1
|
|
| 22 |
4733825
|
STUD
|
|
4
|
|
| 23 |
4766736
|
PIN
|
|
1
|
|
| 25 |
15896211
|
HEXAGON NUT
|
|
4
|
|
|
17037821 |
HEXAGON NUT |
|
4 |
|
| 26 |
16044121
|
HEXAGON BOLT
|
|
7
|
|
| 27 |
4766826
|
GEAR
|
|
1
|
|
| 28 |
4755621
|
RING
|
|
1
|
|
| 29 |
4667452
|
SUPPORT RING
|
|
3
|
|
| 30 |
11114121
|
HEXAGON BOLT
|
|
1
|
|
| 31 |
98474306
|
WASHER
|
|
1
|
|
| 33 |
4766738
|
SPACING BAR
|
|
1
|
|
| 34 |
16043821
|
HEXAGON BOLT
|
|
1
|
|
| 35 |
15971821
|
SCREW
|
|
1
|
|
| 36 |
15972021
|
HEXAGON BOLT
|
|
1
|
|
| 37 |
14458281
|
O-RING
|
|
1
|
|
|
98465110 |
O-RING |
|
1 |
|
| 38 |
4609538
|
CENTERING RING
|
|
1
|
|
| 39 |
4543246
|
CENTERING RING
|
|
1
|
|
| 40 |
12430121
|
STUD
|
|
1
|
|
| 41 |
12429821
|
STUD
|
|
3
|
|
| 42 |
14323911
|
LOCK PLUG
|
|
1
|
|
| 43 |
10268350
|
LOCK PLUG
|
|
2
|
|
| 44 |
8011614
|
HUB
|
|
2
|
|
| 45 |
4621358
|
RING
|
|
2
|
|
|
2997027 |
RING |
|
2 |
|
|
5118569 |
RING |
|
2 |
|
| 46 |
13398376
|
CIRCLIP
|
|
2
|
|
