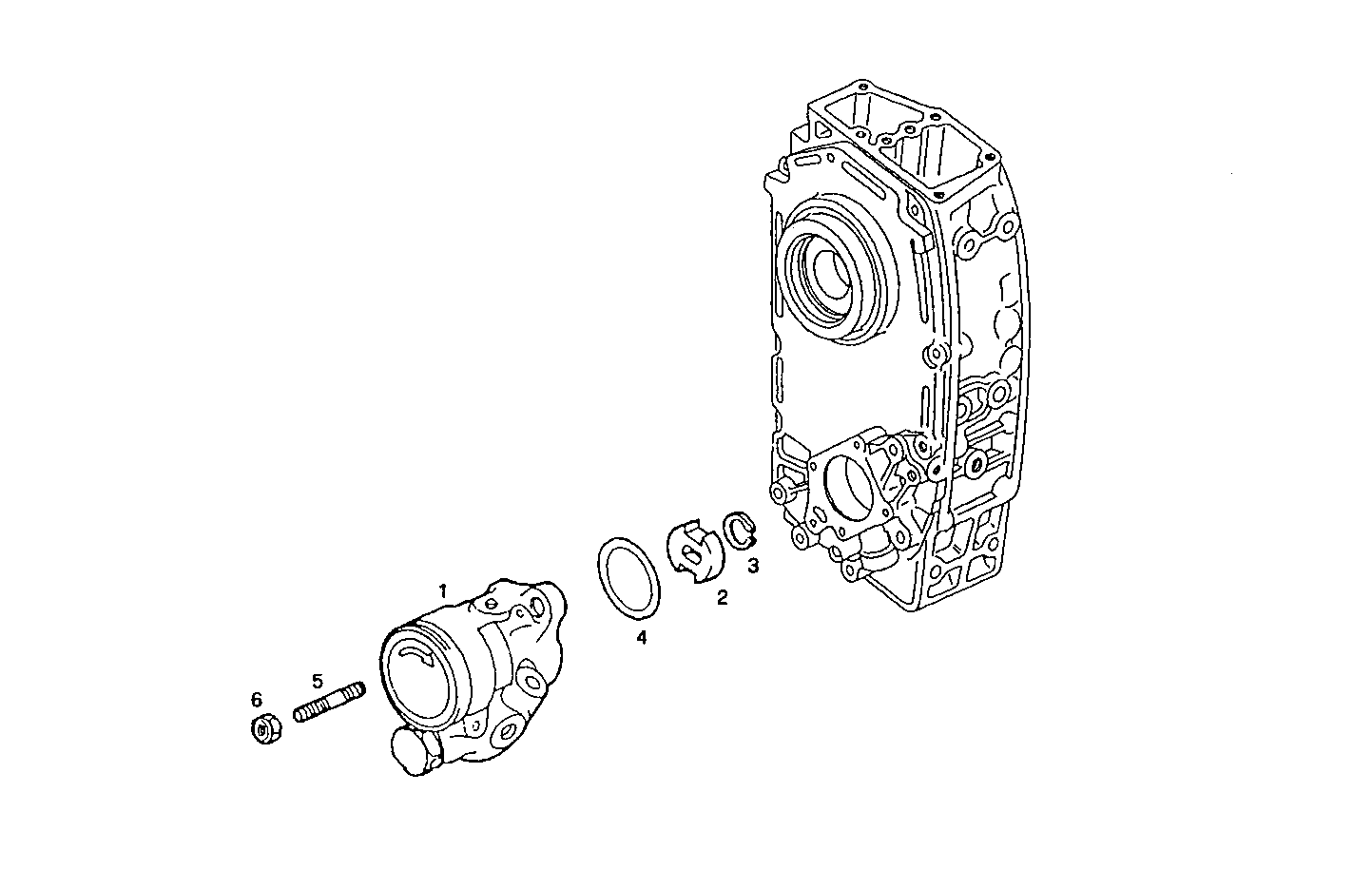

FRONT HYDRAULIC PUMP ZF
Assembly ID: A09110001-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4808780 | HYDRAULIC PUMP | 1 | ||
| 2 | 4702044 | NOTCHED PLATE | 1 | ||
| 3 | 16865776 | CIRCLIP | 1 | ||
| 4 | 17283880 | O-RING | 1 | ||
| 5 | 13449521 | STUD | 2 | ||
| 6 | 14059411 | HEXAGON NUT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141i07.00 | 8141i07 | view |
| 8141i07.01 | 8141i07 | view |
| 8141i67.01 | 8141i67 | view |
