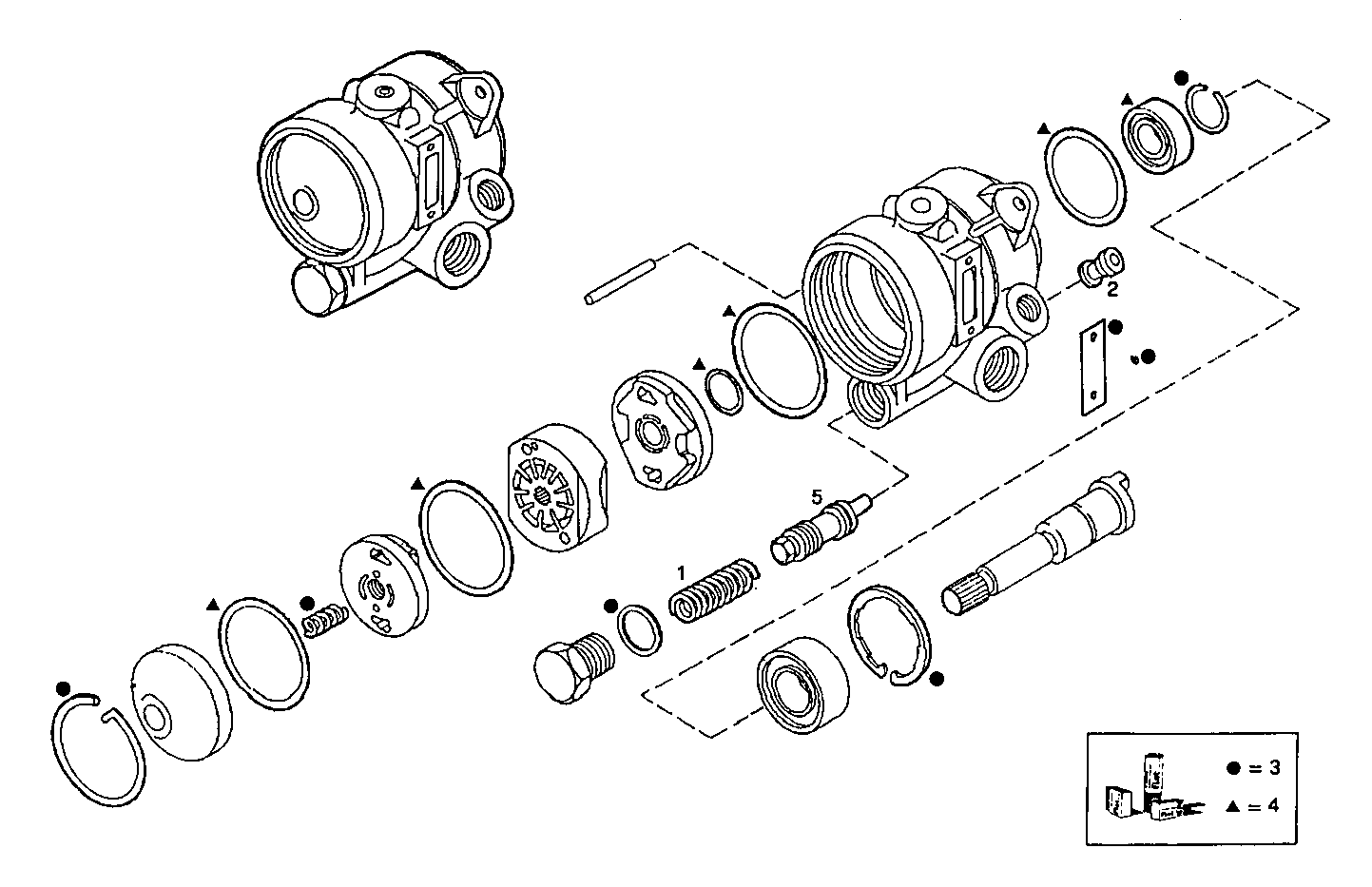

FRONT HYDRAULIC PUMP ZF
Assembly ID: A09110001-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2914063 | SPRING | 1 | ||
| 2 | 8121276 | PLUG | 1 | ||
| 3 | 8124295 | KIT-HYDRAULIC PUMP | 1 | ||
| 4 | 42490520 | KIT-HYDRAULIC PUMP | 1 | ||
| 5 | 7984651 | VALVE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141i07.00 | 8141i07 | view |
| 8141i07.01 | 8141i07 | view |
| 8141i67.01 | 8141i67 | view |
