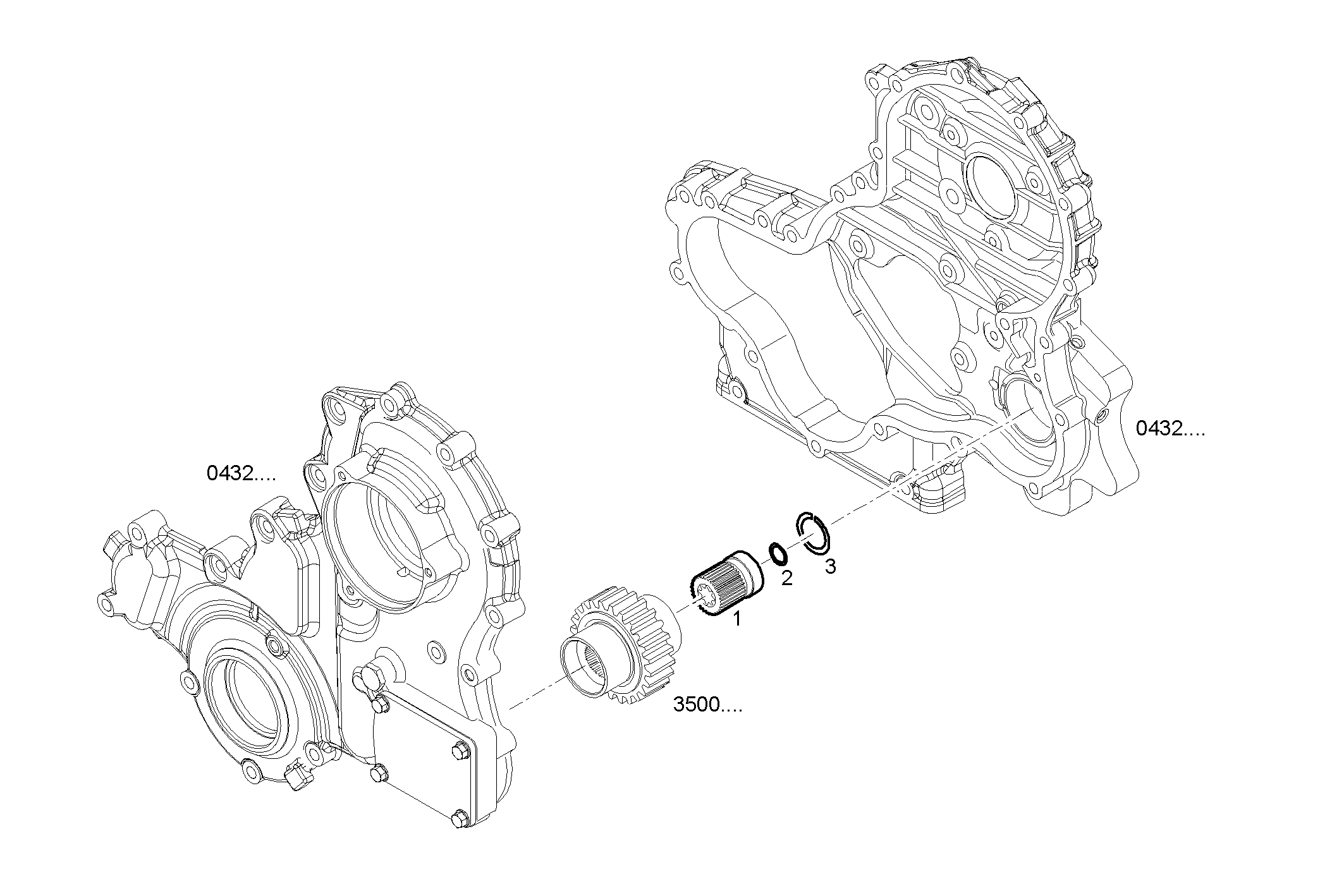

ARRANGED FOR HYDRAULIC PUMP
Assembly ID: A09280513
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504240758 | PTO SHAFT | 1 | ||
| 2 | 17084476 | CIRCLIP | 1 | ||
| 3 | 17082976 | SPRING LOCKWASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNSX01.00 | F32 mechanic. - TIER 3 | view |
| F32MNSX00.00 | F32 mechanic. - TIER 3 | view |
| F32MNTX20.00 | F32 mechanic. - TIER 3 | view |
