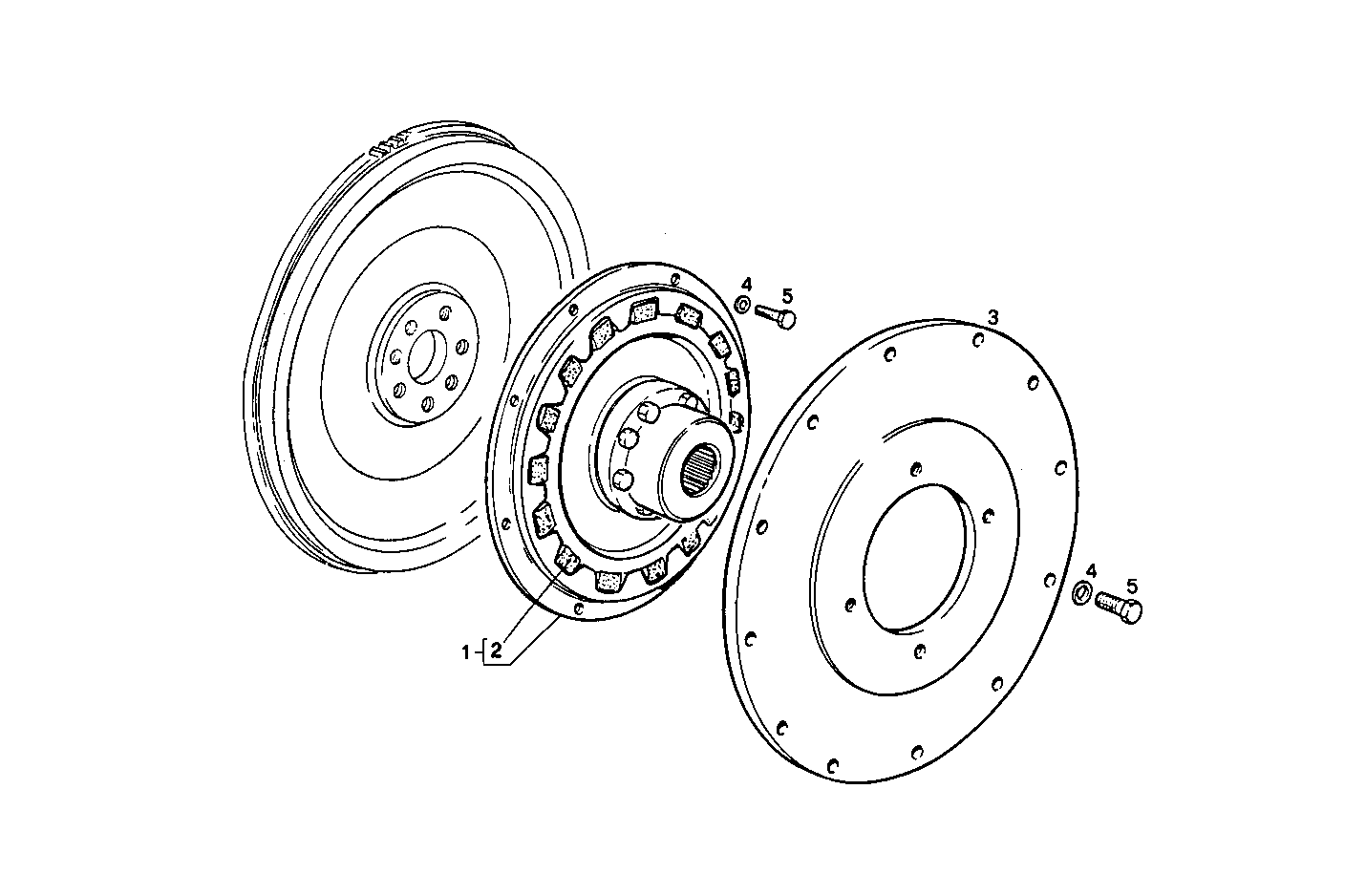

FLYWHEEL ARRANGED FOR TRANSMISSION
Assembly ID: A13050006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8107420 | FLEXIBLE COUPLING | 1 | ||
| 2 | 4931816 | DOWEL | 20 | ||
| 3 | 8101679 | FLANGE | 1 | ||
| 4 | 11198371 | SPRING WASHER | 20 | ||
| 5 | 15004021 | HEXAGON BOLT | 20 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061i05.00 | 8061i05 | view |
| 8061i25.00 | 8061i25 | view |
| 8061i05.05 | 8061i05 | view |
| 8061i25.05 | 8061i25 | view |
