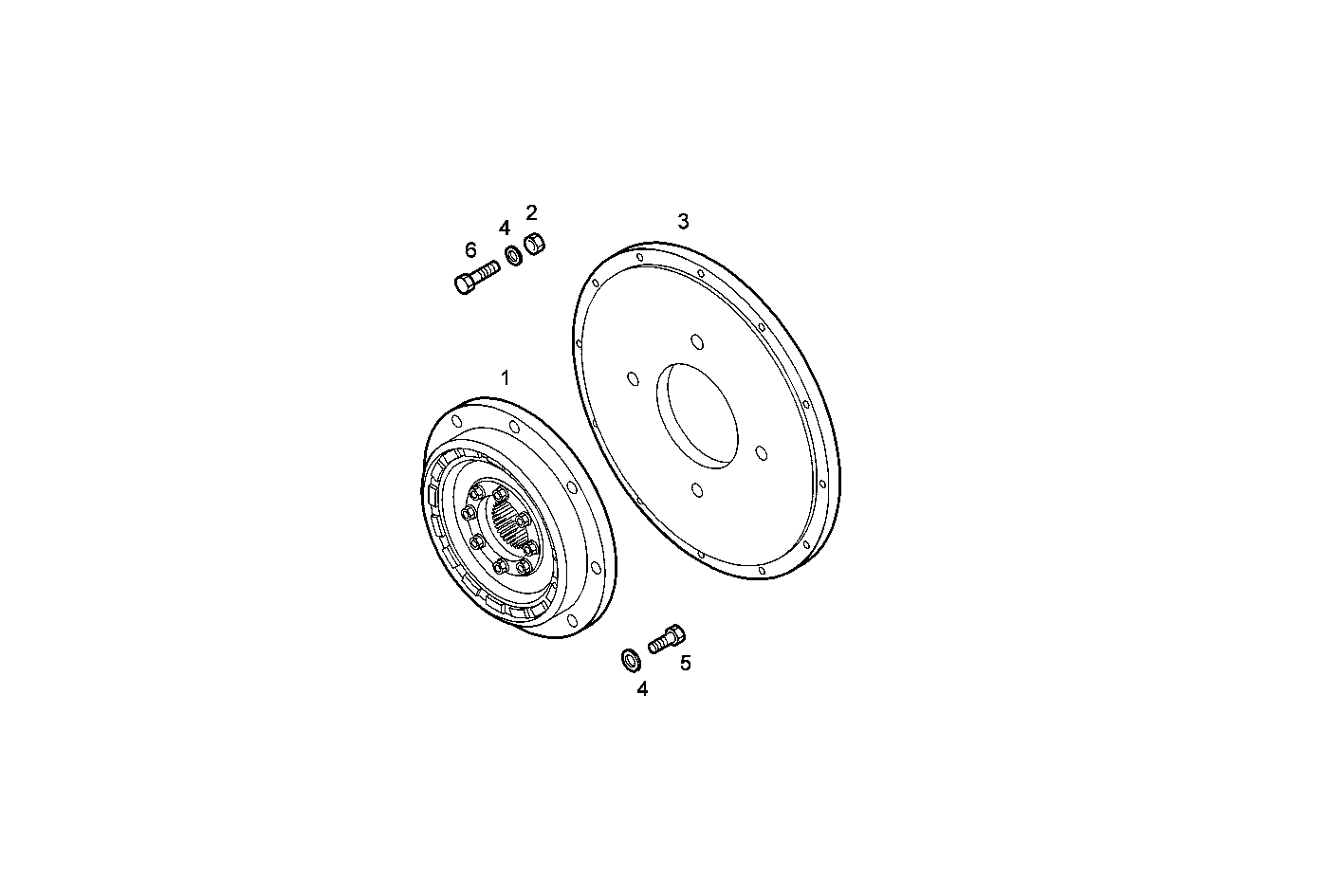

FLYWHEEL ARRANGED FOR TRANSMISSION
Assembly ID: A13060503
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8107310 | FLEXIBLE COUPLING | 1 | ||
| 2 | 17038131 | HEXAGON NUT | 12 | ||
| 3 | 8101679 | FLANGE | 1 | ||
| 4 | 17090174 | SPRING WASHER | 20 | ||
| 5 | 16748524 | STUD | 12 | ||
| 6 | 16607625 | SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N40ENTE20.00 | NEF 4 electron. - TIER 2 | view |
| N40ENTU20.00 | NEF 4 electron. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N67MNAU00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N40ENTD20.00 | NEF 4 electron. - TIER 2 | view |
| N45ENTX20.00 | NEF 4 electron. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
