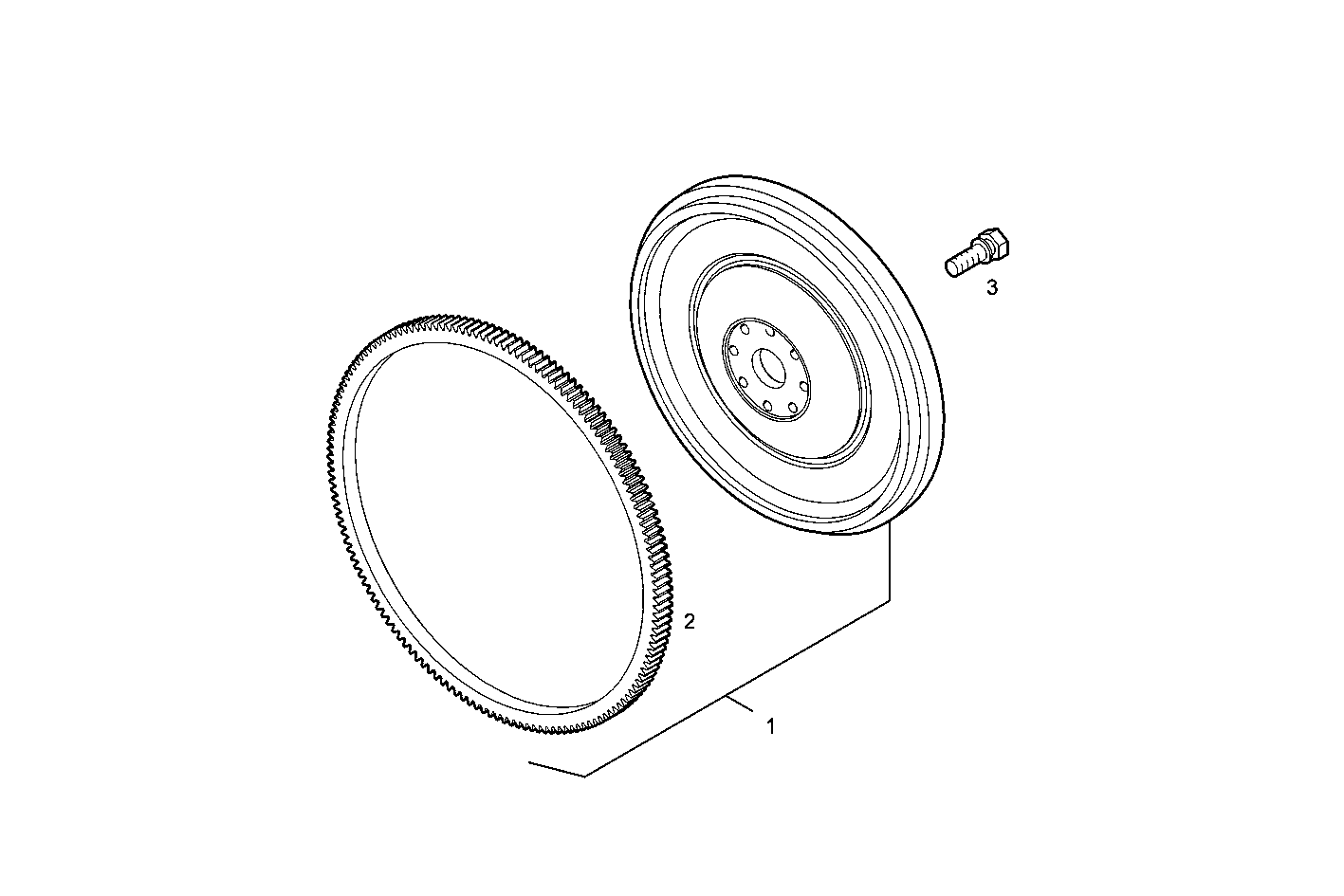

FLYWHEEL ARRANGEMENT
Assembly ID: A13100501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504018482 | FLYWHEEL | 1 | ||
| 2 | 500388140 | RING GEAR | 1 | ||
| 3 | 4894641 | HEXAGON BOLT | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNTF40.10 | NEF 4 mechanic. | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX00.50 | NEF 4 mechanic. - TIER 3 | view |
