ARRANGED FOR GEAR ZF

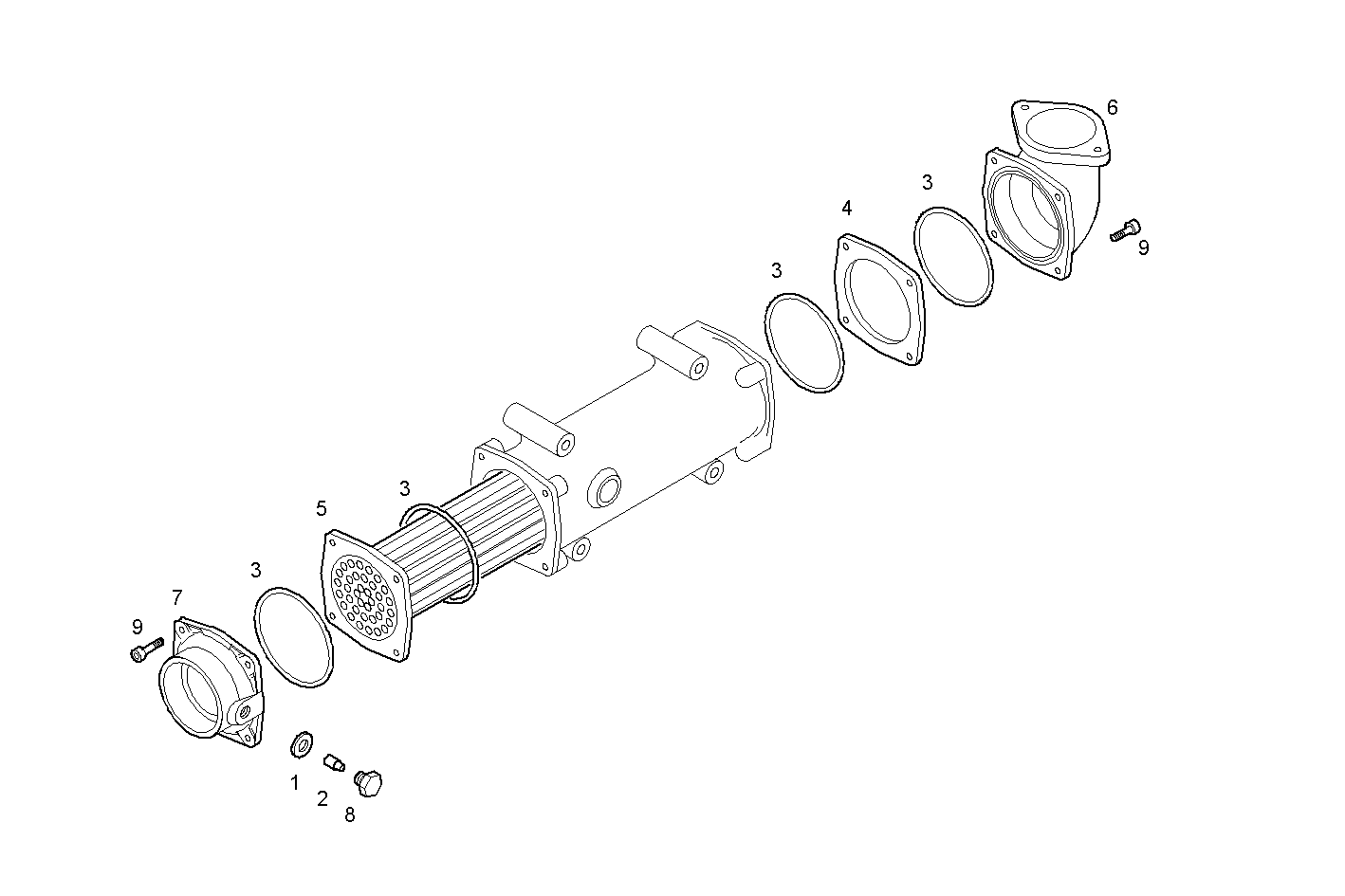

Assembly ID: A13115501-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489020 | SEAL GASKET | 1 | ||
| 2 | 8105277 | SACRIFICAL ANODE | 1 | ||
| 3 | 8041542 | O-RING | 4 | ||
| 4 | 8041541 | SPACING BAR | 1 | ||
| 5 | 8041540 | TUBE STACK | 1 | ||
| 6 | 8041539 | HEAT EXCHANG.COVER | 1 | ||
| 7 | 8041538 | HEAT EXCHANG.COVER | 1 | ||
| 8 | 4917793 | PLUG | 1 | ||
| 9 | 16690924 | CYLIND-HEAD SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
