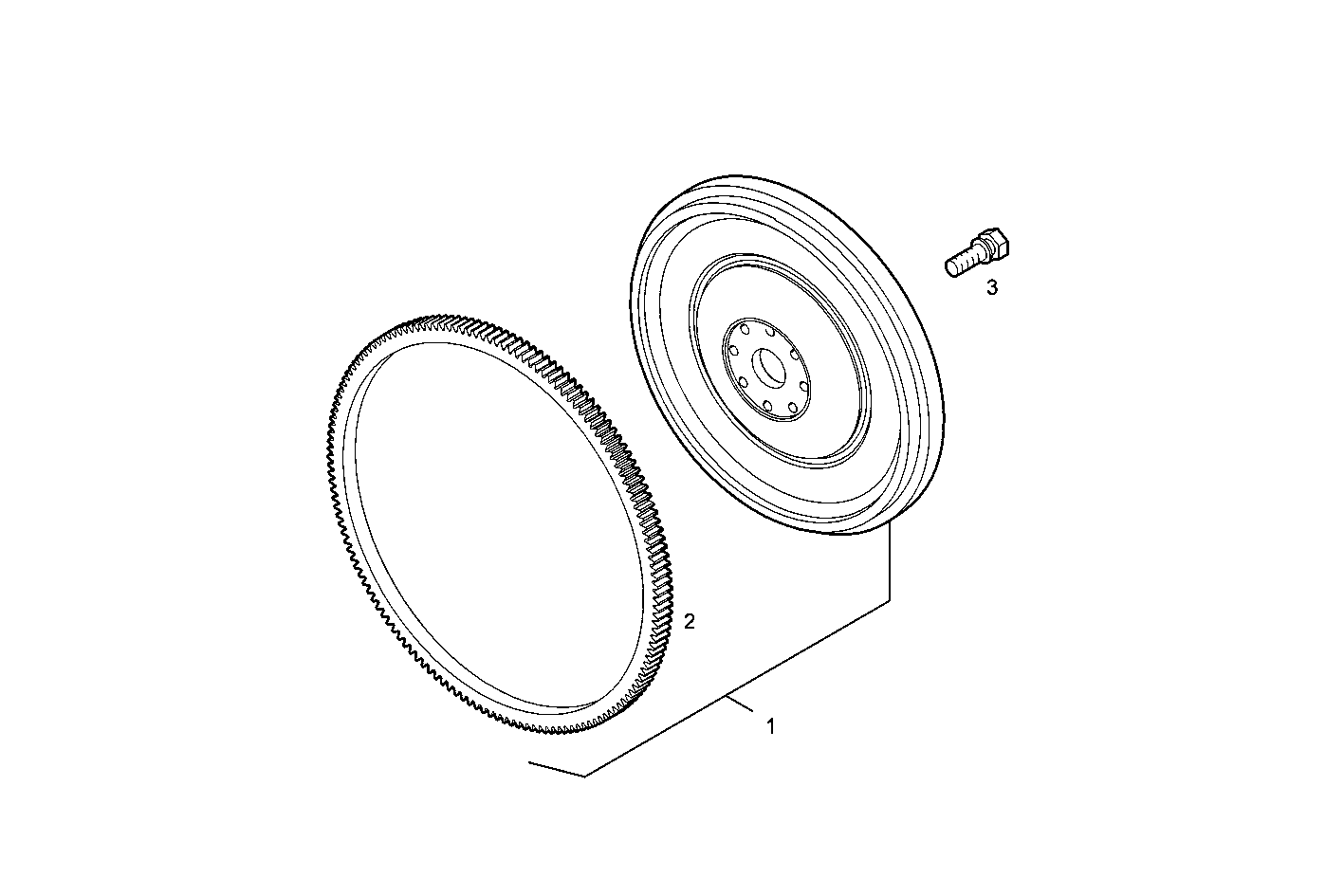

FLYWHEEL ARRANGED FOR TRANSMISSION
Assembly ID: A13230502
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504005021 | FLYWHEEL | 1 | ||
| 2 | 500388140 | RING GEAR | 1 | ||
| 3 | 4894641 | HEXAGON BOLT | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTE20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N40ENTE20.00 | NEF 4 electron. - TIER 2 | view |
| N60ENTE20.00 | NEF 6 electron. - TIER 2 | view |
| N40ENTU20.00 | NEF 4 electron. - TIER 2 | view |
| N60ENTU20.00 | NEF 6 electron. - TIER 2 | view |
| N67MNAU00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTU20.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N60ENTD20.00 | NEF 6 electron. - TIER 2 | view |
| N67MNTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MSTD20.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTD23.00 | NEF 6 mechanic. - TIER 2 | view |
| N40ENTD20.00 | NEF 4 electron. - TIER 2 | view |
| N67ENTX20.00 | NEF 6 electron. - TIER 3 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| N45ENTX20.00 | NEF 4 electron. - TIER 3 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX00.50 | NEF 4 mechanic. - TIER 3 | view |
