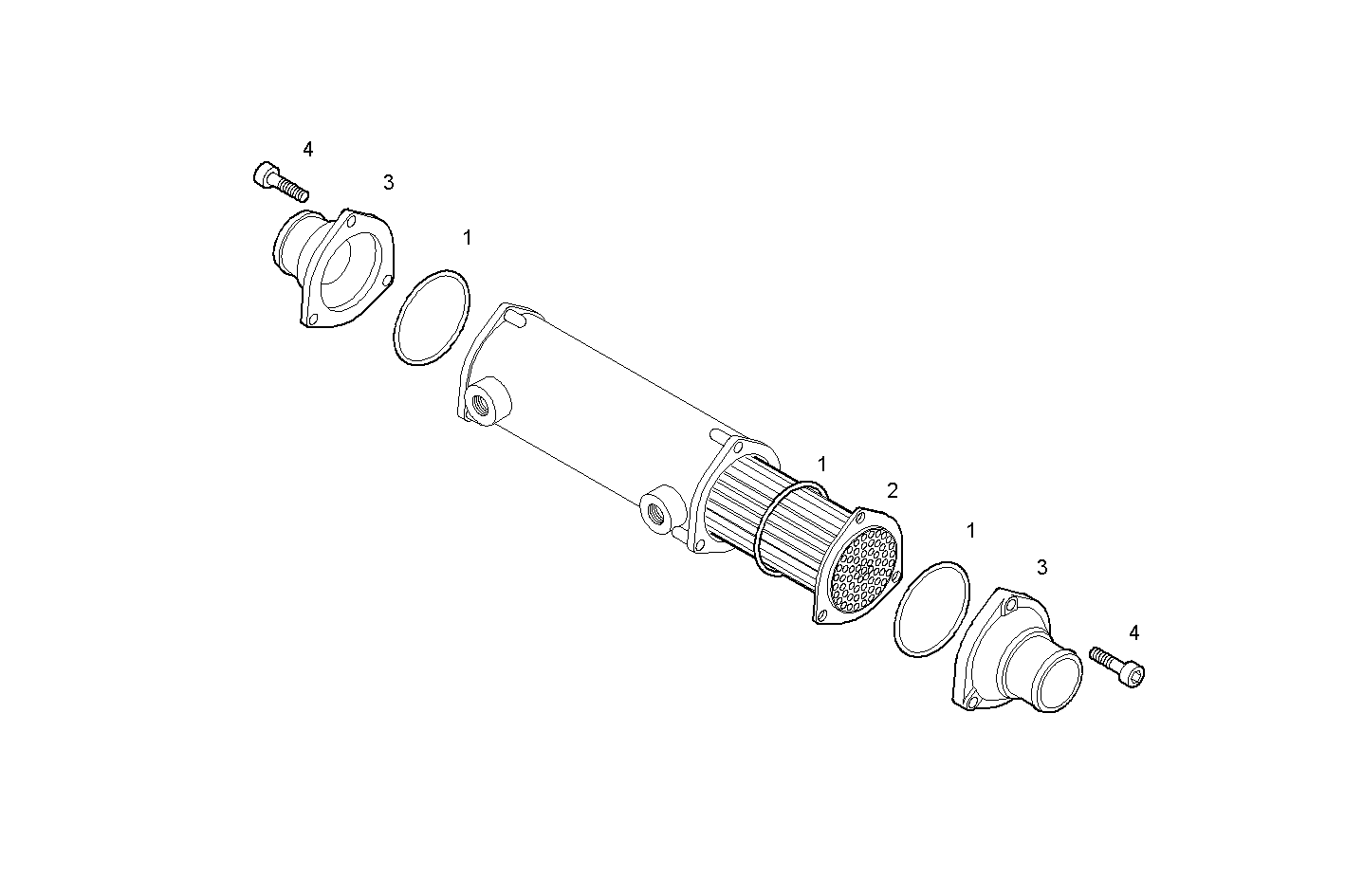

ARRANGED FOR GEAR MG
Assembly ID: A13620502-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8006531 | O-RING | 3 | ||
| 2 | 8093997 | TUBE STACK | 1 | ||
| 3 | 8093996 | HEAT EXCHANG.COVER | 2 | ||
| 4 | 16689424 | SOCKET-HEAD SCREW | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N60ENTM37.10 | NEF 6 electron. | view |
| N60ENTM40.10 | NEF 6 electron. | view |
| N67ENTM45.10 | NEF 6 electron. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
