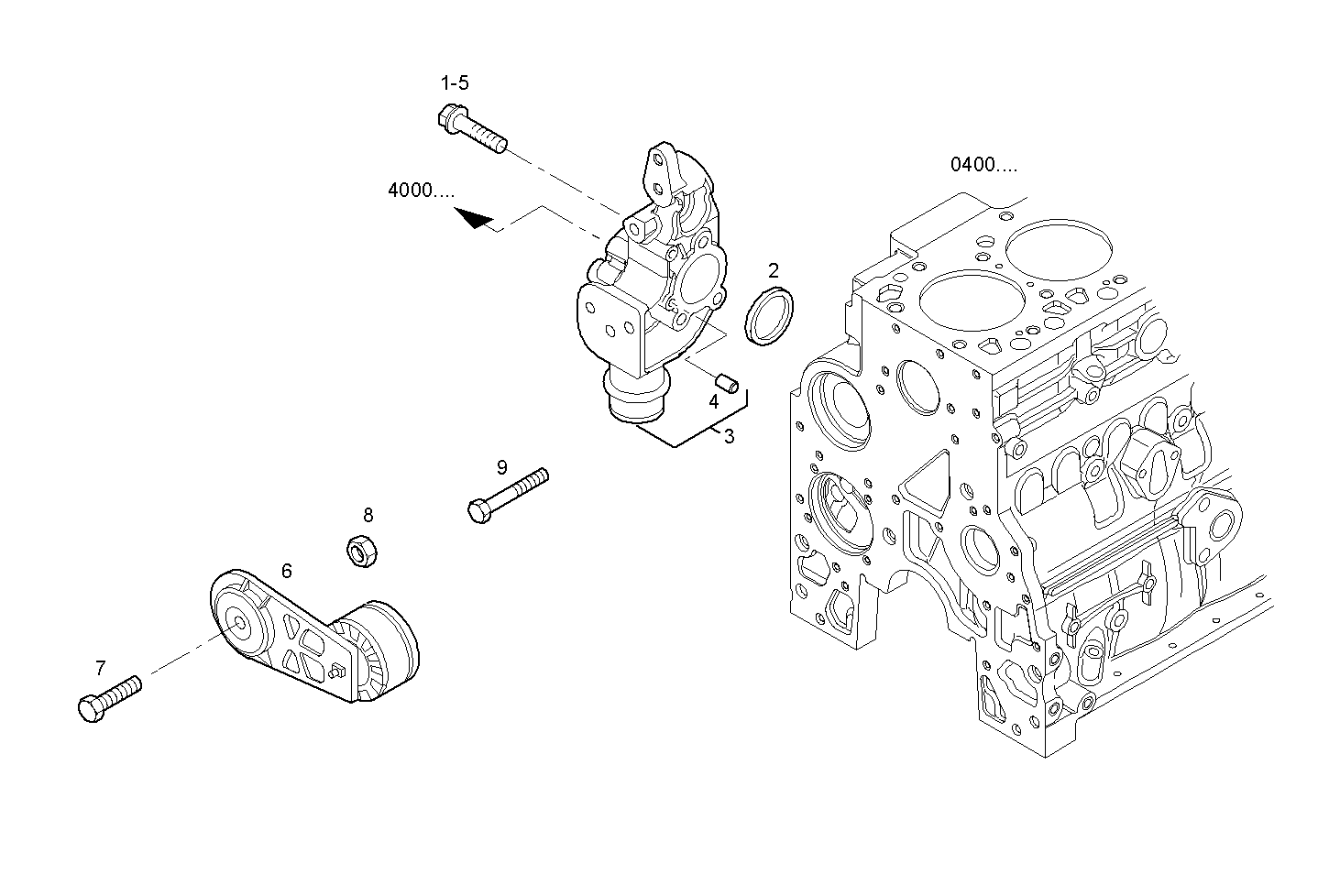

BELT STRETCHER
Assembly ID: A14080503
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4895292 | HEXAGON BOLT | 1 | ||
| 2 | 504062710 | WASHER | 1 | ||
| 3 | 504062633 | GENERATOR SUPPORT | 1 | ||
| 4 | 4895576 | DOWEL PIN | 2 | ||
| 5 | 16599125 | HEXAGON BOLT | 2 | ||
| 6 | 8033581 | BELT TENSIONER | 1 | ||
| 7 | 16598924 | HEXAGON BOLT | 1 | ||
| 8 | 16984335 | NUT | 1 | ||
| 9 | 16587125 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSAD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSSD00.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N67MSAE00.00 | NEF 6 mechanic. - TIER 2 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX00.50 | NEF 4 mechanic. - TIER 3 | view |
