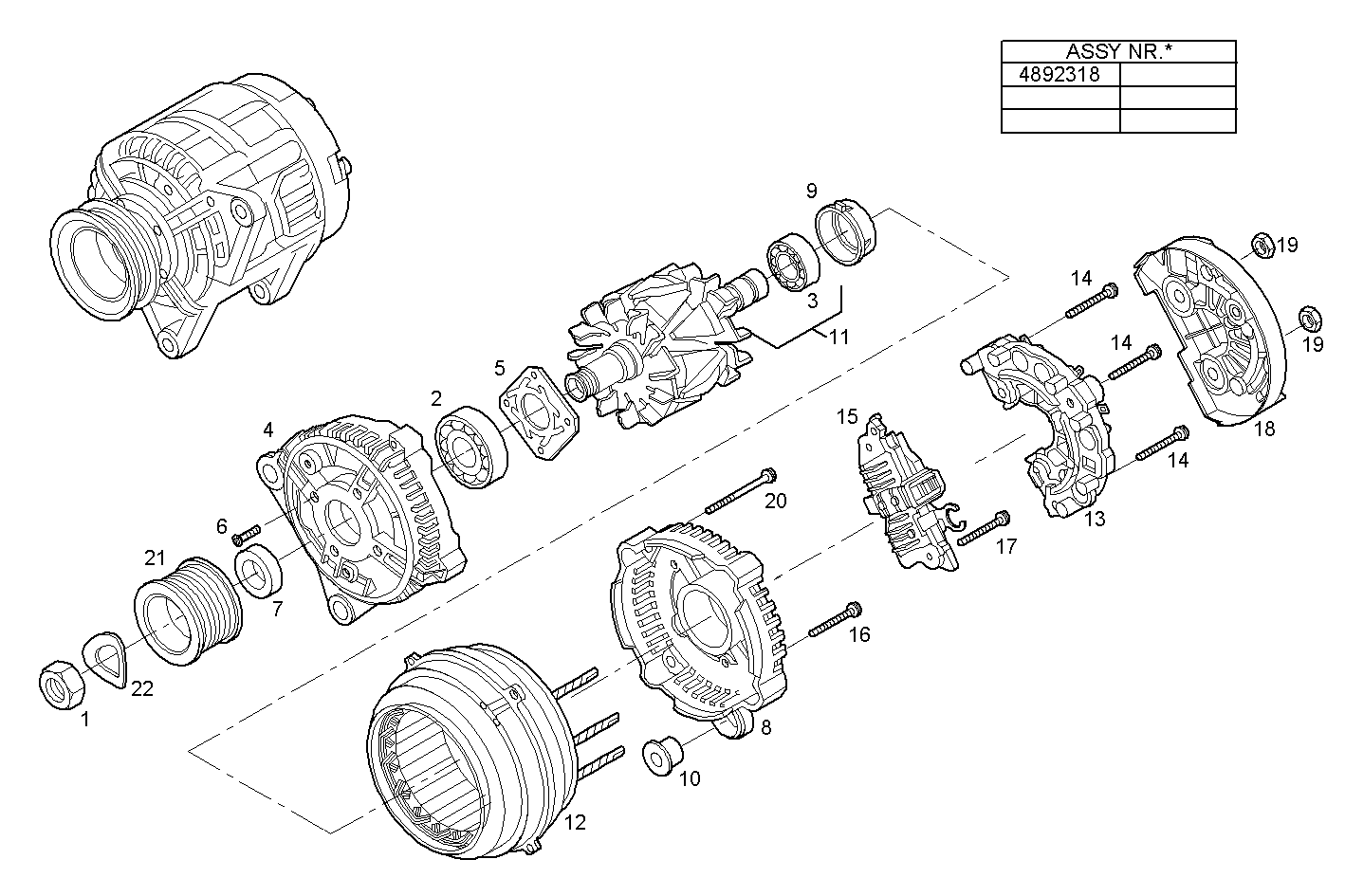

| 1 |
1113178
|
NUT
|
|
1
|
|
| 2 |
2991636
|
ENGINE BEARINGS
|
|
1
|
|
| 3 |
2991637
|
ENGINE BEARINGS
|
|
1
|
|
| 4 |
42537056
|
GENERATOR SUPPORT
|
|
1
|
|
| 5 |
42537057
|
PLATE
|
|
1
|
|
| 6 |
42537058
|
C'SUNK SCREW
|
|
4
|
|
| 7 |
42533805
|
SPACING BAR
|
|
1
|
|
| 8 |
42537670
|
GENERATOR SUPPORT
|
|
1
|
|
| 9 |
42533807
|
RING
|
|
1
|
|
| 10 |
42537051
|
BUSH
|
|
2
|
|
| 11 |
42537060
|
GENERATOR ROTOR
|
|
1
|
|
| 12 |
42537061
|
GENERATOR STATOR
|
|
1
|
|
| 13 |
42537054
|
RECTIFIER BRIDGE
|
|
1
|
|
|
42558029 |
RECTIFIER BRIDGE |
|
1 |
|
| 14 |
42537878
|
SCREW
|
|
3
|
|
| 15 |
42540208
|
VOLTAGE REGULATOR
|
|
1
|
|
| 16 |
42536305
|
SCREW
|
|
1
|
|
|
42559487 |
SCREW |
|
1 |
|
| 17 |
42536304
|
SCREW
|
|
2
|
|
|
42559488 |
SCREW |
|
2 |
|
| 18 |
42533816
|
GENERATOR SUPPORT
|
|
1
|
|
| 19 |
42533817
|
HEXAGON NUT
|
|
2
|
|
|
42556263 |
HEXAGON NUT |
|
2 |
|
| 20 |
42533819
|
SCREW
|
|
4
|
|
| 21 |
42535631
|
GENERATOR PULLEY
|
|
1
|
|
|
42566793 |
GENERATOR PULLEY |
|
1 |
|
| 22 |
42531183
|
SPRING WASHER
|
|
1
|
|
