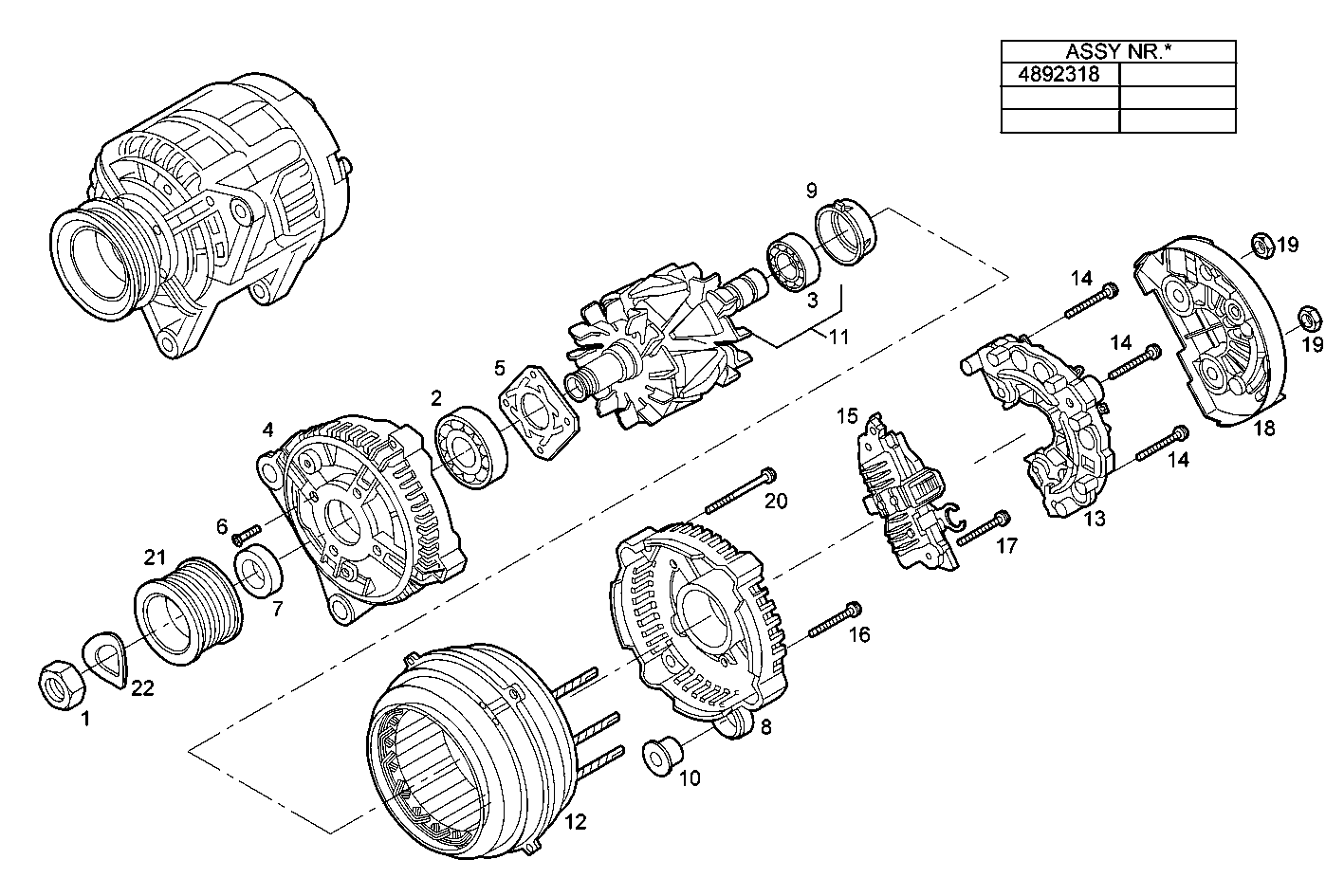

GENERATOR (COMPONENTS)

Assembly ID: A14170504-02

Parts

#	Part number	Description	Quantity
1	1113178	NUT	1
2	2991636	ENGINE BEARINGS	1
3	2991637	ENGINE BEARINGS	1
4	42537056	GENERATOR SUPPORT	1
5	42537057	PLATE	1
6	42537058	C'SUNK SCREW	4
7	42533805	SPACING BAR	1
8	42537670	GENERATOR SUPPORT	1
9	42533807	RING	1
10	42537051	BUSH	2
11	42537060	GENERATOR ROTOR	1
12	42537061	GENERATOR STATOR	1
13	42537054	RECTIFIER BRIDGE	1
	42558029	RECTIFIER BRIDGE	1
14	42537878	SCREW	3
15	42537055	VOLTAGE REGULATOR	1
16	42536305	SCREW	1
	42559487	SCREW	1
17	42536304	SCREW	2
	42559488	SCREW	2
18	42533816	GENERATOR SUPPORT	1
19	42533817	HEXAGON NUT	2
	42556263	HEXAGON NUT	2
20	42533819	SCREW	4
21	42535631	GENERATOR PULLEY	1
	42566793	GENERATOR PULLEY	1
22	42531183	SPRING WASHER	1

Applies to engines

Engine	Family
N45MSAD00.50	NEF 4 mechanic. - TIER 2	view
N67MNTE20.00	NEF 6 mechanic. - TIER 2	view
N45MNSE00.00	NEF 4 mechanic. - TIER 2	view
N67MNAE00.00	NEF 6 mechanic. - TIER 2	view
N45MNTE20.00	NEF 4 mechanic. - TIER 2	view
N45MNAE00.00	NEF 4 mechanic. - TIER 2	view
N45MNAU00.00	NEF 4 mechanic. - TIER 2	view
N45MNSU00.00	NEF 4 mechanic. - TIER 2	view
N45MNTU20.00	NEF 4 mechanic. - TIER 2	view
N67MNAU00.00	NEF 6 mechanic. - TIER 2	view
N67MNTU20.00	NEF 6 mechanic. - TIER 2	view
N45MNAD00.00	NEF 4 mechanic. - TIER 2	view
N45MNSD00.00	NEF 4 mechanic. - TIER 2	view
N45MNTD20.00	NEF 4 mechanic. - TIER 2	view
N67MNTD20.00	NEF 6 mechanic. - TIER 2	view
N45MSTD20.50	NEF 4 mechanic. - TIER 2	view
N45MSSD00.50	NEF 4 mechanic. - TIER 2	view
N45MNTD22.00	NEF 4 mechanic. - TIER 2	view
N45MSTD22.50	NEF 4 mechanic. - TIER 2	view
N67MSAE00.00	NEF 6 mechanic. - TIER 2	view
N67MNTD20.00A001	NEF 6 mechanic. - TIER 2	view
N45MNTX20.00A011	NEF 4 mechanic. - TIER 3	view
N67MNTX20.00A009	NEF 6 mechanic. - TIER 3	view
N67MSTD23.00	NEF 6 mechanic. - TIER 2	view
N67MSTD20.00	NEF 6 mechanic. - TIER 2	view
N67MNTD23.00	NEF 6 mechanic. - TIER 2	view
N67MNTE20.00A001	NEF 6 mechanic. - TIER 2	view
N67MNTD20.00A005	NEF 6 mechanic. - TIER 2	view
N45MNAE88.00	NEF 4 mechanic. - TIER 2	view
N67MNAM15.01	NEF 6 mechanic.	view
N67MNAM15.31	NEF 6 mechanic.	view
N67MNSM22.11	NEF 6 mechanic.	view
N67MNTM28.11	NEF 6 mechanic.	view
N67MNTM28.31	NEF 6 mechanic.	view
N45MNAM10.01	NEF 4 mechanic.	view
NEF45SM1.1A003	NEF 4 mechanic. - TIER 2	view
N45MNTE20.00-OM	NEF 4 mechanic. - TIER 2	view
N45MNSD00.00-OM	NEF 4 mechanic. - TIER 2	view
N45MNSD00.00A004	NEF 4 mechanic. - TIER 2	view
N45MNTD20.00A004	NEF 4 mechanic. - TIER 2	view
GENEF100M.A552	GENEF 4 mechanic. - TIER 2	view
GENEF100M.A72M	GENEF 4 mechanic. - TIER 2	view
GENEF85M.1A552	GENEF 4 mechanic. - TIER 2	view
NEF45TM1.1A558	NEF 4 mechanic. - TIER 2	view
NEF45TM2.A558	NEF 4 mechanic. - TIER 2	view
N67MNTX68.00	NEF 6 mechanic. - TIER 3	view
N67MNTX20.00	NEF 6 mechanic. - TIER 3	view
N67MNTX20.00A810	NEF 6 mechanic. - TIER 3	view
N67MSTD20.00A810	NEF 6 mechanic. - TIER 2	view
NEF67TM3.A558	NEF 6 mechanic. - TIER 2	view
N67MNTE61.01	NEF 6 mechanic. - TIER 2	view
NEF67TM2.1A558	NEF 6 mechanic. - TIER 2	view
GENEF130M.1A552	GENEF 6 mechanic. - TIER 2	view
GENEF130M.1A72M	GENEF 6 mechanic. - TIER 2	view
N45MNTX20.00	NEF 4 mechanic. - TIER 3	view
N45MSTX20.50	NEF 4 mechanic. - TIER 3	view
N67MNAM15.02	NEF 6 mechanic.	view
N45MSTX20.50A011	NEF 4 mechanic. - TIER 3	view
N45MSTX20.50A810	NEF 4 mechanic. - TIER 3	view
N45MNTX68.00	NEF 4 mechanic. - TIER 3	view
N45MNTA65.00	NEF 4 mechanic. - 2002/88/CE	view
N45MNSA86.00	NEF 4 mechanic. - 2002/88/CE	view
N45MSSX02.50	NEF 4 mechanic. - TIER 3	view
N67MNTA65.00	NEF 6 mechanic. - 2002/88/CE	view
N45MNSA85.00	NEF 4 mechanic. - 2002/88/CE	view
NEF45SM2A.A003	NEF 4 mechanic. - 2002/88/CE	view
N67MNTA66.00	NEF 6 mechanic. - 2002/88/CE	view
NEF67TM2A.A003	NEF 6 mechanic. - 2002/88/CE	view
NEF67TM2A.A558	NEF 6 mechanic. - 2002/88/CE	view
GENEF130MA.A552	GENEF 6 mechanic. - 2002/88/CE	view
GENEF130MA.A72M	GENEF 6 mechanic. - 2002/88/CE	view
NEF45TM1A.A003	NEF 4 mechanic. - 2002/88/CE	view
NEF45TM1A.A558	NEF 4 mechanic. - 2002/88/CE	view
NEF45TM2A.A003	NEF 4 mechanic. - 2002/88/CE	view
NEF45TM2A.A558	NEF 4 mechanic. - 2002/88/CE	view
GENEF100MA.A552	GENEF 4 mechanic. - 2002/88/CE	view
GENEF100MA.A72M	GENEF 4 mechanic. - 2002/88/CE	view
N45MNAA85.00	NEF 4 mechanic. - 2002/88/CE	view
N45MNAM10.02	NEF 4 mechanic.	view
N45MNAM10.30	NEF 4 mechanic.	view
N67MNTM28.12	NEF 6 mechanic.	view
N45MNSX02.00	NEF 4 mechanic. - TIER 3	view
N45MSTX21.50	NEF 4 mechanic. - TIER 3	view
N45MNSX88.00	NEF 4 mechanic. - TIER 3	view
N45MNTX21.00	NEF 4 mechanic. - TIER 3	view
GENEF85MA.A552	GENEF 4 mechanic. - 2002/88/CE	view
GENEF85MA.A72M	GENEF 4 mechanic. - 2002/88/CE	view
N45MSTA20.50A810	NEF 4 mechanic. - TIER 3	view
N45MNSX89.00	NEF 4 mechanic. - TIER 3	view
N45MSSX00.50	NEF 4 mechanic. - TIER 3	view
GENEF160M.A552	GENEF 6 mechanic. - TIER 2	view
GENEF160M.A72M	GENEF 6 mechanic. - TIER 2	view
N67MNTA20.00A810	NEF 6 mechanic. - TIER 3	view
NEF67TM3A.A550	NEF 6 mechanic. - 2002/88/CE	view
GMNEF80M.L50E	GMNEF 6 mechanic.	view
NEF45SM1A.A003	NEF 4 mechanic. - 2002/88/CE	view
NEF67TM3A.A003	NEF 6 mechanic. - 2002/88/CE	view
NEF67TM3A.A558	NEF 6 mechanic. - 2002/88/CE	view
GENEF160MA.A552	GENEF 6 mechanic. - 2002/88/CE	view
GENEF160MA.A72M	GENEF 6 mechanic. - 2002/88/CE	view
GMNEF60M.L50E	GMNEF 6 mechanic.	view
GENEF125M.A012	GENEF 6 mechanic. - TIER 2	view
GMNEF115M.A501	GMNEF 6 mechanic.	view
GMNEF115M.A510	GMNEF 6 mechanic.	view
GMNEF115M.A511	GMNEF 6 mechanic.	view
GMNEF60M.A501	GMNEF 6 mechanic.	view
GMNEF60M.A510	GMNEF 6 mechanic.	view
GMNEF60M.A511	GMNEF 6 mechanic.	view
GMNEF80M.A501	GMNEF 6 mechanic.	view
GMNEF80M.A510	GMNEF 6 mechanic.	view
GMNEF80M.A511	GMNEF 6 mechanic.	view
NEF45SM1A.A010	NEF 4 mechanic. - 2002/88/CE	view
N67MNTX20.00A010	NEF 6 mechanic. - TIER 3	view
