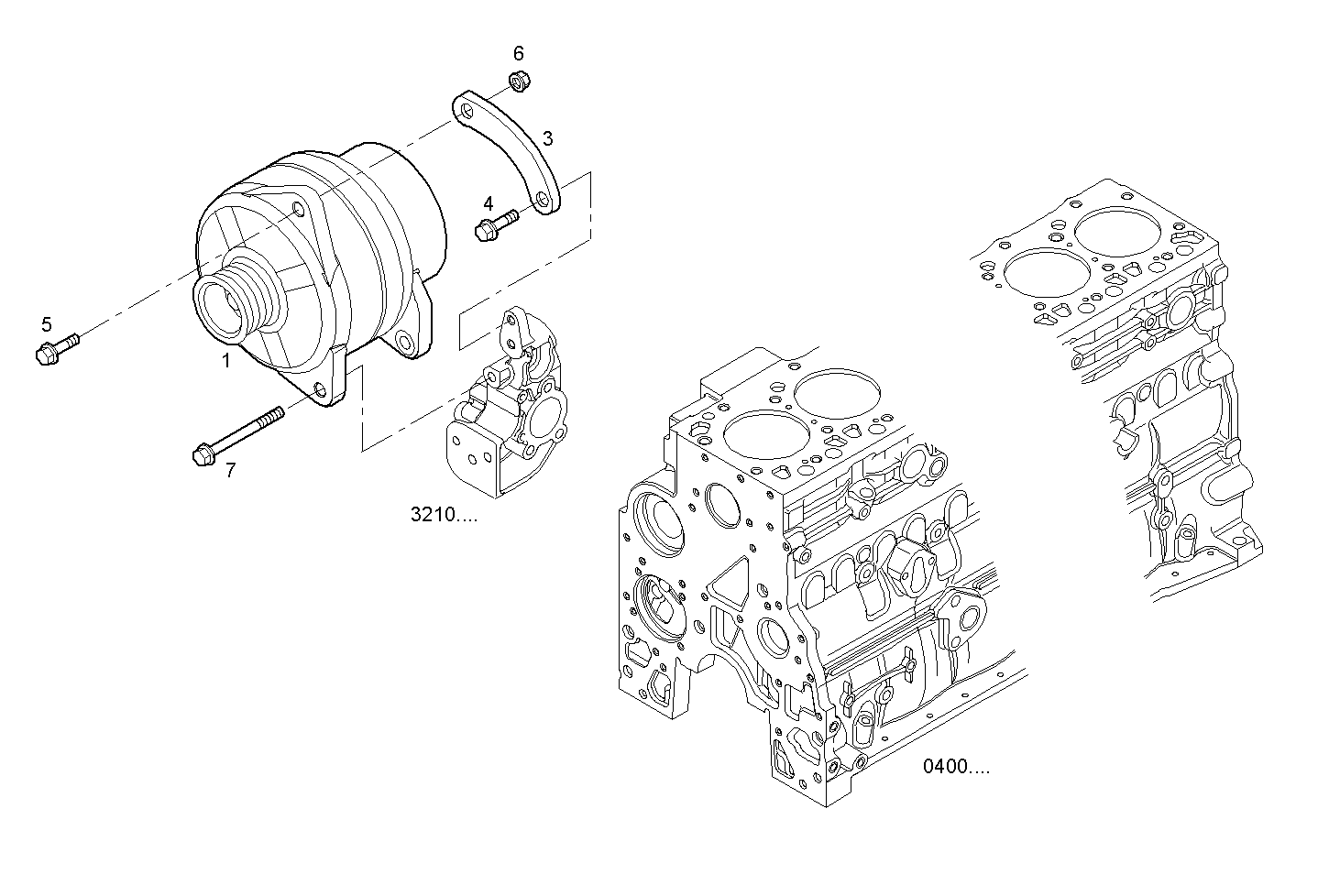

ALTERNATOR

Assembly ID: A14170506

ALTERNATOR

Parts

# Part number Description Note Quantity
1 4892318 ALTERNATOR 1
3 4893840 RETAINER 1
4 4895291 HEXAGON BOLT 1
5 4899093 HEXAGON BOLT 1
6 4895166 HEXAGON NUT 1
7 4899122 HEXAGON BOLT 1

Applies to engines

Engine Family
N60ENTE66.00 NEF 6 electron. - TIER 2 view
N60ENTE60.00 NEF 6 electron. - TIER 2 view
GENEF200E.R990 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
NEF60TE2.A558 NEF 6 electron. - TIER 2 view
NEF60TE2.A005 NEF 6 electron. - TIER 2 view
N67ENTX67.00 NEF 6 electron. - TIER 3 view
N67ENTX68.00 NEF 6 electron. - TIER 3 view
N67ENTA65.00 NEF 6 electron. - 2002/88/CE view
GENEF200EA.A552 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A72M GENEF 6 electron. - 2002/88/CE view
GENEF200EA.R990 GENEF 6 electron. - 2002/88/CE view
NEF67TE2A.A005 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A006 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A558 NEF 6 electron. - 2002/88/CE view
