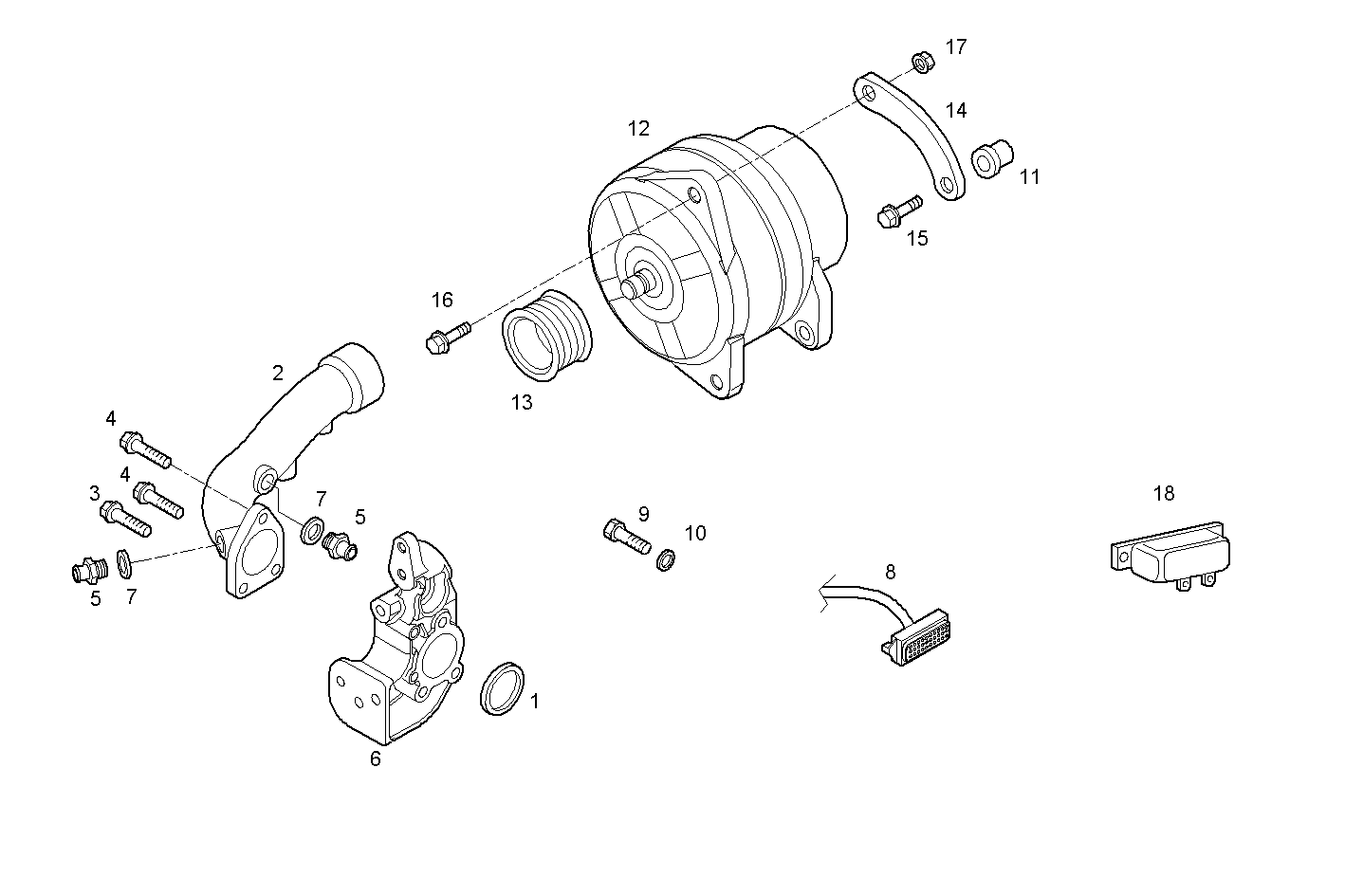

SELF-REGULATED ALTERNATOR
Assembly ID: A14240504
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504062710 | WASHER | 2 | ||
| 2 | 8042837 | WATER PIPE | 1 | ||
| 3 | 16592925 | HEXAGON BOLT | 2 | ||
| 4 | 16599224 | HEXAGON BOLT | 2 | ||
| 5 | 8024797 | PIPE SOCKET | 2 | ||
| 6 | 8036563 | GENERATOR SUPPORT | 1 | ||
| 7 | 99434480 | SEAL GASKET | 2 | ||
| 8 | 8037860 | ENGINE HARNESS | 1 | ||
| 9 | 16605524 | HEXAGON BOLT | 1 | ||
| 10 | 17089574 | WASHER | 1 | ||
| 11 | 8036564 | SPACING BAR | 1 | ||
| 12 | 8036232 | ALTERNATOR | 1 | ||
| 13 | 8036600 | GENERATOR PULLEY | 1 | ||
| 14 | 8036565 | FASTENING BRACKET | 1 | ||
| 15 | 16593125 | HEXAGON BOLT | 1 | ||
| 16 | 16587125 | HEXAGON BOLT | 1 | ||
| 17 | 17044825 | HEXAGON NUT | 2 | ||
| 18 | 8108575 | RELAY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNSM22.11 | NEF 6 mechanic. | view |
| N67MNTM28.11 | NEF 6 mechanic. | view |
| N67MNTM28.31 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
| GMNEF115M.L50E | GMNEF 6 mechanic. | view |
