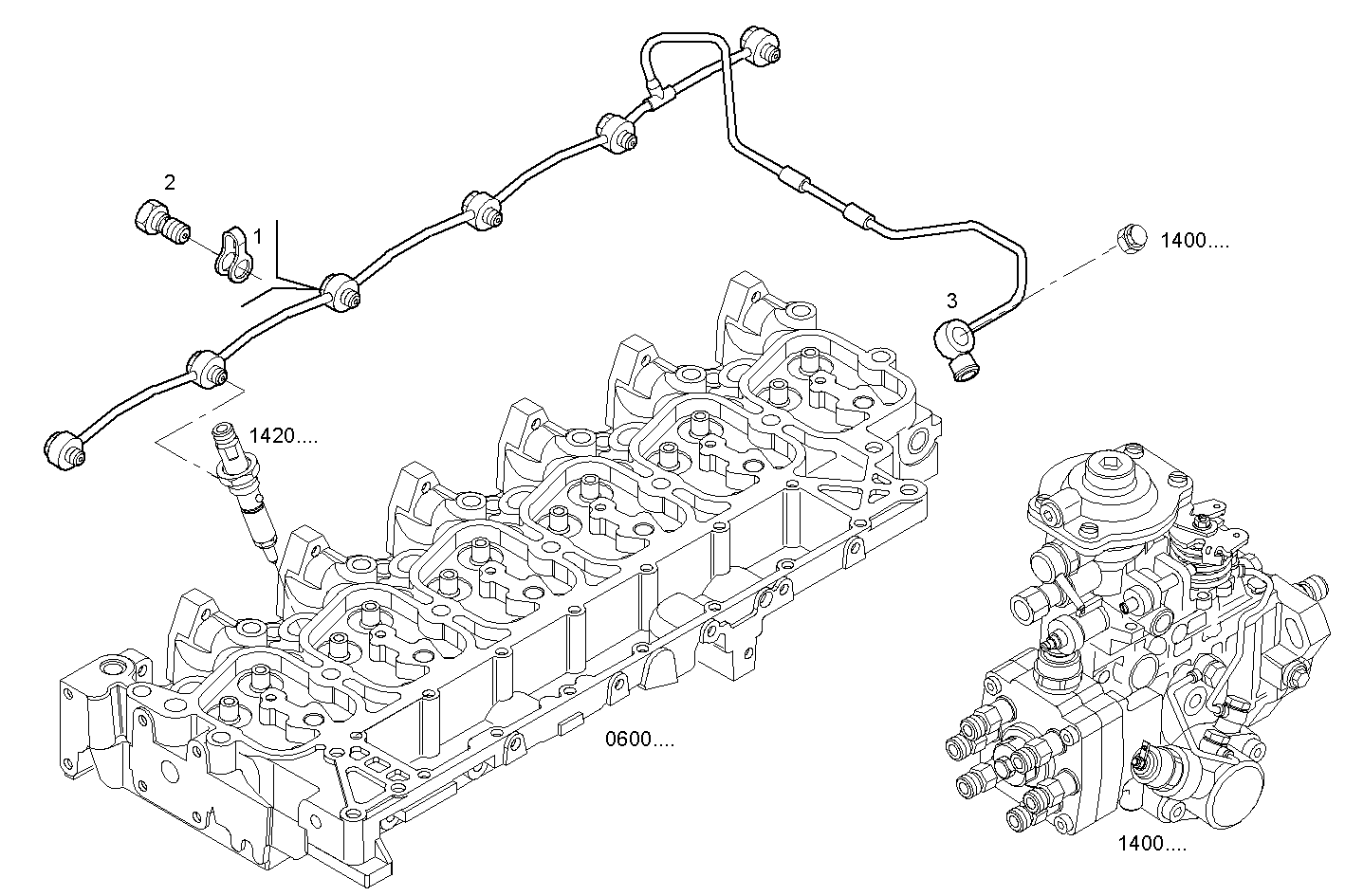

DOUBLE WALL INJECTION PIPES
Assembly ID: A16010503-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4895305 | SEAL GASKET | 6 | ||
| 2 | 4895244 | SCREW CONNECTOR | 6 | ||
| 3 | 8041334 | FUEL LINE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM12.30 | NEF 6 mechanic. | view |
| N67MNAM15.30 | NEF 6 mechanic. | view |
| N67MNAM15.01 | NEF 6 mechanic. | view |
| N67MNAM15.31 | NEF 6 mechanic. | view |
| N67MNAM15.02 | NEF 6 mechanic. | view |
