DOUBLE OIL FILTER
Assembly ID: A17070503-01
Parts

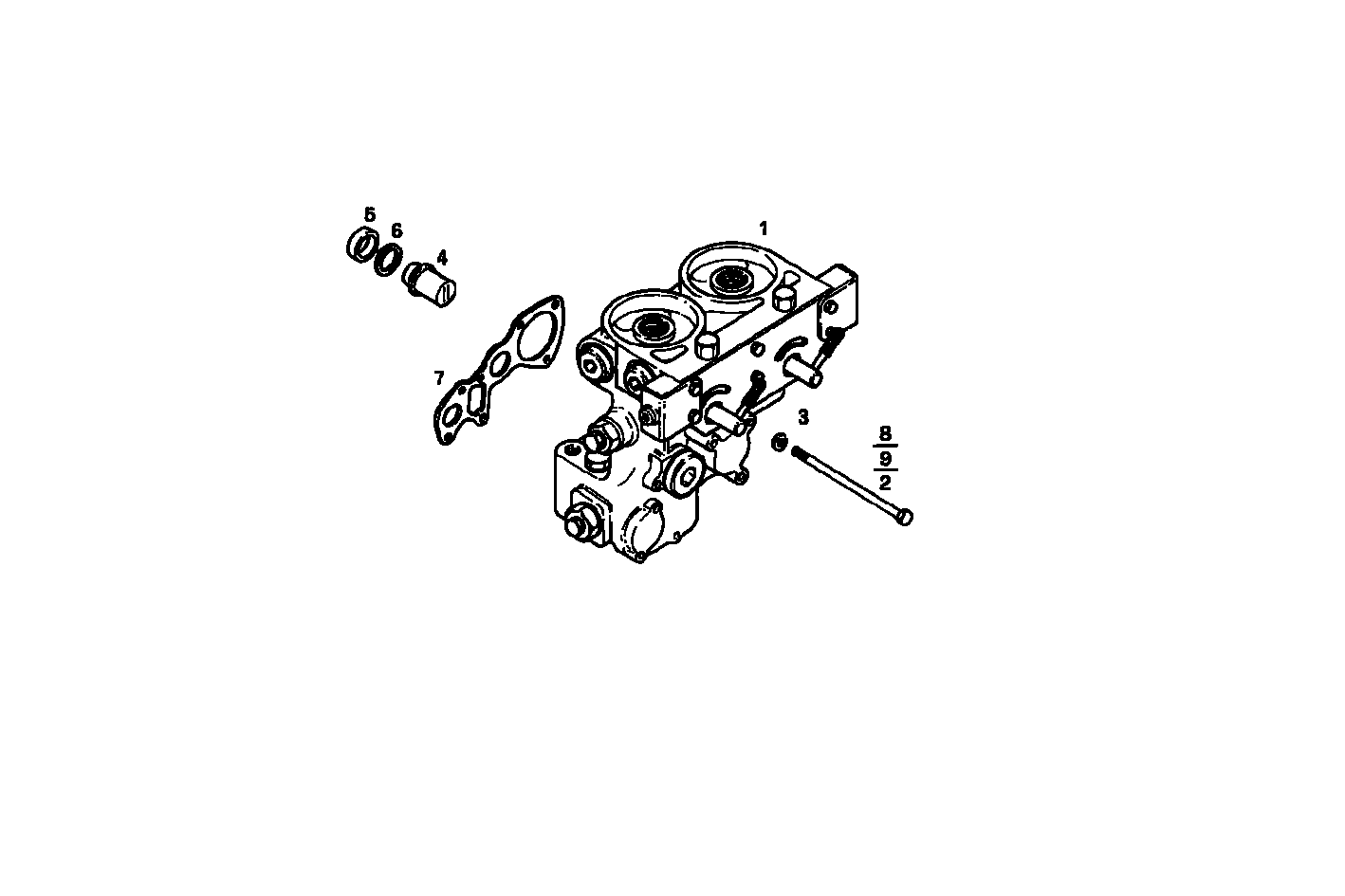

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8043665 | OIL FILTER SUPPORT | 1 | ||
| 2 | 16607324 | HEXAGON BOLT | 2 | ||
| 3 | 17089474 | SPRING WASHER | 7 | ||
| 4 | 98498322 | VALVE | 1 | ||
| 5 | 99433798 | SPACING BAR | 1 | ||
| 6 | 98494952 | GASKET | 1 | ||
| 7 | 504013562 | GASKET | 1 | ||
| 8 | 16046221 | HEXAGON BOLT | 3 | ||
| 9 | 8030913 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
