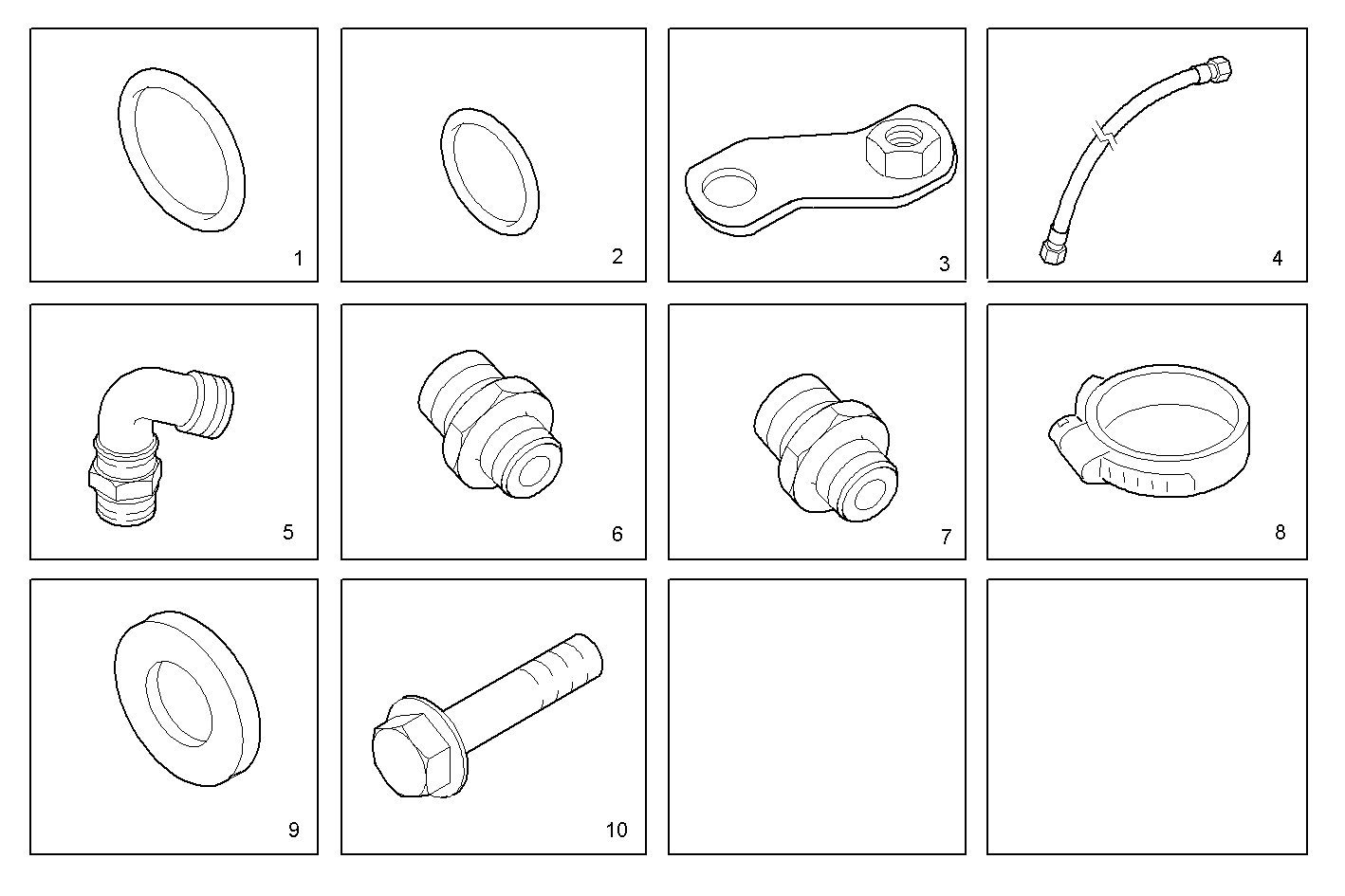

DOUBLE OIL FILTER
Assembly ID: A17070503-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99489020 | SEAL GASKET | 1 | ||
| 2 | 99489018 | SEAL GASKET | 1 | ||
| 3 | 8107203 | RETAINER | 1 | ||
| 4 | 8043676 | OIL LINE | 1 | ||
| 5 | 8025927 | ELBOW COUPLING | 1 | ||
| 6 | 500300594 | THREADED UNION | 1 | ||
| 7 | 41905554 | PIPE SOCKET | 1 | ||
| 8 | 17316490 | CLIP | 1 | ||
| 9 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 16605424 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
