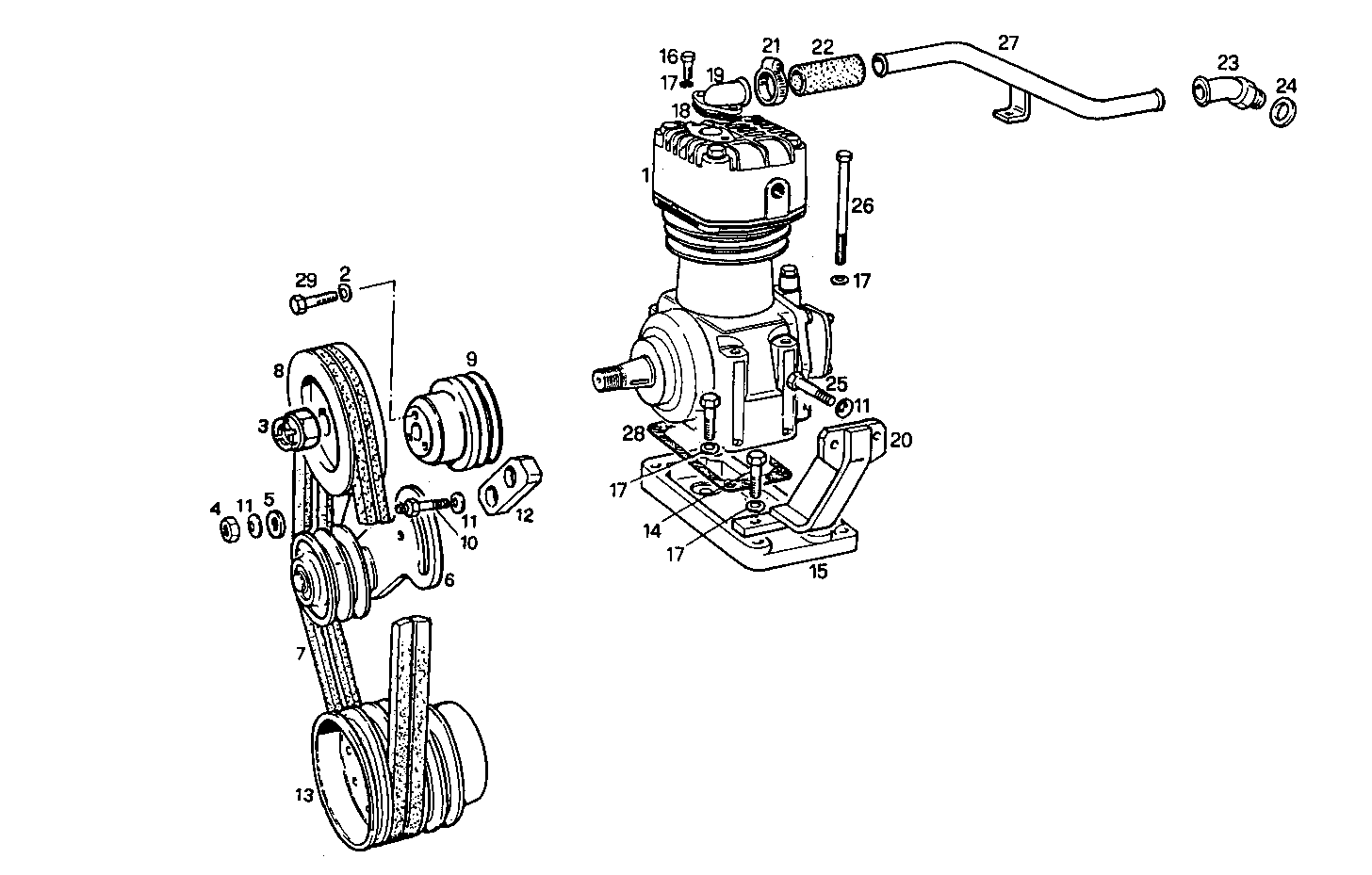

| 1 |
98421104
|
AIR COMPRESSOR
|
|
1
|
|
| 2 |
11198071
|
SPRING WASHER
|
|
3
|
|
| 3 |
13598411
|
CASTLE NUT
|
|
1
|
|
| 4 |
12164711
|
HEXAGON NUT
|
|
2
|
|
| 5 |
14496601
|
WASHER
|
|
1
|
|
| 6 |
8104959
|
BELT TENSIONER
|
|
1
|
|
| 7 |
8109753
|
V-BELT
|
|
1
|
|
| 8 |
8007719
|
PULLEY
|
|
1
|
|
| 9 |
8009572
|
PULLEY
|
|
1
|
|
| 10 |
8104930
|
STUD
|
|
2
|
|
| 11 |
11198371
|
SPRING WASHER
|
|
6
|
|
|
17090274 |
SPRING WASHER |
|
6 |
|
| 12 |
8104931
|
SPACING BAR
|
|
1
|
|
| 13 |
8104952
|
PULLEY
|
|
1
|
|
| 14 |
16043521
|
SCREW
|
|
2
|
|
| 15 |
8104950
|
PLATE
|
|
1
|
|
| 16 |
16043421
|
HEXAGON BOLT
|
|
2
|
|
| 17 |
11194071
|
WASHER
|
|
11
|
|
| 18 |
619376
|
FLAT ENGINE GASKET
|
|
1
|
|
|
98418772 |
FLAT ENGINE GASKET |
|
1 |
|
| 19 |
8104980
|
OIL LINE
|
|
1
|
|
| 20 |
8104936
|
RETAINER
|
|
1
|
|
| 21 |
17764592
|
CLIP
|
|
2
|
|
| 22 |
4930352
|
WATER HOSE
|
|
1
|
|
| 23 |
4555394
|
ELBOW COUPLING
|
|
1
|
|
| 24 |
10260360
|
SEAL GASKET
|
|
1
|
|
| 25 |
15970621
|
SCREW
|
|
2
|
|
|
15003921 |
SCREW |
|
2 |
|
| 26 |
16045021
|
HEXAGON BOLT
|
|
4
|
|
| 27 |
4633506
|
THREADED UNION
|
|
1
|
|
| 28 |
4601884
|
FLAT ENGINE GASKET
|
|
2
|
|
|
98400783 |
FLAT ENGINE GASKET |
|
2 |
|
| 29 |
16043521
|
SCREW
|
|
3
|
|
