| 1 |
99440225
|

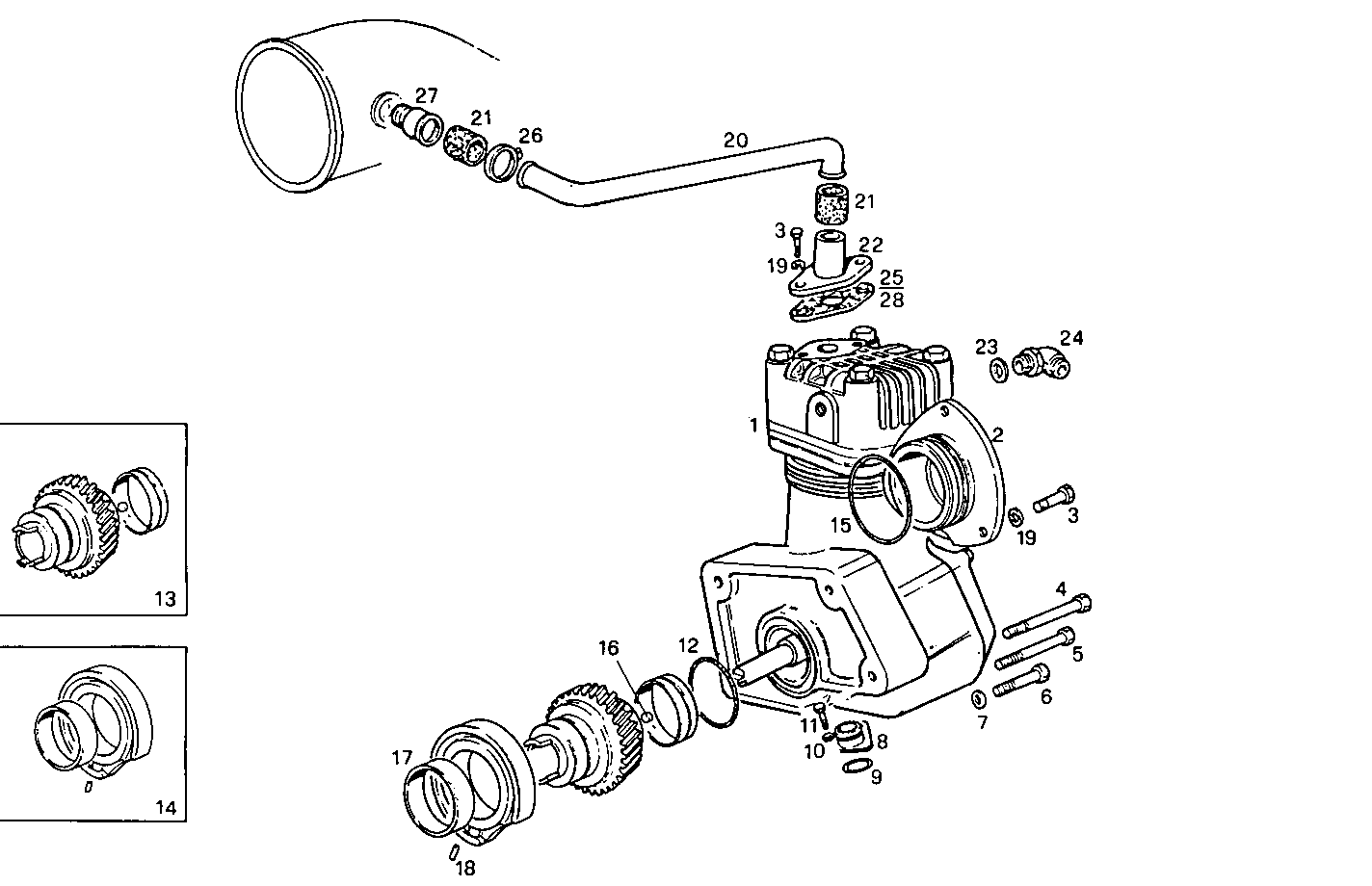

AIR COMPRESSOR
|
|
1
|
|
| 2 |
4726906
|
COVER
|
|
1
|
|
| 3 |
16043421
|
HEXAGON BOLT
|
|
3
|
|
| 4 |
15071821
|
SCREW
|
|
1
|
|
| 5 |
15971621
|
HEXAGON BOLT
|
|
1
|
|
|
15971634 |
HEXAGON BOLT |
|
1 |
|
| 6 |
10923621
|
HEXAGON BOLT
|
|
2
|
|
| 7 |
11198371
|
SPRING WASHER
|
|
6
|
|
|
17090274 |
SPRING WASHER |
|
6 |
|
| 8 |
4711788
|
PIPE
|
|
1
|
|
| 9 |
14457581
|
O-RING
|
|
2
|
|
|
17282081 |
O-RING |
|
2 |
|
| 10 |
11198371
|
SPRING WASHER
|
|
4
|
|
|
17090274 |
SPRING WASHER |
|
4 |
|
| 11 |
10902121
|
HEXAGON BOLT
|
|
3
|
|
|
10902124 |
HEXAGON BOLT |
|
3 |
|
| 12 |
14464081
|
O-RING
|
|
1
|
|
| 13 |
4708217
|
GEAR
|
|
1
|
|
| 14 |
4708219
|
SUPPORT
|
|
1
|
|
| 15 |
14460181
|
O-RING
|
|
1
|
|
| 16 |
14327101
|
LOCK PLUG
|
|
1
|
|
| 17 |
10837610
|
DOWEL PIN
|
|
1
|
|
|
17274710 |
DOWEL PIN |
|
1 |
|
| 18 |
4692781
|
CENTERING BUSH
|
|
1
|
|
| 19 |
11198371
|
SPRING WASHER
|
|
2
|
|
|
17090274 |
SPRING WASHER |
|
2 |
|
| 20 |
8107906
|
AIR PIPE/DUCT
|
|
1
|
|
| 21 |
12080686
|
RUBBER SLEEVE
|
|
2
|
|
| 22 |
8101132
|
PIPE SOCKET
|
|
1
|
|
| 23 |
10264560
|
SEAL GASKET
|
|
1
|
|
| 24 |
8830348
|
ELBOW COUPLING
|
|
1
|
|
| 25 |
4513714
|
GASKET
|
|
1
|
|
|
4863948 |
GASKET |
|
1 |
|
| 26 |
12173890
|
CLIP
|
|
4
|
|
| 27 |
4734507
|
THREADED UNION
|
|
1
|
|
| 28 |
3881554
|
GASKET
|
|
1
|
|
