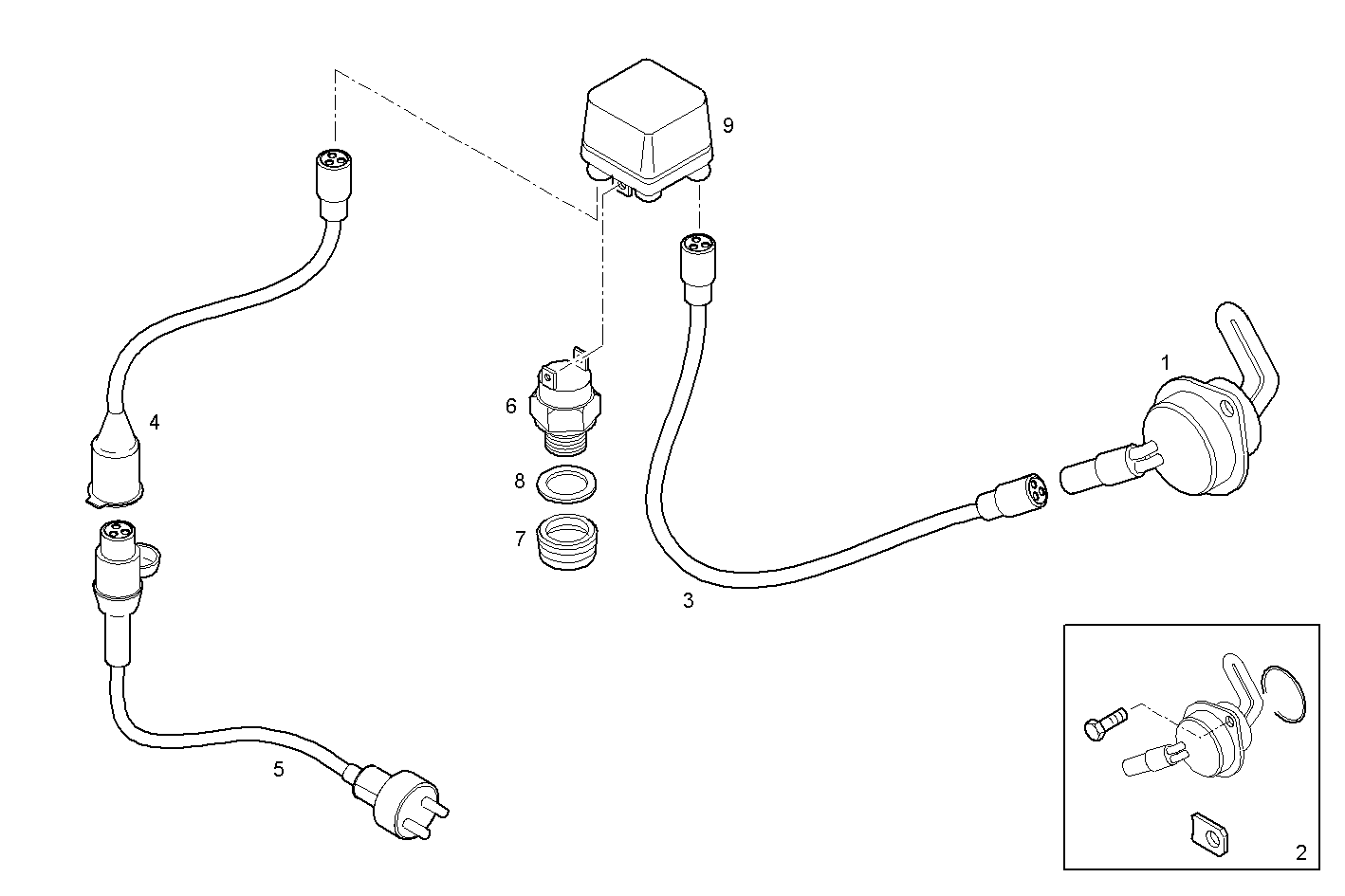

WATER PREHEATER DEVICE - 230V

Assembly ID: A20040511

WATER PREHEATER DEVICE - 230V

Parts

# Part number Description Note Quantity
1 8038705 HEATER 1
2 8094793 KIT 1
3 8038507 WIRE/CABLE 1
4 503111089 WIRE/CABLE 1
5 504084179 WIRE/CABLE 1
6 8038597 THERMOSWITCH 1
7 8033022 PIPE SOCKET 1
8 4858608 SEAL GASKET 1
9 8038599 RELAY 1

Applies to engines

Engine Family
N67MNTE20.00 NEF 6 mechanic. - TIER 2 view
N67MNTU20.00 NEF 6 mechanic. - TIER 2 view
N67MNTD20.00 NEF 6 mechanic. - TIER 2 view
N45MSTD20.50 NEF 4 mechanic. - TIER 2 view
N45MSTD22.50 NEF 4 mechanic. - TIER 2 view
N67MNTE60.00 NEF 6 mechanic. - TIER 2 view
GENEF160M.R980 GENEF 6 mechanic. - TIER 2 view
N67MNTE61.00 NEF 6 mechanic. - TIER 2 view
N67MNSI80.00 NEF 6 mechanic. - TIER 2 view
GENEF125M.R980 GENEF 6 mechanic. - TIER 2 view
GENEF130M.R980 GENEF 6 mechanic. - TIER 2 view
N45MNSE80.00 NEF 4 mechanic. - TIER 2 view
N45MNSE85.00 NEF 4 mechanic. - TIER 2 view
N45MNSE88.00 NEF 4 mechanic. - TIER 2 view
N45MNTE60.00 NEF 4 mechanic. - TIER 2 view
N45MNTE61.00 NEF 4 mechanic. - TIER 2 view
GENEF100M.R980 GENEF 4 mechanic. - TIER 2 view
GENEF75M-5.R980 GENEF 4 mechanic. - TIER 2 view
GENEF75M-6.R980 GENEF 4 mechanic. - TIER 2 view
GENEF85M.R980 GENEF 4 mechanic. - TIER 2 view
N45MNAE80.00 NEF 4 mechanic. - TIER 2 view
GENEF60M.R980 GENEF 4 mechanic. - TIER 2 view
N45MNSF40.00 NEF 4 mechanic. view
N45MNTF41.00 NEF 4 mechanic. view
GENEF45M-5.R980 GENEF 4 mechanic. - TIER 2 view
N45MNSE80.01 NEF 4 mechanic. - TIER 2 view
GENEF60M.1R980 GENEF 4 mechanic. - TIER 2 view
N45MNTE61.01 NEF 4 mechanic. - TIER 2 view
GENEF85M.1R980 GENEF 4 mechanic. - TIER 2 view
N45MNSE88.01 NEF 4 mechanic. - TIER 2 view
N45MNAE88.00 NEF 4 mechanic. - TIER 2 view
NEF67SM1.A559 NEF 6 mechanic. - TIER 2 view
NEF67TM3.A559 NEF 6 mechanic. - TIER 2 view
GENEF160M.A71M GENEF 6 mechanic. - TIER 2 view
GENEF160M.A001 GENEF 6 mechanic. - TIER 2 view
GENEF125M.A71M GENEF 6 mechanic. - TIER 2 view
GENEF125M.A551 GENEF 6 mechanic. - TIER 2 view
GENEF100M.A551 GENEF 4 mechanic. - TIER 2 view
GENEF100M.A71M GENEF 4 mechanic. - TIER 2 view
GENEF45M-5.A551 GENEF 4 mechanic. - TIER 2 view
GENEF45M-5.A71M GENEF 4 mechanic. - TIER 2 view
GENEF60M.1A551 GENEF 4 mechanic. - TIER 2 view
GENEF60M.1A71M GENEF 4 mechanic. - TIER 2 view
GENEF75M-5.A001 GENEF 4 mechanic. - TIER 2 view
GENEF75M-5.A551 GENEF 4 mechanic. - TIER 2 view
GENEF75M-5.A71M GENEF 4 mechanic. - TIER 2 view
GENEF85M.1A551 GENEF 4 mechanic. - TIER 2 view
GENEF85M.1A71M GENEF 4 mechanic. - TIER 2 view
NEF45AM1-5.A559 NEF 4 mechanic. - TIER 2 view
NEF45SM1.1A559 NEF 4 mechanic. - TIER 2 view
NEF45SM2-5.A559 NEF 4 mechanic. - TIER 2 view
NEF45TM1.1A559 NEF 4 mechanic. - TIER 2 view
NEF45TM2.A559 NEF 4 mechanic. - TIER 2 view
N67MNTX68.00 NEF 6 mechanic. - TIER 3 view
N67MNTX20.00 NEF 6 mechanic. - TIER 3 view
N67MNTE61.01 NEF 6 mechanic. - TIER 2 view
GENEF130M.1A71M GENEF 6 mechanic. - TIER 2 view
GENEF130M.1R980 GENEF 6 mechanic. - TIER 2 view
N45MSTX20.50 NEF 4 mechanic. - TIER 3 view
N45MNTX68.00 NEF 4 mechanic. - TIER 3 view
NEF45TM2X.R981 NEF 4 mechanic. - TIER 3 view
NEF67TM1X.R981 NEF 6 mechanic. - TIER 3 view
N45MNTA65.00 NEF 4 mechanic. - 2002/88/CE view
GENEF100MA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.R980 GENEF 4 mechanic. - 2002/88/CE view
N45MNSA86.00 NEF 4 mechanic. - 2002/88/CE view
GENEF60MA.R980 GENEF 4 mechanic. - 2002/88/CE view
N67MNTA65.00 NEF 6 mechanic. - 2002/88/CE view
GENEF160MA.R980 GENEF 6 mechanic. - 2002/88/CE view
N45MNSA85.00 NEF 4 mechanic. - 2002/88/CE view
NEF45SM2A.A559 NEF 4 mechanic. - 2002/88/CE view
N67MNTA66.00 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A509 NEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A501 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.R980 GENEF 6 mechanic. - 2002/88/CE view
NEF45TM1A.A509 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A509 NEF 4 mechanic. - 2002/88/CE view
GENEF160MA.A71S GENEF 6 mechanic. - 2002/88/CE view
GENEF100MA.A501 GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A71M GENEF 4 mechanic. - 2002/88/CE view
N45MNAA85.00 NEF 4 mechanic. - 2002/88/CE view
NEF45AM1A.A559 NEF 4 mechanic. - 2002/88/CE view
GENEF45MA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A002 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A71M GENEF 4 mechanic. - 2002/88/CE view
N45MSTX21.50 NEF 4 mechanic. - TIER 3 view
N45MNSX88.00 NEF 4 mechanic. - TIER 3 view
GENEF75MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.A71M GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A501 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A71M GENEF 4 mechanic. - 2002/88/CE view
N45MNSX89.00 NEF 4 mechanic. - TIER 3 view
NEF45SM1A.A559 NEF 4 mechanic. - 2002/88/CE view
NEF67TM3A.A509 NEF 6 mechanic. - 2002/88/CE view
GENEF60MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF60MA.A71M GENEF 4 mechanic. - 2002/88/CE view
GENEF160MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A501 GENEF 6 mechanic. - 2002/88/CE view
GENEF60RA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF100RA.R980 GENEF 4 mechanic. - 2002/88/CE view
NEF67TM1X.A550 NEF 6 mechanic. - TIER 3 view
