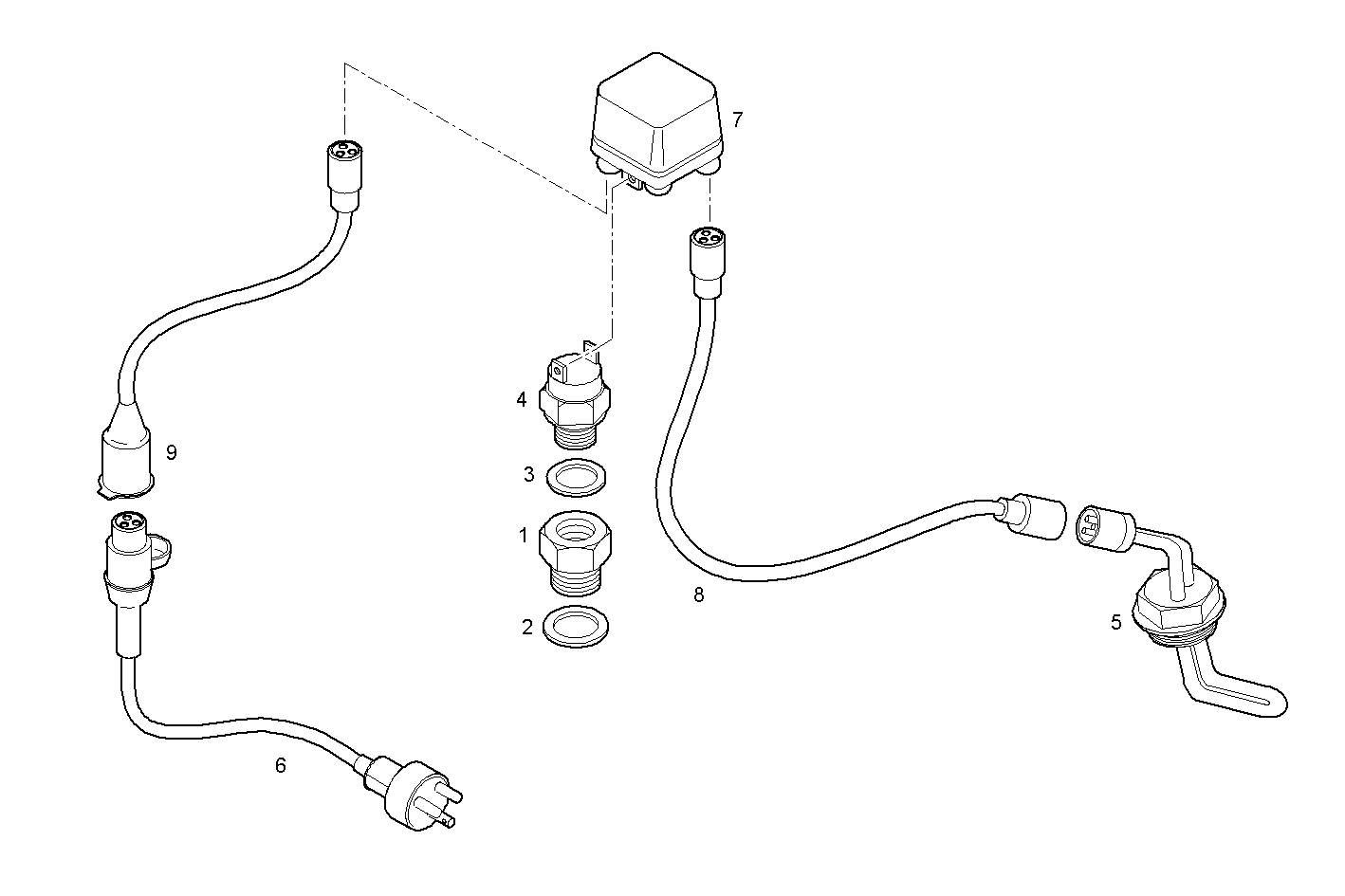

HEATHER 120V
Assembly ID: A20120511
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4928330 | PIPE SOCKET | 1 | ||
| 2 | 98474309 | WASHER | 1 | ||
| 3 | 98474308 | SEAL GASKET | 1 | ||
| 4 | 8038597 | THERMOSWITCH | 1 | ||
| 5 | 8046348 | HEATER | 1 | ||
| 6 | 8038515 | WIRE/CABLE | 1 | ||
| 7 | 8038600 | RELAY | 1 | ||
| 8 | 8038507 | WIRE/CABLE | 1 | ||
| 9 | 503111089 | WIRE/CABLE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00 | CURSOR 9 - TIER 3 | view |
| C87ENTX60.00 | CURSOR 9 - 2002/88/CE - TIER 3 | view |
