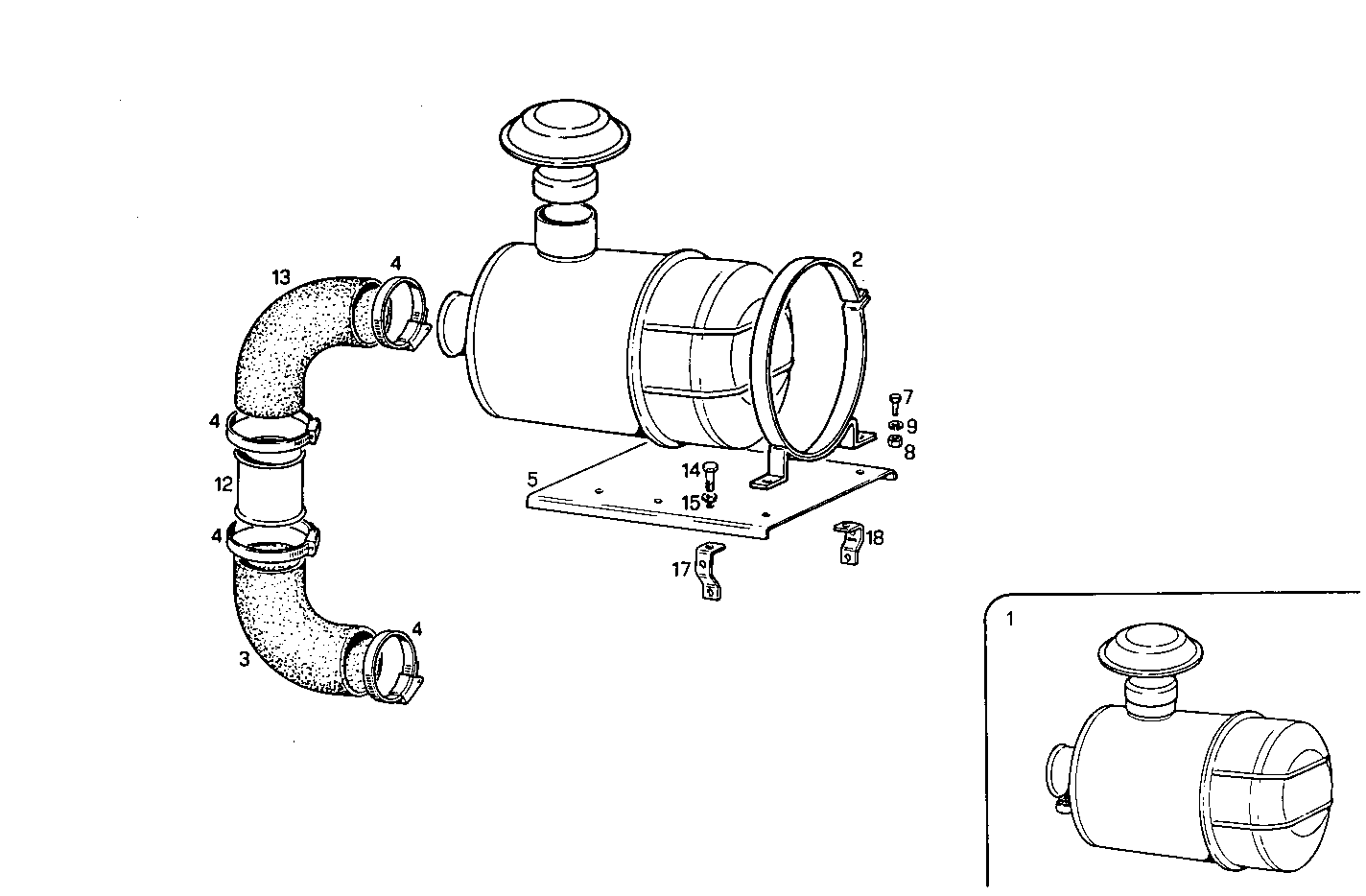

| 1 |
8107464
|
AIR CLEANER
|
|
1
|
|
| 2 |
8104625
|
SUPPORT
|
|
2
|
|
| 3 |
8109310
|
FILTER HOSE
|
|
1
|
|
| 4 |
17765893
|
CLIP
|
|
4
|
|
| 5 |
8005146
|
SUPPORT
|
|
1
|
|
| 7 |
15004021
|
HEXAGON BOLT
|
|
4
|
|
| 8 |
12164711
|
HEXAGON NUT
|
|
4
|
|
| 9 |
11198479
|
SPRING WASHER
|
|
4
|
|
|
17090574 |
SPRING WASHER |
|
4 |
|
| 12 |
8109309
|
AIR PIPE/DUCT
|
|
1
|
|
| 13 |
8109311
|
FILTER HOSE
|
|
1
|
|
| 14 |
15540321
|
HEXAGON BOLT
|
|
4
|
|
|
15540324 |
HEXAGON BOLT |
|
4 |
|
| 15 |
11190879
|
SPRING WASHER
|
|
4
|
|
|
17091371 |
SPRING WASHER |
|
4 |
|
| 17 |
8107870
|
RETAINER
|
|
2
|
|
| 18 |
8107871
|
RETAINER
|
|
2
|
|
