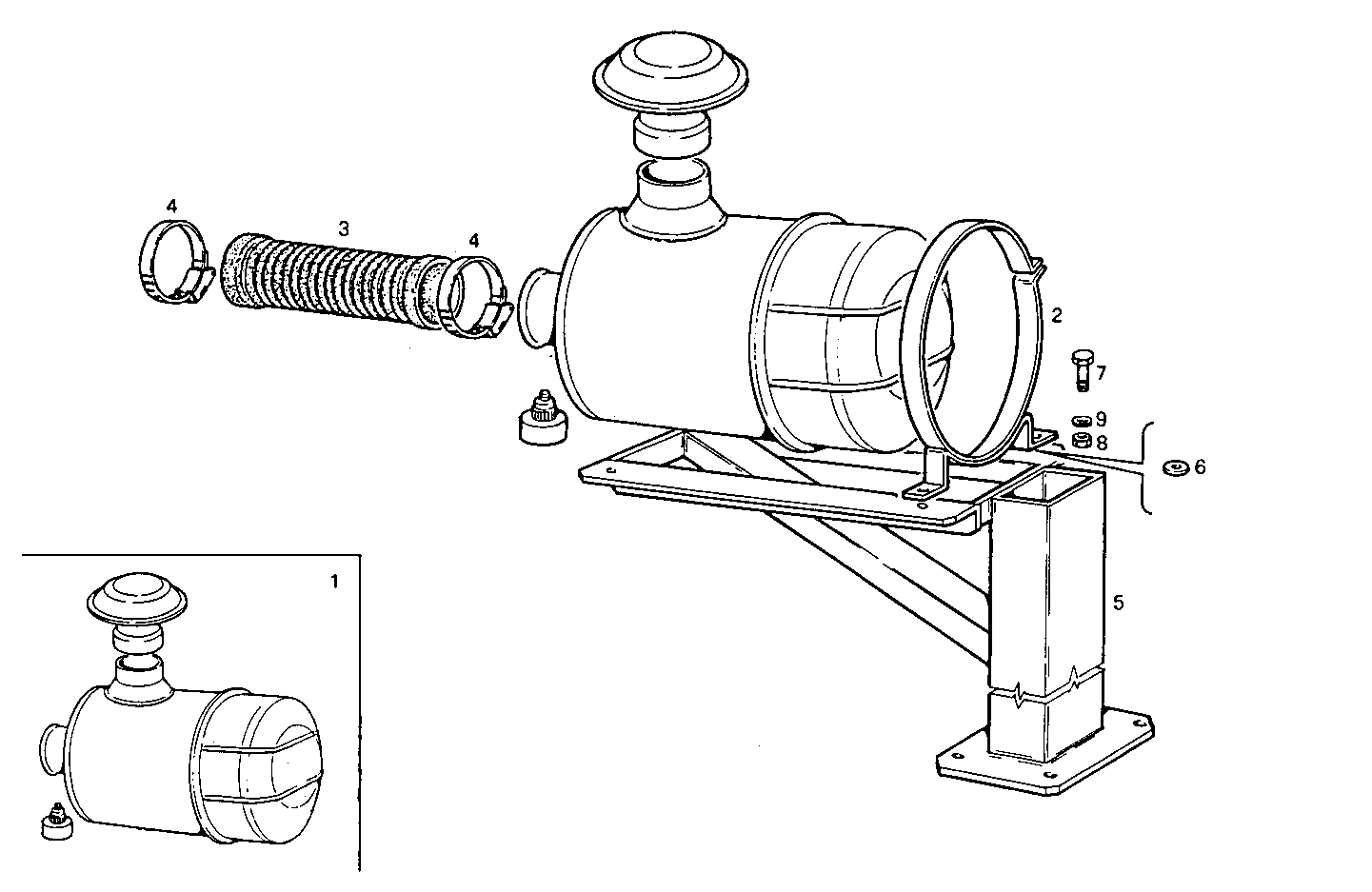

DRY AIR CLEANER
Assembly ID: A21170033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8106913 | AIR CLEANER | 1 | ||
| 2 | 8106400 | CLIP | 2 | ||
| 3 | 4616297 | RUBBER SLEEVE | 1 | ||
| 4 | 12174590 | CLIP | 2 | ||
| 5 | 8108446 | SUPPORT | 1 | ||
| 6 | 741570 | WASHER | 4 | ||
| 7 | 15004021 | HEXAGON BOLT | 4 | ||
| 8 | 12164711 | HEXAGON NUT | 4 | ||
| 9 | 11190571 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8361SRi25.00A50L | GE8361SRi25 | view |
| GE8361SRi25.00A50S | GE8361SRi25 | view |
| GE8361SRi25.00A52S | GE8361SRi25 | view |
| GE8361SRi25.00A70E | GE8361SRi25 | view |
| GE8361SRi25.00A70L | GE8361SRi25 | view |
| GE8361SRi25.00A70S | GE8361SRi25 | view |
| GE8361SRi26.00A50L | GE8361SRi26 | view |
| GE8361SRi26.00A50S | GE8361SRi26 | view |
| GE8361SRi26.00A51S | GE8361SRi26 | view |
| GE8361SRi26.00A52L | GE8361SRi26 | view |
| GE8361SRi26.00A52S | GE8361SRi26 | view |
| GE8361SRi26.00A70E | GE8361SRi26 | view |
| GE8361SRi26.00A70L | GE8361SRi26 | view |
| GE8361SRi26.00A70S | GE8361SRi26 | view |
| 8361SRi25.00A550 | 8361SRi25 | view |
| 8361SRi25.00A580 | 8361SRi25 | view |
| 8361SRi26.00A550 | 8361SRi26 | view |
| 8361SRi26.00A580 | 8361SRi26 | view |
