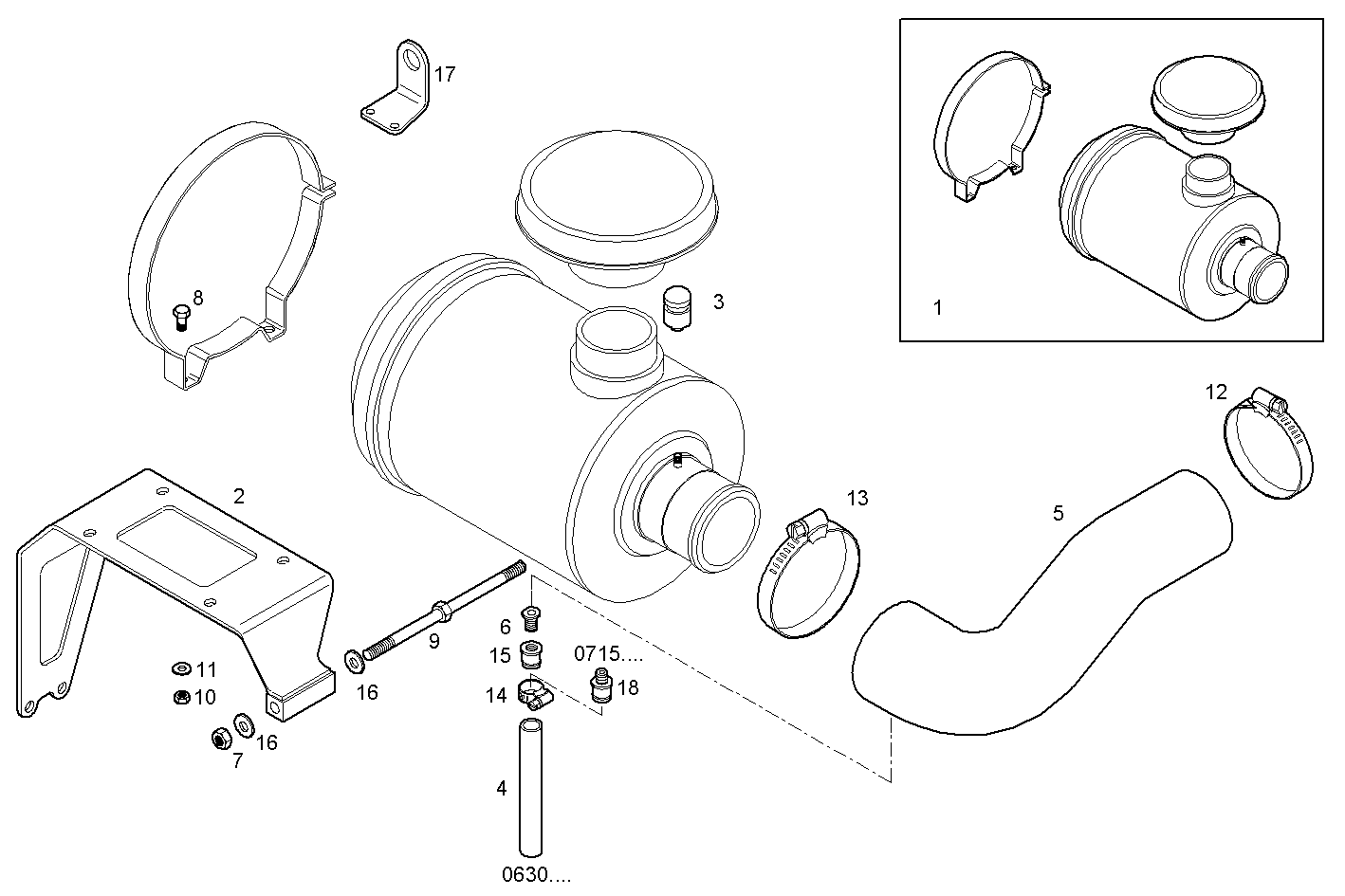

AIR CLEANER
Assembly ID: A21210508
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8031382 | AIR CLEANER | 1 | ||
| 2 | 8035097 | FILTER SUPPORT | 1 | ||
| 3 | 8027294 | CHOCKED FILTER INDIC. | 1 | ||
| 4 | 504147024 | RUBBER SLEEVE | 1 | ||
| 5 | 8035102 | FILTER HOSE | 1 | ||
| 6 | 8015315 | PIPE SOCKET | 1 | ||
| 7 | 17038425 | HEXAGON NUT | 1 | ||
| 8 | 16605524 | HEXAGON BOLT | 4 | ||
| 9 | 8033548 | STUD | 1 | ||
| 10 | 17037925 | HEXAGON NUT | 4 | ||
| 11 | 17089774 | SPRING WASHER | 4 | ||
| 12 | 4788410 | CLIP | 1 | ||
| 13 | 17765291 | CLIP | 1 | ||
| 14 | 18088392 | CLIP | 2 | ||
| 15 | 8036882 | PIPE SOCKET | 1 | ||
| 16 | 17091074 | WASHER | 2 | ||
| 17 | 8037489 | HOOK | 1 | ||
| 18 | 8044014 | PIPE SOCKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
