AIR CLEANER

Assembly ID: A21210511

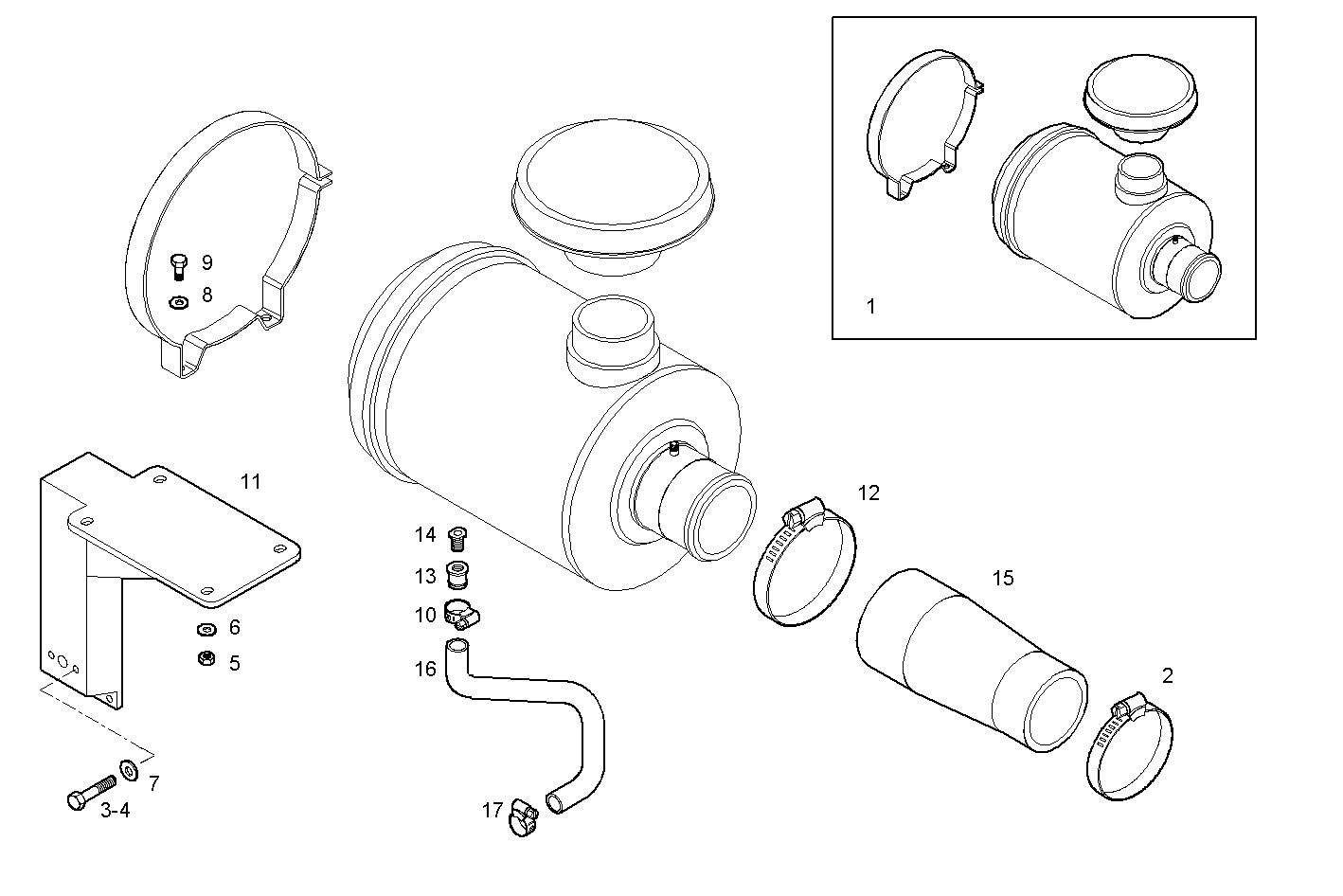

AIR CLEANER

Parts

# Part number Description Note Quantity
1 8037331 AIR CLEANER 1
2 17765491 CLIP 1
3 16614524 HEXAGON BOLT 2
4 16615624 HEXAGON BOLT 2
5 17038425 HEXAGON NUT 4
6 17091074 WASHER 4
7 17092174 SPRING WASHER 4
8 17095304 WASHER 4
9 16609924 HEXAGON BOLT 4
10 17764691 CLIP 1
11 8037442 FILTER SUPPORT 1
12 17765791 CLIP 1
13 8015133 PIPE SOCKET 1
14 8015315 PIPE SOCKET 1
15 8031959 RUBBER SLEEVE 1
16 8037101 RUBBER SLEEVE 1
17 17764591 CLIP 1

Applies to engines

Engine Family
C78ENTE60.00 CURSOR 8 - TIER 2 view
CURSOR78TE2.A001 CURSOR 8 - TIER 2 view
CURSOR78TE2.A002 CURSOR 8 - TIER 2 view
CURSOR78TE2.A850 CURSOR 8 - TIER 2 view
GECURSOR250E.R990 GECURSOR 8 - TIER 2 view
C78ENTE60.10 CURSOR 8 - TIER 2 view
GECURSOR250E.1R990 GECURSOR 8 - TIER 2 view
CURSOR78TE2.1A001 CURSOR 8 - TIER 2 view
CURSOR78TE2.1A002 CURSOR 8 - TIER 2 view
CURSOR78TE2.1A559 CURSOR 8 - TIER 2 view
GECURSOR250E.1A551 GECURSOR 8 - TIER 2 view
GECURSOR250E.1A71M GECURSOR 8 - TIER 2 view
GECURSOR250ES.R990 GECURSOR 8 - 2002/88/CE view
GECURSOR250ES.A001 GECURSOR 8 - 2002/88/CE view
GECURSOR250ES.A551 GECURSOR 8 - 2002/88/CE view
GECURSOR250ES.A71M GECURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A001 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A002 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A559 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.S550 CURSOR 8 - 2002/88/CE view
