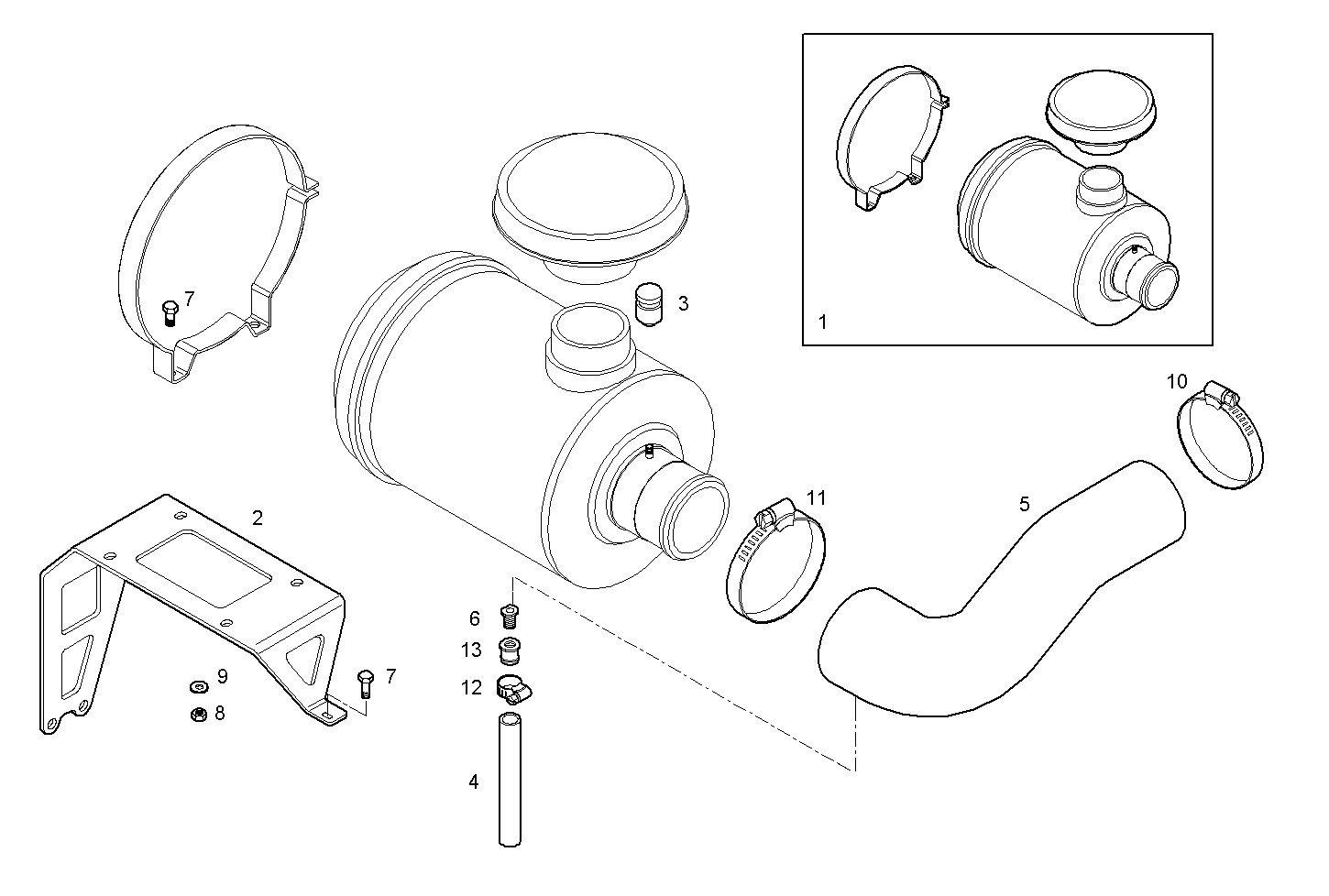

AIR CLEANER
Assembly ID: A21210515
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030338 | AIR CLEANER | 1 | ||
| 2 | 8038494 | FILTER SUPPORT | 1 | ||
| 3 | 8027294 | CHOCKED FILTER INDIC. | 1 | ||
| 4 | 8036392 | RUBBER SLEEVE | 1 | ||
| 5 | 8033678 | FILTER HOSE | 1 | ||
| 6 | 8015315 | PIPE SOCKET | 1 | ||
| 7 | 16607524 | HEXAGON BOLT | 4 | ||
| 8 | 17038131 | HEXAGON NUT | 4 | ||
| 9 | 17090174 | SPRING WASHER | 4 | ||
| 10 | 17765192 | HOSE CLIP | 1 | ||
| 11 | 17765391 | CLIP | 1 | ||
| 12 | 18088392 | CLIP | 2 | ||
| 13 | 8036882 | PIPE SOCKET | 1 | ||
| 14 | 16677735 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MSTD20.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50A800 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50A800 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD20.50A801 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTD22.50A801 | NEF 4 mechanic. - TIER 2 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A801 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX21.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| PUN45MSTX20.50A100 | NEF 4 mechanic. - TIER 3 | view |
